Limitorque WTR Series - 6 Parts Breakdown

WTR Series
Parts Breakdown
WTR Installation & Maintenance Manual 330-15000 • Revision A • August
6 Parts Breakdown

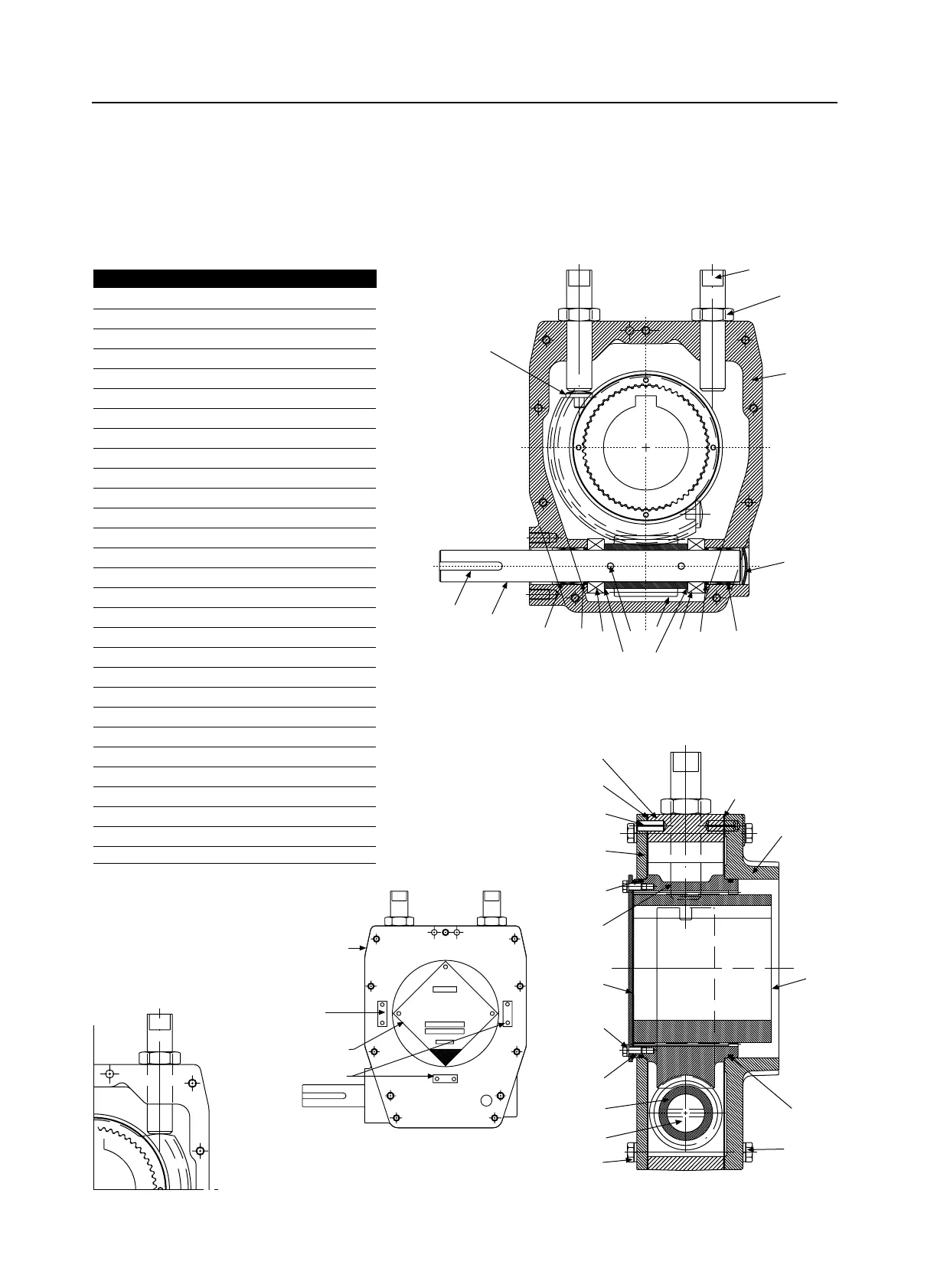

Figure 6.1 (1 of 2) – WTR with SGA parts breakdown (3 through 150)
6-1
Ductile iron
Assembly only
(No stop pins)
Piece Description Quantity
1 WTR Housing 1
2 WTR Housing Base 1
3 WTR Housing Cover 1
4 Drive Sleeve 1
5 Pointer Cap 1
6 Input Shaft 1
7 Worm 1
8 Spiral Pin 2
9 Thrust Bearing 2
10 Bushing 2
11 Key 1
12 Core Plug 1
13 Mechanical Stop Screw 2
14 Jam Nut 2
15 Hex Head Cap Screw A/R
16 Spring Washer A/R
18 Housing Gasket 2
19 Hex Head Cap Screw 4
20 Spring Washer 4
21 O-Ring 2
22 Pointer Gasket 1
23 Dowel Pin 5
24 Splined Adapter 1
25 O-Ring 2
26 Stop Pin (with bronze worm only) 2
28 Shim Washer 2
29 Label Kit 1
30 Nameplate 1
31 Drive Screw 4
15, 16
18
2
25
1
18
23
3
25
4
5
19, 20
22
6
24
15, 16
7
13
14
1
12
10 21
9
8
9
21
10
26
6
28
28
7
Use only with
Bronze gear
11
29
30, 31
Shown assy B (R/H)
Clockwise to close
Limitorque
J
Shut label
Location
Assy A (L/H)
Counter
Clockwise
To close
