Precautions:
Thermal protection:
OBF only
The CB is equipped with a thermal protection to avoid thermal overload of the FET transistors used to control the acuators.
When triggering the thermal protection all movement of the actuators will stop and the buzzer will sound for 5 seconds constantly. The 5 second
alarm will be reinitiated each time the hand control / ACP or similar is activated until the CB is cooled down enough to allow a movement again
The thermal monitoring system monitors a temperature rise and not an absolute temperature. The monitoring system has been designed to operate
up to an ambient temperature of 40 degrees. If the CB is exposed to a temperature higher than 40 degrees for several hours while powered it will
adapt to this temperature. In this case there is a risk of damaging the FET transistors without triggering the thermal protection.
At first power up, after programming a new SW into the CB, the ‘temperature reference value’, used by the thermal monitoring system, will be
automatically initialized. If this is done in a cold area the temperature reference value will be set accordingly and a too early temperature warning
could occur (warning signal is temperature hoot = constant beep)!
After the first power up, the temperature reference value will adapt over time to the surrounding temperature and the adaptation routine happens
every 5 hours (provided the CB is unused and connected to mains). The 5 hour counter (used by the temperature adaptation routine) will be
reinitiated every time a hand control / control panel is activated.
We therefore recommend that the CB is resting for min. 5 hours to adapt temperature wise to a ‘normal operating’ temperature, i.e. in the
environment for intended use.
CB6S is part of the LINAK OpenBus™ product range - that provides more flexible solutions no
matter which actuator concept is preferred.
5. CB6S (MEDLINE
®
CARELINE
®
)
Mounting of CB6S – article no. 9271233
Apart from LA27 and LA40, it is not possible to mount CB6S onto LINAK actuators. In such case you need a CB6 mounting bracket which can be
welded or likewise to the application.

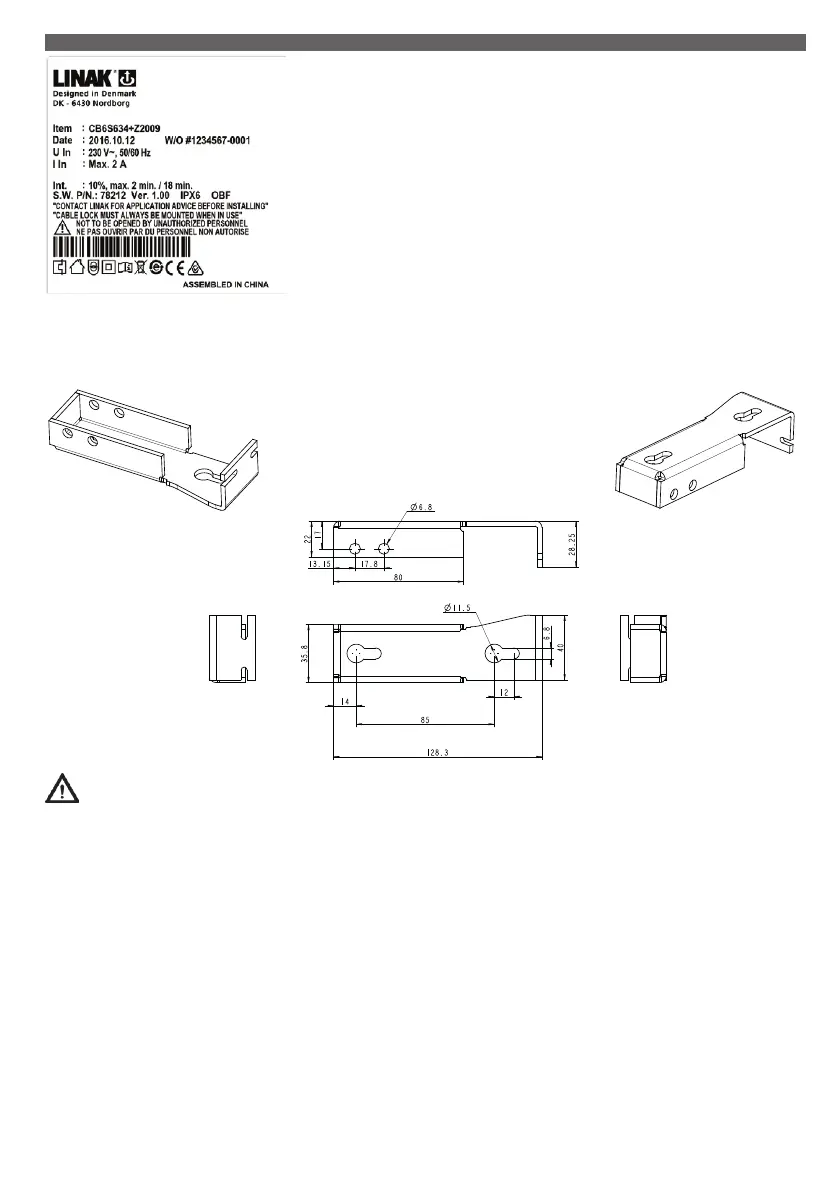

This bracket is shown below:
14
85
128.3
35.8
40
22
28.25
80
11.5
6.8
12
6.8
17
13.15 17.8
