The massage motor can be added to all kinds of couches and tables, chairs or
beds for treatment and examination. It enables comfort, relaxation and tension
release for patients and clients. The massage motors are directly connected to the
actuator port at the control box – no extra wiring at the application, simple and
easy mounting.
Usage:
• Compatibility: CB6S OBMe, CB16 OBF, (CB20 pending) MJB006-0x to be used for OpenBus™ impulse drive
• Duty cycle: 10 %, 30 min. max.
• Operating temperature: + 5 °C to + 40 °C
• Storage temperature: - 10 °C to + 50 °C
• Relative humidity: 20 % to 80 % at +30°C
• Atmospheric pressure: 700 to 1060 hPa
• Approvals: Medical approvals to be determined

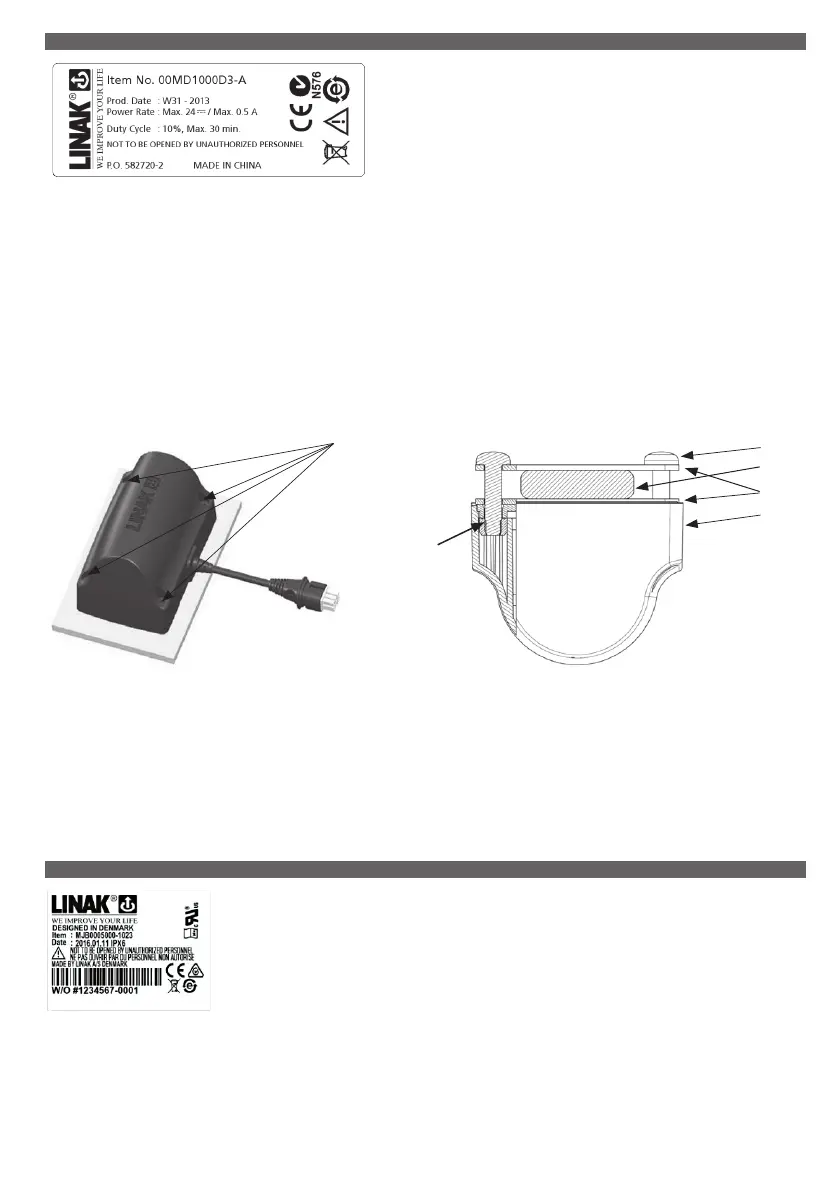

8. Massage Motor Medical (MEDLINE
®
CARELINE
®
)
Is mounted
with 4 screws
Mounting:
Massage motor on a plate
Mounting of the screw with max. torque 2 Nm
Mounting of massage motor by using brackets:
Screw
Slat
Bracket
Massage
motor
Nut
The massage unit is mounted with 4 x M6 roundheaded machine screws with flat underside. 15 to 20 mm long + the thickness of the bracket.
Torque max. 2-3 Nm.
2 brackets must be used - one on each side of the slat.
9. MJB (MEDLINE
®
CARELINE
®
)
The MJB (Modular Junction Box) is designed for use together with OpenBus
TM
control boxes.
The MJB makes it possible to connect multiple hand controls, attendant controls or it is also possible to use the
MJB as a control unit for 3
rd
party products such as Out of Bed Detection, USB charger, Under Bed Light etc.
To Next Page
