The HB30 hand control is designed for better user experience and ergonomic ﬁt for the hands

of caregivers. The compact size ensures one hand operation. The HB30 is especially suitable

for patient lifts and other MEDLINE

and CARELINE

applications like couches, tables and

chairs for treatment and examination. The HB30 is available in an analogue version and an

OpenBus™ version.

Usage:

• Usage temperature: 5 °C to 40 °C

• Storage temperature: -10 °C to +50 °C

• Compatibility: Analogue JUMBO Systems

Analogue JUMBO systems with diode and OpenBus

JUMBO versions

All OpenBus

control boxes

• Approvals: IEC60601-1:2005 3

edition approved,

ANSI / AAMI ES60601-1:2005 3

edition and CAN/CSA-22.2 No 60601-1:2008

The HB30 is biocompatibility tested and approved according to DS/EN ISO 10993-5:2009, biological evaluation of

medical devices - part 5: Tests for in vitro cytotoxicity. It is a demand for hand-held devices for patient lifts.

The HB30 has a compact design and therefore it cannot be approved according to EN IEC60601-2-52

(Application Environment 4 for care beds used in Domestic areas (or EN1970)).

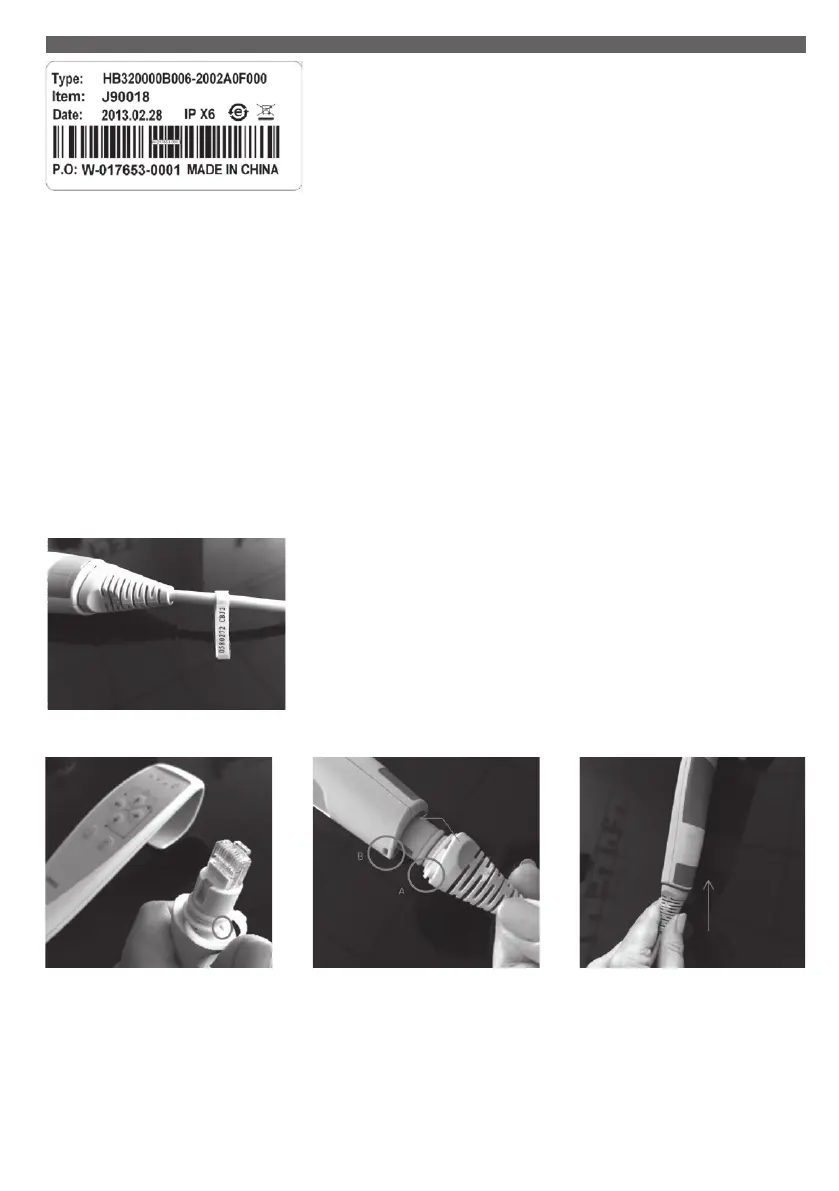

How to identify the cables:

Each cable has a label for easy identiﬁcation of item number and for which control box it is intended.

15. HB30 (MEDLINE

CARELINE

)

How to mount a cable:

Step 1:

Mount the cable lock and ﬁx it to the slot

marked in the picture.

Step 2:

Fix the cable tab on the hand control’s front

side ﬁrst. Push in and twist a bit to ﬁx the tab

(see picture ﬁt A into B).

Step 3:

Fix the tab on the back as well by pushing.
