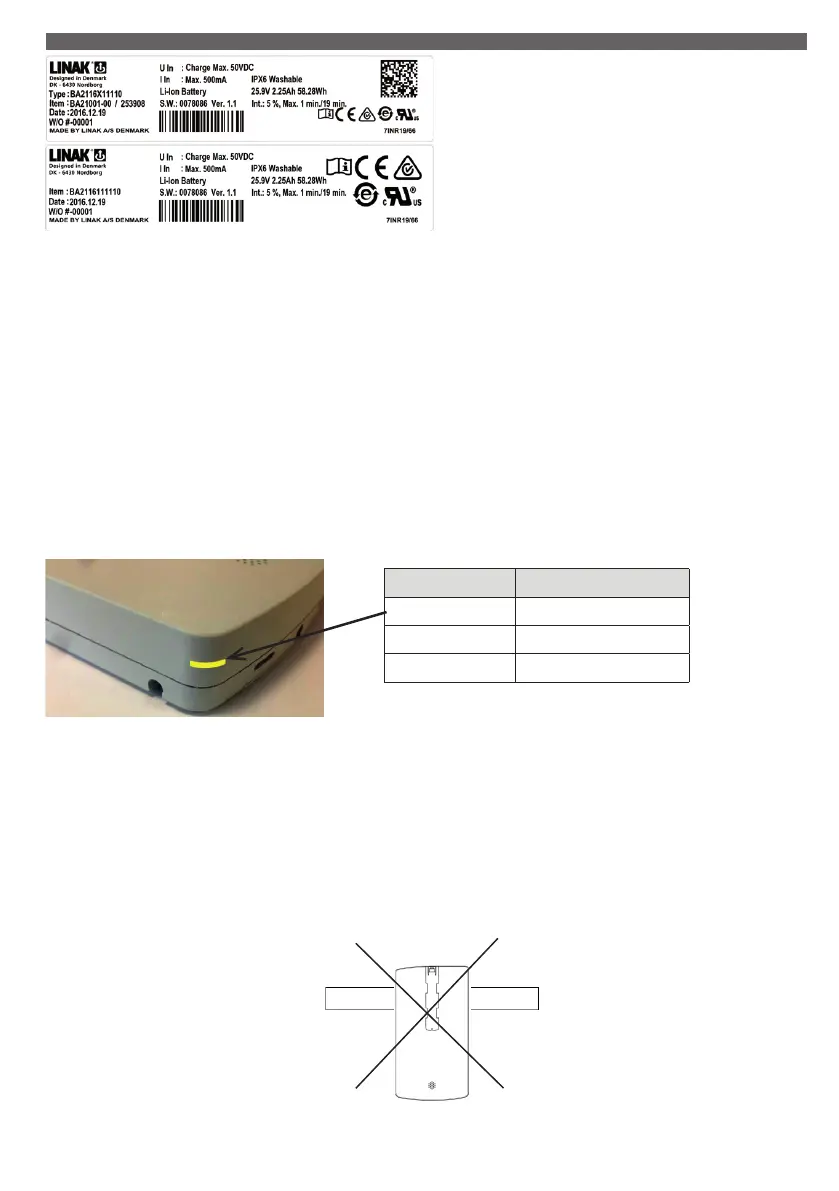

Page 172 of 192
The BA21 Li-Ion back-up battery pack has been specially developed
for use with the new control boxes COxx and CAxx, e.g. CO61 and
CA40, etc. It is a low weight battery with built-in charger and high
performance and safety.
Features and Options
Weight: 0.7 kg
Housing colour: Light grey (RAL 7035)
Protection class: IPX6 Washable
Packaging: Every battery is packed individually and is fitted with
lithium caution (transportation requirement)
Classification: Internally powered
3. BA21 Li-Ion (MEDLINE
®
CARELINE
®
)
Usage:
• Compatibility: Battery back-up for COxx and CAxx
• Duty cycle: 5 %, 1 minute continuous use followed by 19 minutes not in use
• Charging: With integrated charger in battery
• Charging time: Approx. 10 hours
• Recharging during storage: First recharge of the battery must be no later than 12 months after production date stated on the label.
Hereafter the battery must be recharged at least every 12 months.
• Operating temperature: + 5 °C to + 30 °C
• Storage temperature: - 10 °C to + 40 °C (+ 10 °C to + 25 °C recommended)
The batteries must be stored in an applicable storage room without direct sunlight.
• Relative humidity: 20 % RH to 80 % RH, non-condensing
• Atmospheric pressure: 700 to 1060 hPa
• Approvals: IEC60601-1, ANSI/AAMI ES60601-1, CAN/CSA-22.2 No 60601-1, IEC62133, UL2054,
UN38.3 (needed for transport of lithium batteries)
LED functionality:
LED Indication of operation
Solid yellow Charging
No LED light Fully charged
Flashing yellow Error during charging
Buzzer functionality:
The buzzer will make a warning when a button on the hand control is pressed and the battery capacity is low. The buzzer can also be activated by
the control box to signal other conditions. This must be specified in the control box software.
Mounting instructions:
The Battery Pack BA21 can be mounted in several ways on the bed/the application, either separately or together with the control box CO61.
It is however not allowed to mount the battery in vertical position with the mounting clip pointing upwards - see illustration :
