Recommendations:
• Do not exceed the storage temperature as it will shorten the product life and reduce performance.
• Allow the battery to settle to room temperature before use.
• Do not exceed the duty cycle 2/18 as it will shorten the life, reduce performance, and eventually activate overcurrent protection.
• BA19 is not intended for use in outdoor applications.
• If the battery is completely discharged, then recharge the battery before storage.
Safety feature
• BA19 contains overcurrent protection for safety and to protect itself from being damaged due to excessive use.
• When current protection is activated no power output will be available
Warnings
• Loss of power might happen due to activation of overcurrent protection. In this event, there may be no warning and the application may not be
able to move when expected.
• Defective or damaged batteries may leak acid and adequate precautions must be taken during handling and transportation.
• Do not open the battery case as damage to the cell or circuitry may develop excessive heat.
• It is important for users to read the guidelines in the “User Manual Linear Actuators and Electronics”.
• Do not short circuit the battery.
• Use the specified charger only.
• If disposed to fire, the battery may explode.
If product caution is not clearly visible on the final application at low light intensity, the above mentioned warnings must be integrated in the
application manufacturer manual.
The application manufacturer must test the application and ensure that neither intended nor unintended use exceeds the battery specification. The
application manufacturer must assure other means of movement, e.g. quick release or manual lowering in case of battery failure.
Compatibility:
The BA19 has a built-in charger and is therefore not able to operate with control boxes with charger. Be aware that the BA19 is only
compatible with CA30, CA40 and CO61.

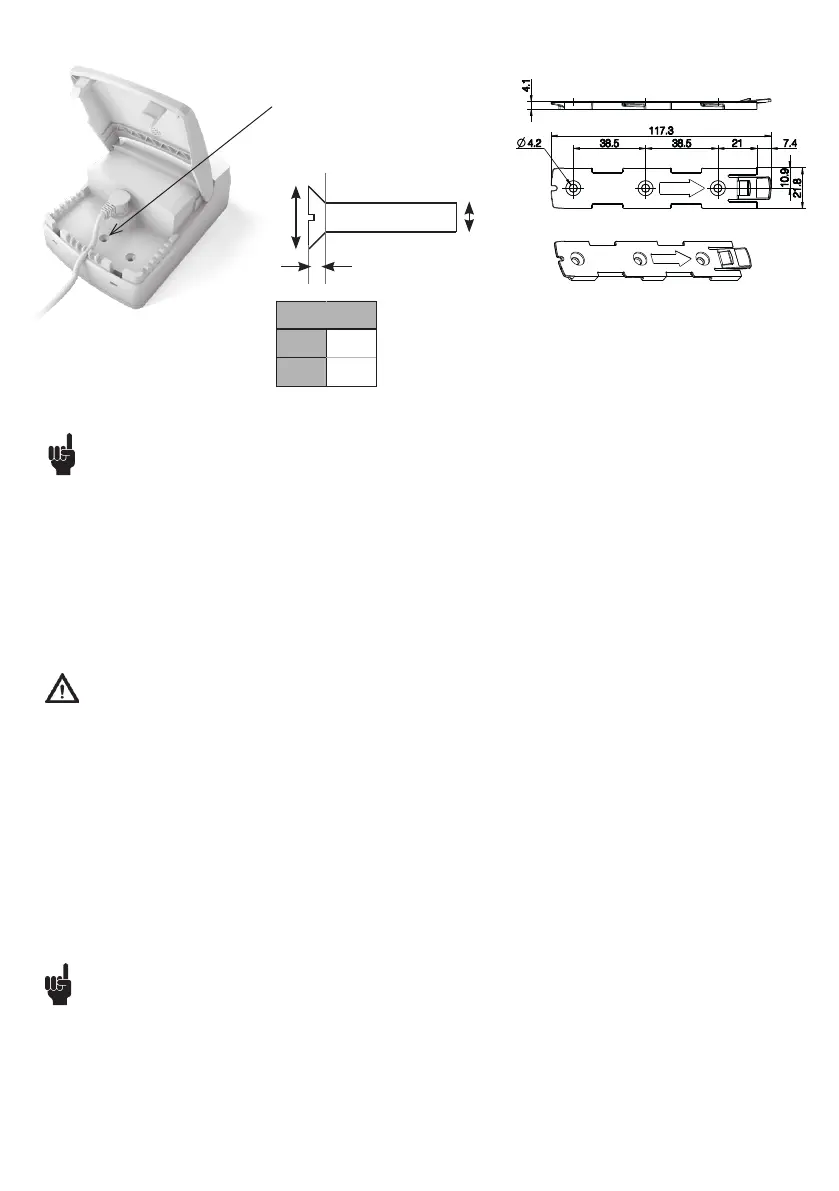

Mounting bracket (frame flat) - article no. 1015W1001: Mounting instructions:
BA19 must be mounted with attachment
screw and mounting bracket (see below)
due to the battery weight.
Screw M4 countersunk torque
1.1 Nm +/- 0.1 Nm.
d M4
d
k
8.4
k 2.7
According to ISO 2009
d
k
d
k
45°
