CB9 is equipped with a green LED for indication of mains power connected.
• When the CB9 is connected to mains, the LED is green.
• Connected only to battery, the LED is off.
The cables are locked in position with a locking mechanism.
CB9 can be mounted and fixed together with LA31 with one screw.

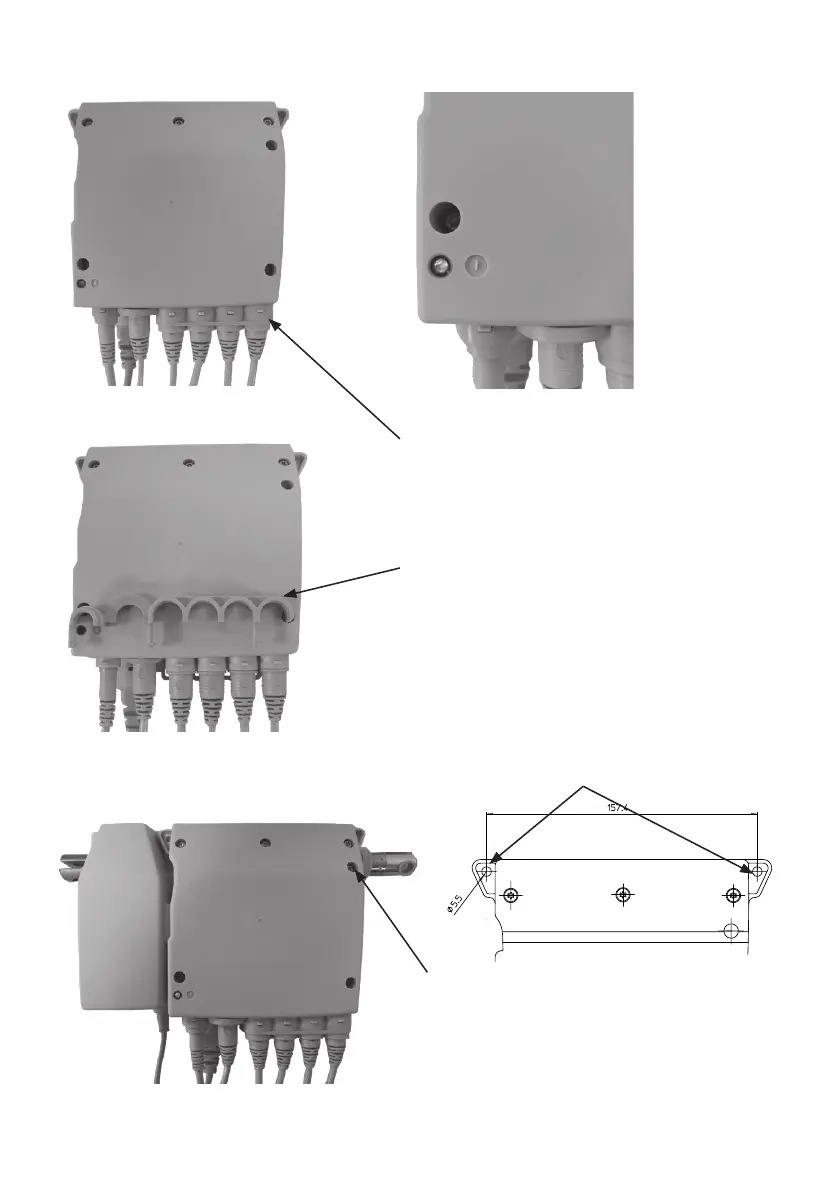

The locking mechanism is shown here (not in position)
CB9 mounted on actuator, LA31.
CB9 for mounting on application.
Shows the two holes used for mounting
Screw used for mounting
