Page 35 of 192
The item numbers for ordering the Cable Lock are:
• Item number: 0231007 (light grey) for one cable lock (1 piece).
• Item number: 0231037 (black) for one cable lock (1 piece).

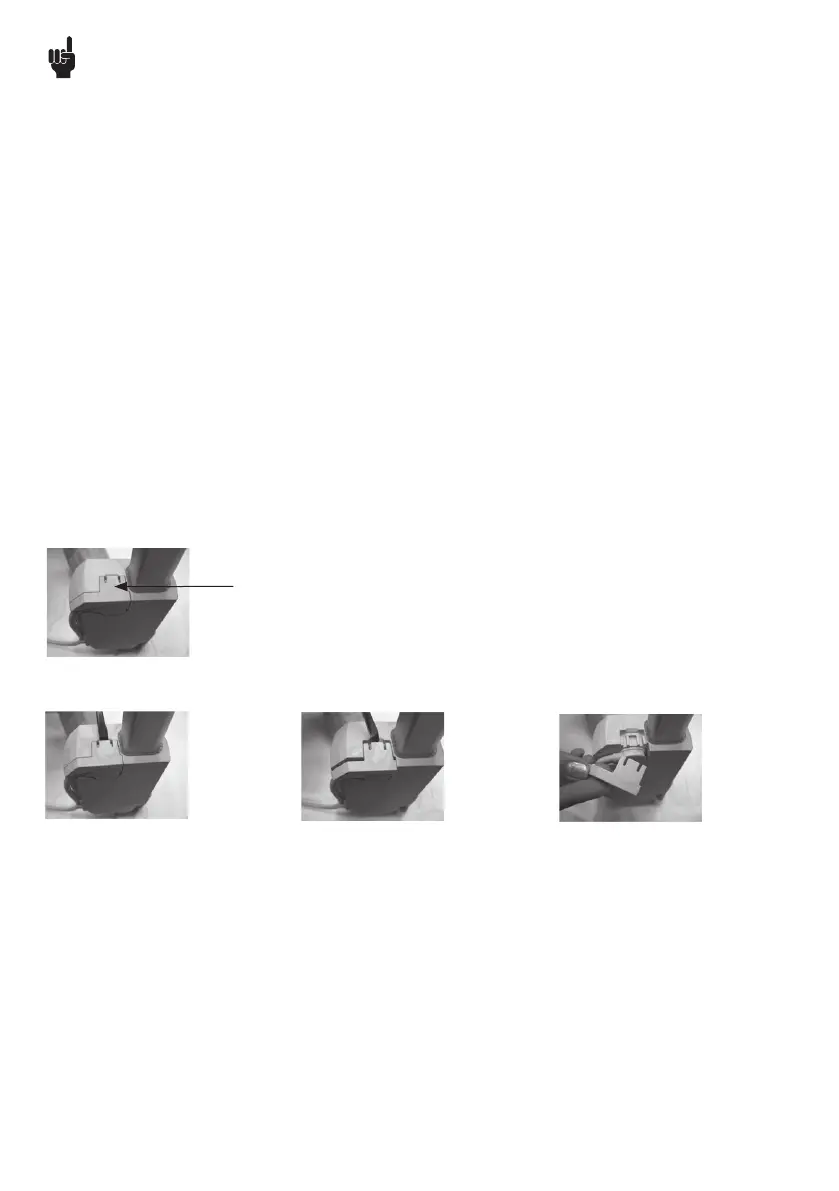

Below you see an instruction in how to mount and remove the cable lock from LA23.
a) Mount a cable lock:
Push down until the cable lock clicks into place.
Step 1:
Insert e.g. a
screwdriver at
a 45 °C angle
as illustrated.
Step 2:
Turn the screw-
driver to release
the cable lock.
Step 3:
Now the cable
lock can be
removed by hand.
b) Cable lock removal
Note: When a cable lock has been removed, it is recommended to replace it with a new.
Recommendations
• Do not place load on the actuator housing and do prevent impact or blows, or any other form of stress to the housing.
• Ensure that the cable lock is mounted correct.
• Ensure that the duty cycle and the usage temperatures for LA23 actuators is respected
• Ensure that the cable cannot be squeezed, pulled or subjected to any other stress.
• The LA23 is not suitable for use in outdoor applications where it can be exposed to sun and rain.
If outdoor use cannot be avoided, it is very important that the LA23 is mounted in a position where it is well shielded. It is up to the customer to
provide the shielding.
Furthermore, it will be good practice to ensure that the actuator is fully retracted in the “normal” position. The reason is that there will be a
vacuum inside the actuator if it is extended which over time can lead to water entering the actuator.
• The B and G 24V motors must only be used with their respective control box types.
• Not acceptable: B motor with OpenBus™ control boxes!
Reason: The actuator will be too strong, it will run too fast, be noisy and only have a short lifetime. The actuator will not live up to what we promise.
• Not acceptable: G motor with 24V supply!
Reason: The actuator will be too weak, this means it will only run slowly, not be able to lift as much in the cold and under low current conditions.
The actuator will not live up to what we promise.
• If a cable lock has been removed it is recommended to check if it is has been damaged during removal. If so it is recommended to replace with a new one.
• Before mounting a cable, ensure that the cable, cable plug or o-ring is not damaged. If damage is observed, the cable must be replaced with a new one.
