Page 63 of 192

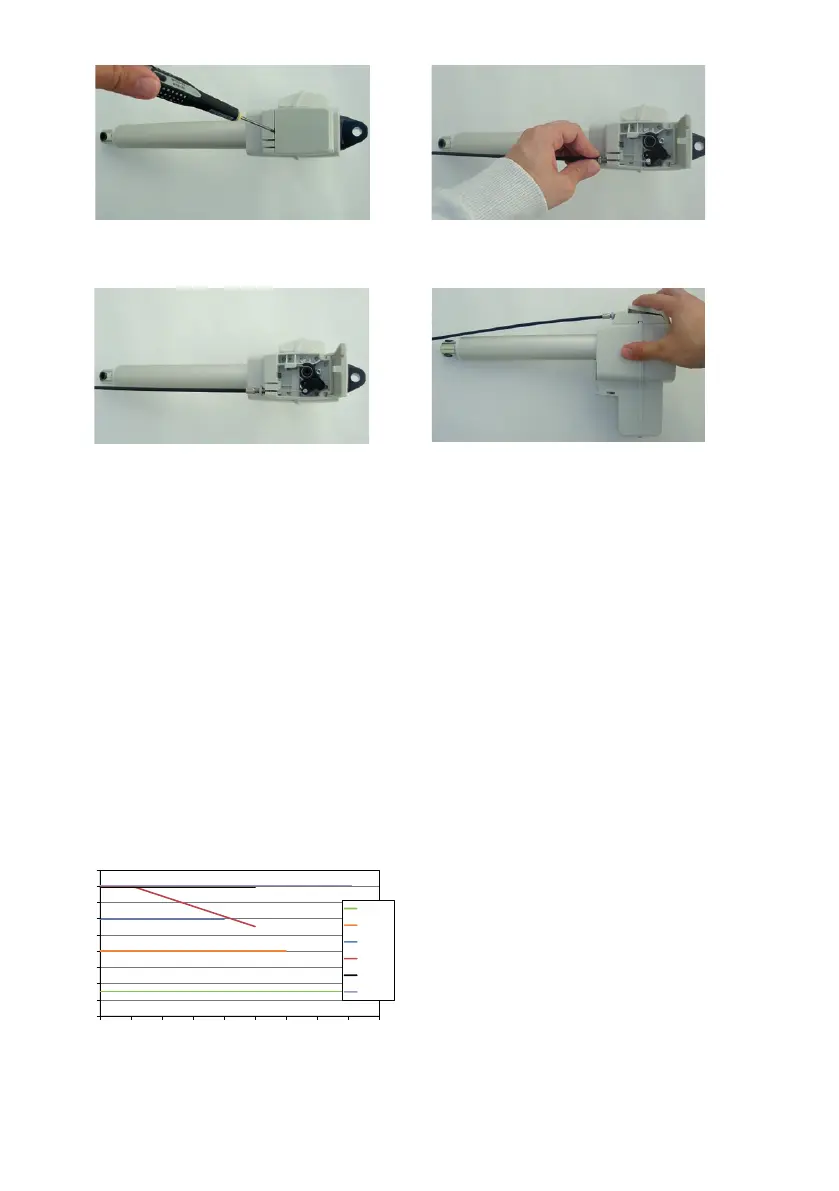

Mounting of the quick release cable:
Open the quick release lid using a flat-head screwdriver.
Push and twist in release hole.
Mount the cable in one of the assigned cable mounting
holes. For dual release grips, use both holes.
Place cable collar in groove.
Adjust the cable with nut and make sure that the quick
release is functional.
After closing the lid, the quick release is ready to be used.
Force required to operate the quick release is approximately:
- 35 N at 750 N load
- 60 N at 4000 N load
Travel of cable:
- travel until quick release approx. 15 mm
- maximum travel to endstop approx. 23 mm
The customer application design must ensure that the quick release cable cannot be pulled the full travel-to-end-stop with excessive pull force.
This is to protect the quick release unit.
When operating the quick release function, the quick release must be activated all the way down and not stopped halfway.
Load curves:
LA40 Standard, HP and PL:
0 kN
1 kN
2 kN
3 kN
4 kN
5 kN
6 kN
7 kN
8 kN
9 kN
0 50 100 150 200 250 300 350 400 450
Stroke Length [mm]
Load Chart
1500 N
4000 N
6000 N
8000 N
HP
PL
