LINAK mounting bracket part no.: 0673003-A
The reason why it is important only to fix one column is that the
columns will not move exactly in parallel – even if you have positioning
such as hall.
If more than one column is fixed, it can lead to dangerous situations.
If you have trend/antitrend function in your application you need to mount
one or more of the BL4s with a slider.
Having sliders prevents the column from bending like illustrated below.

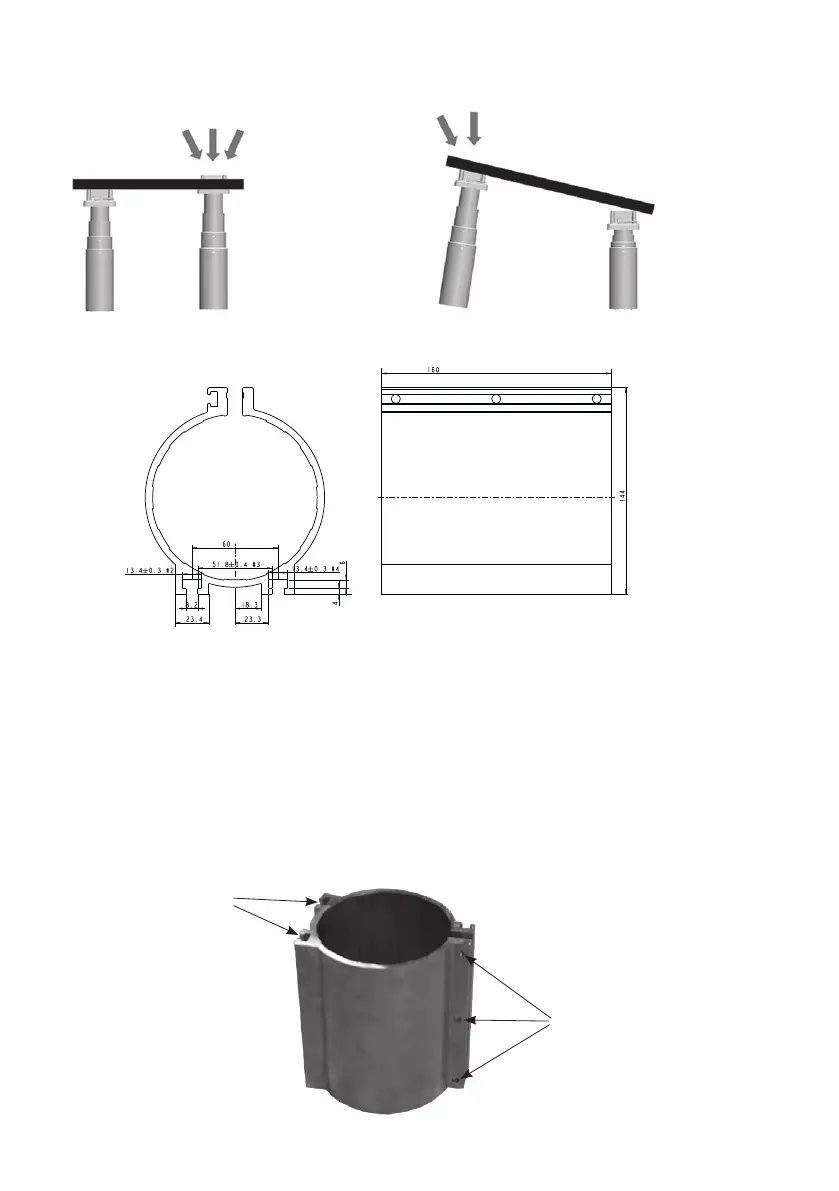

Mounting guidelines for the BL4 bracket, supplied by LINAK, part no. 0673003:
Mounting the bracket in the application:
• The bracket must be mounted to an even abutting plate in the application by using the 2 slits.
• In each slit at least 3 bolts must be mounted. Type M8 8.8.
• Tightening moment must be 22.7 - 26.1 Nm.
• The 3 bolts must be placed in the same height as the 3 holes.
Mounting of the BL4 into the bracket:
• The BL4 must be fi tted in the bracket after mounting the bracket to the application.
• 3 bolts and nuts must be mounted in the 3 holes. Type M6 8.8
• Tightening moment must be 10.3 ± 0.3 Nm
The mounting points must be re-tightened at least once a year with the above specified moments.
3 holes
2 slits
