Headrest
- -
-
Headrest
-
- -
Headrest
Footrest Headrest
-
Footrest
-
Headrest
-
Footrest Headrest
Footrest Extra function Headrest

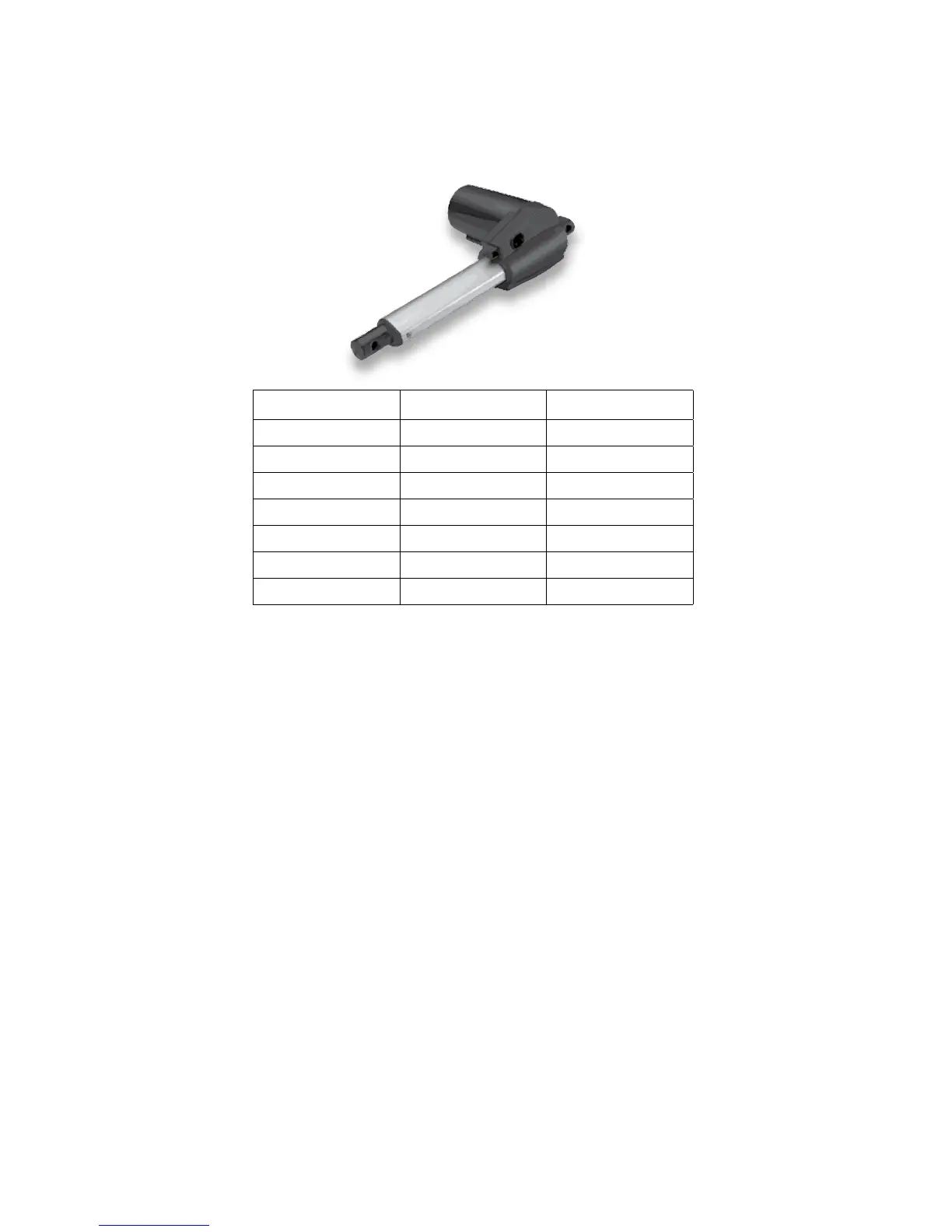

Connection of LA27 actuators:
The TD3 will as default detect and run the LA27 using plug and play rules as illustrated in the table below. The idea is that the
Headrest is the first actuator, the Footrest is the second actuator and then the Extra function. The Headrest is always the one
nearest to the Backend and the Footrest is always the one nearest to the Leg-end.
Start-up/initialisation of LA27 actuator:
After connection of the LA27, the system has to be initialised. Push down the button for the LA27, which has to be initialised.
When the sound from the LA27 stops, the system is initialised. If more than 1 actuator is connected, the same has to be done
with the other channels.
If 2 or 3 x LA27 actuators are connected to the TD3 and one of the LA27 actuators gets disconnected, the function of the HB
will change according to above scheme.
