Mounting instructions for the massage motor:

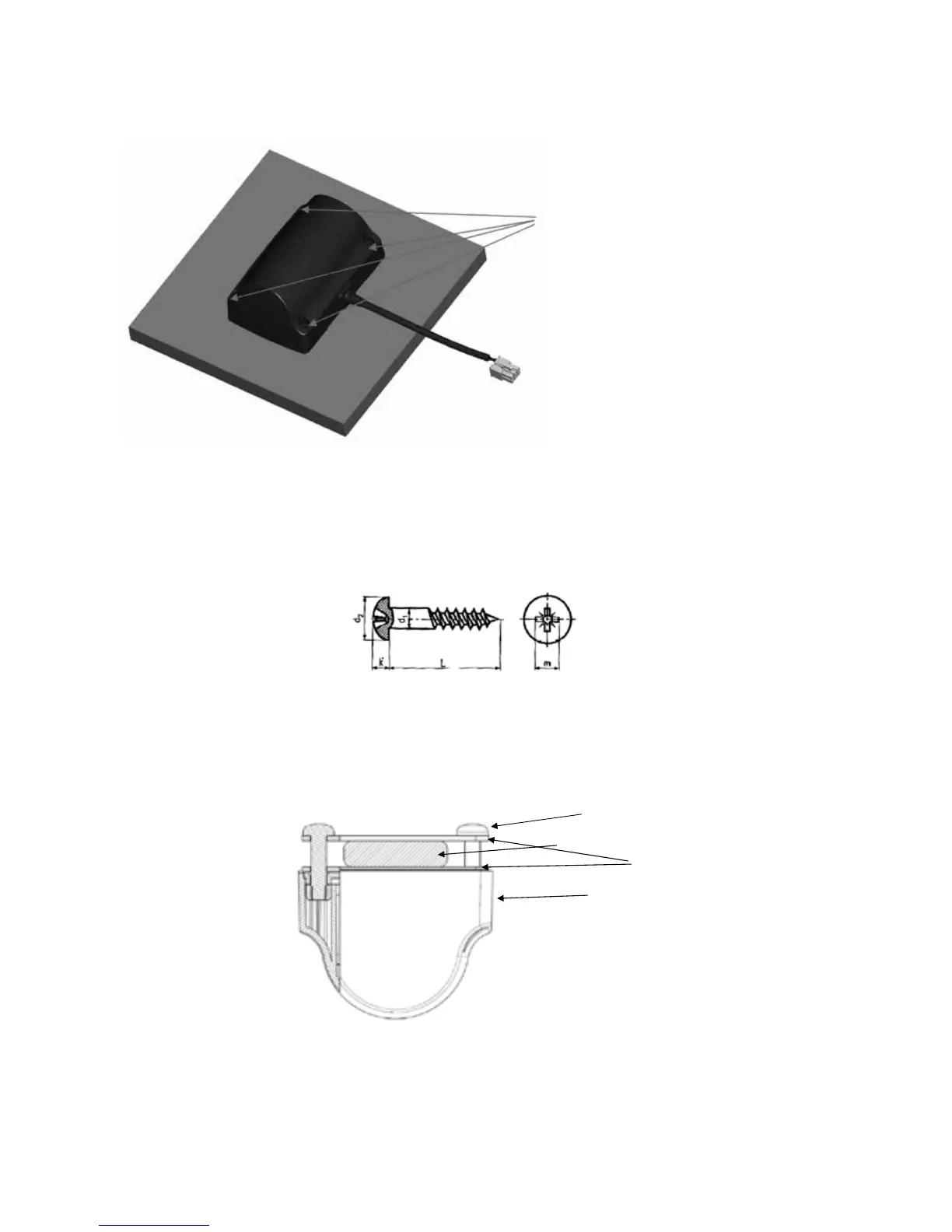

Mounting on plate:
Mounted with 4 screws
The massage unit is mounted with 4 x 4 mm round head wood screws with flat underside. The head must be 8 mm in diameter
and in length 19 mm + the thickness of the plate on which the massage motor is mounted. Torque max. 2 Nm + resistance in
the plate.
Massage Motor
Slat
Bracket
Screw
Mounting instructions for the massage motor by using brackets:
The massage unit is mounted with 4 x M6 round head machine screws with flat underside. 15 to 20 mm long + the thickness
of the bracket. Torque max. 2-3 Nm. 2 Brackets must be used – one on each side of the slat.
