Accessories:
The TD3 can handle different kinds of accessories. The main types are:
1. LED Lightbox: A light unit
2. DC Connector: Connection possibilities of units with DC plugs
3. USB Connector: Connection possibilities with units with USB plugs
4. Bluetooth2LIN with this box connected you can use your iPad, iPhone or iPadtouch as a handset
Cable for connection to the TD3 is a separate unit: 0617101, 205 mm long
1. LED Lightbox
Just connect the LED Lightbox to the TD3 system via the motor cable. The light can be turned on and off via the handset.
2. DC Connector
Connect the DC Connector to the TD3 system via the motor cable. Before use the system must be configured via the TD3
configurator to be able to handle the mounted DC unit. The TD3 configuratior is a PC software program. Connect your DC
unit with the DC Connector e.g. a LED light rail and the light can be turned on and off via the handset. As standard the TD3
can handle DC units using 12V. Units using other levels must be configured.
See system example
3. USB Connector
Connect the USB Connector to the TD3 system via the motor cable. Before use the system must be configured via the TD3
configurator to be able to handle the mounted USB unit. The TD3 configurator is a PC software program.
Via this unit you can connect a range of different accessories and gadgets with a USB plug, just as long as the device works
in accordance with the general USB charger standard (max. 5V and supply max. 0.5A).
Example of a USB unit could be an energy saving busbar to which a standard lamp can be connected. The lamp can then be
turned on and off via the handset, see example below.

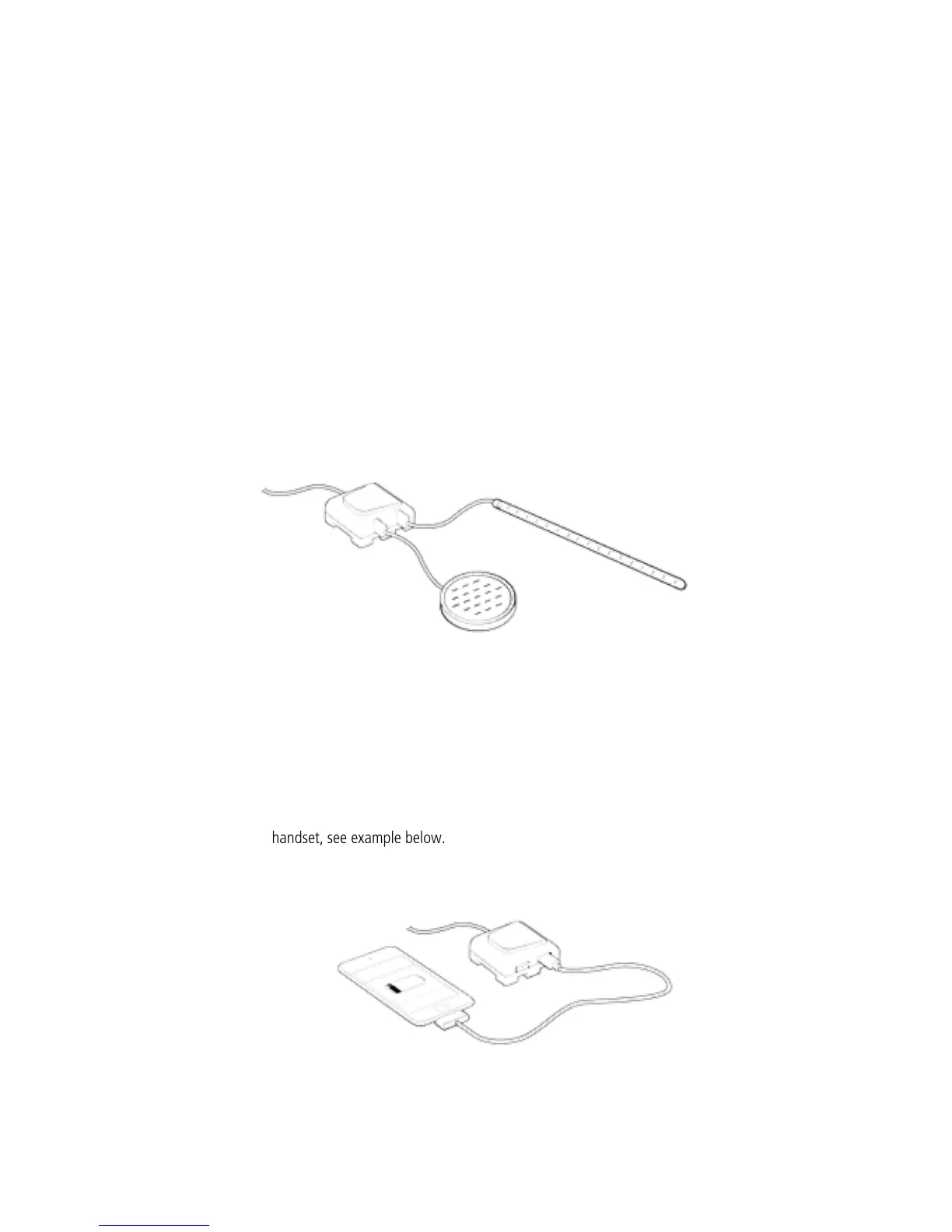

Connection to TD3
Mobile phone
Connection to TD3
LED light rail
LED lamp
4. See the separate instruction for connection and use
(http://catalog.linak.com/Linak/ENGLISH/USERMANUAL/HOMELINEBluetoothBedUserManualEng/)
To Next Page
