Page 10 of 40

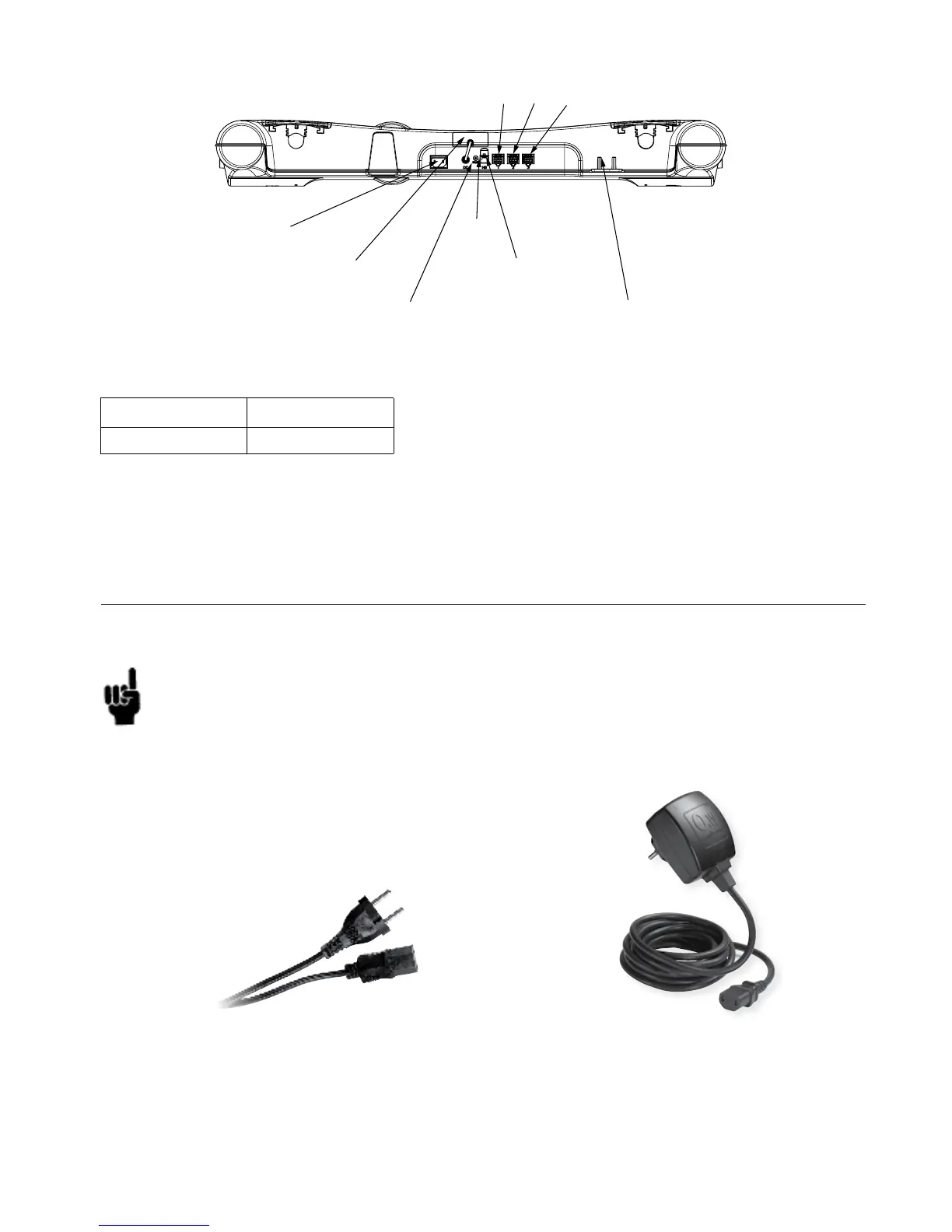

Mains inlet
Battery drawer
Battery cable/connection
Reset
Hand Control
connection
CH.1
CH.2
CH.3
Cable relief
Connections
CH1 CH2
Footrest Headrest
Connection of massage motors (TD32 series):
Connection CH1, CH2 and CH3 (TD33 series)
Massage motors (MD1)
LA27 actuators
Accessories (LED, DC Connector, USB Connector, Bluetooth2Lin)
Mains inlet
The mains cable can either be a standard computer power cable or a mains cable with mains cut-off. Both versions are
exchangeable. The mains cut-off mains cable ensures that the TD3 system has a very low standby power consumption
of only 0.1 W
Mains cables
WP0500
