Page Number - 3
Form 404031
N. Assemble pawl spring (237695) to pawl (237683) and car-
riage bolt (237739) and secure with locknut (51304).
0. Install Beraing (242725) into Outboard Bearing Assembly
(237784) and secure with Bearing Retainer (272169).
Attach completed Assembly to the Outboard Support
(237787) using screws (50016). HAND TIGHTEN ONLY AT
THIS POINT.
P. Assemble outside bearing
assembly and support to reel as-
sembly by sliding outboard axle through bearing. Align two
.406 mounting holes in both base and support and insert
one roll pin in each hole.
Q. Adjust/align outside bearing
assembly for free drum.
INSTALLATION
DELIVERY HOSE
DELIVERY HOSE INSTALLATION (MAXIMUM
SPRING TENSION)
For smoother operation during retraction and to increase hose
life, “detaic” hose by wiping entire hose length with a light lubri-
cating oil before installing on reel.
Assemble outlet adapter to hose and tighten securely. Use
teflon tape on threads to prevent leaks.
To prevent damaging hose connections and/or
components when pulling hose from reel, pull on the hose
itself and not on the control valve or swivel. Do not pull or
jerk on the hose when fully withdrawn from the reel.

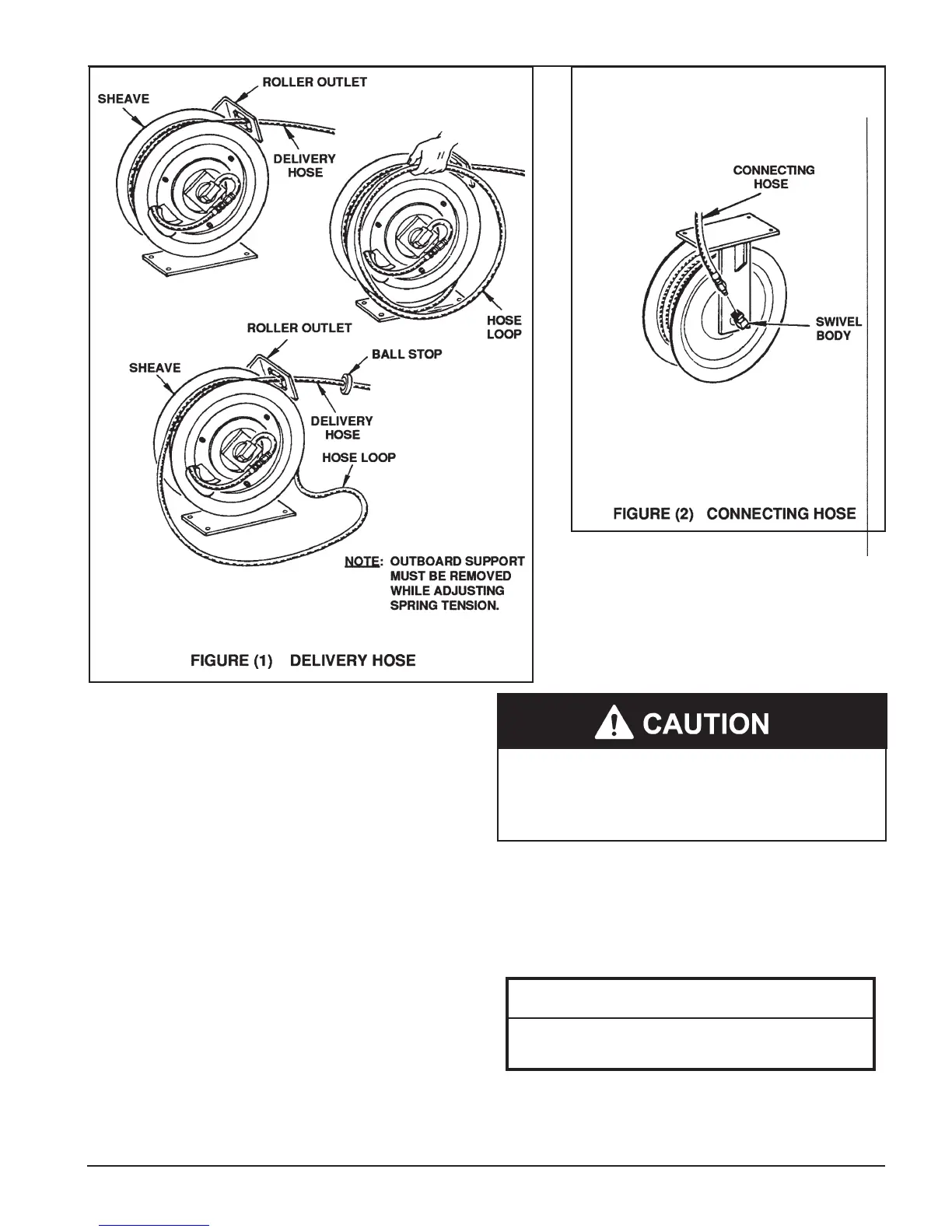

See Figure (1). Insert hose end with outlet adapter
through roller outlet and secure to axle head with
U-keeper. Make sure seal is installed correctly in axle
before assembling.
From open side of reel (with outside support removed), loop
entire length of hose onto reel in a clockwise direction. Pull hose
out through roller outlet to wind power spring. When hose is
completely extended, latch reel to prevent it from unwinding.
Continue to add loops of hose and pull out
hose until power spring winds tight.
IMPORTANT
INSTRUCTIONS
Perform the following instructions as stated to
correctly set the power spring for maximum tension.
Allow reel to retract two full revolutions and latch
reel. Carefully unloop remaining hose from reel.
