Grease Line Guarding (continued)

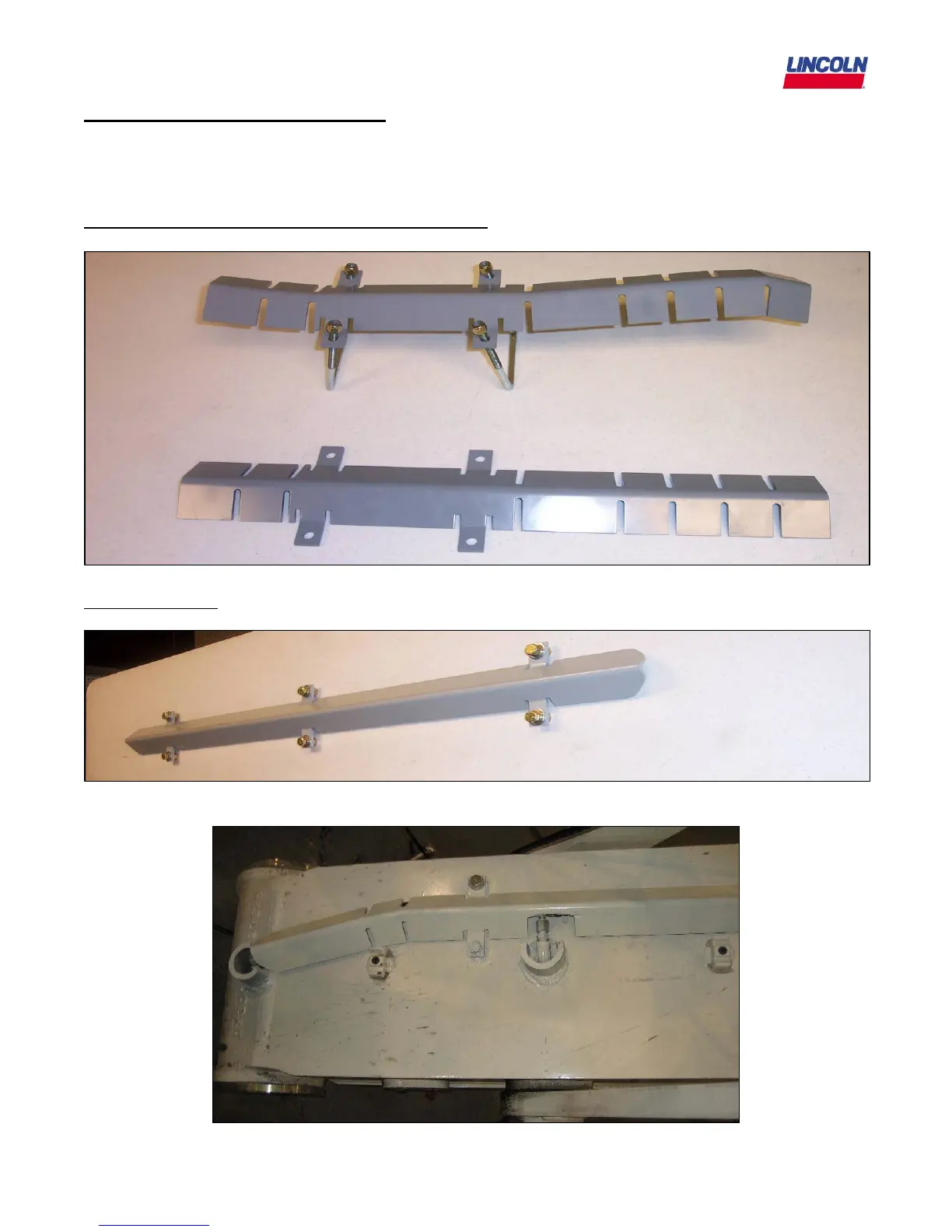

The following is another type of guarding that is used to protect lube lines on heavy
construction equipment. It is attached to the frame using welded studs or stand-offs.
Guarding that can be bent to fit around obstacles
Straight Guarding
Guarding shown used on an excavator to protect lube lines in heavy use areas.
