System Operation (Non-Monitored System)
The key components of the Quicklub Non-Monitored system are:
1. Pump with an Integrated Timer. The Integrated timer controls the “On Time” and “Off Time”
of the pump.
2. Divider valve network consisting of a Primary Valve and Secondary Valves with attached Cycle
Indicator Pin.
3. A lubrication event is initiated by actuating the pump via the Integrated Timer based on a
preset “pause time” or time between lubrication events.
4. The Pump dispenses lubricant to the primary divider valve.
5. The Primary Valve distributes the lubricant to the secondary valves.
6. The Secondary Valves distribute and dispense lubricant to the lubrication points.
7. Lubricant flow through the divider valves actuates the Cycle Indicator Pin for a visual
inspection of proper operation.
8. The pump will run for the preset On-Time
9. The controller now begins countdown for the next lubrication event.
2/13/09
6

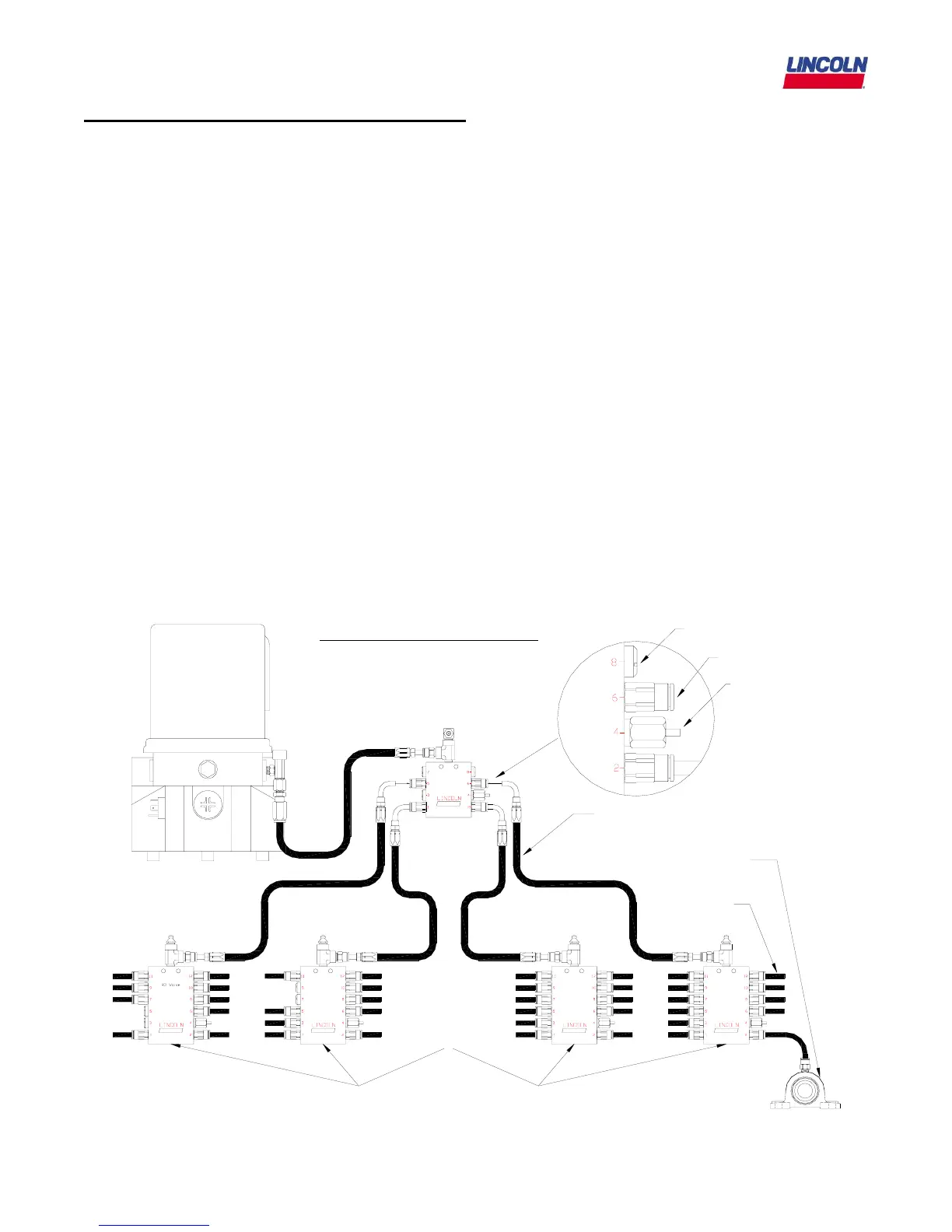

Non-Monitored System
Secondary
Divider
Valves
Primary
Divider
Valve
Pump
Tubing
Lube Point
Hose
Outlet Fitting
Closure Plug
Cycle Indicator Pin
