Change the oil in wheel drive
ATTENTION
Follow the precautions for handling fluids and
lubricants.
- Operate the truck until the wheel drives are warm.

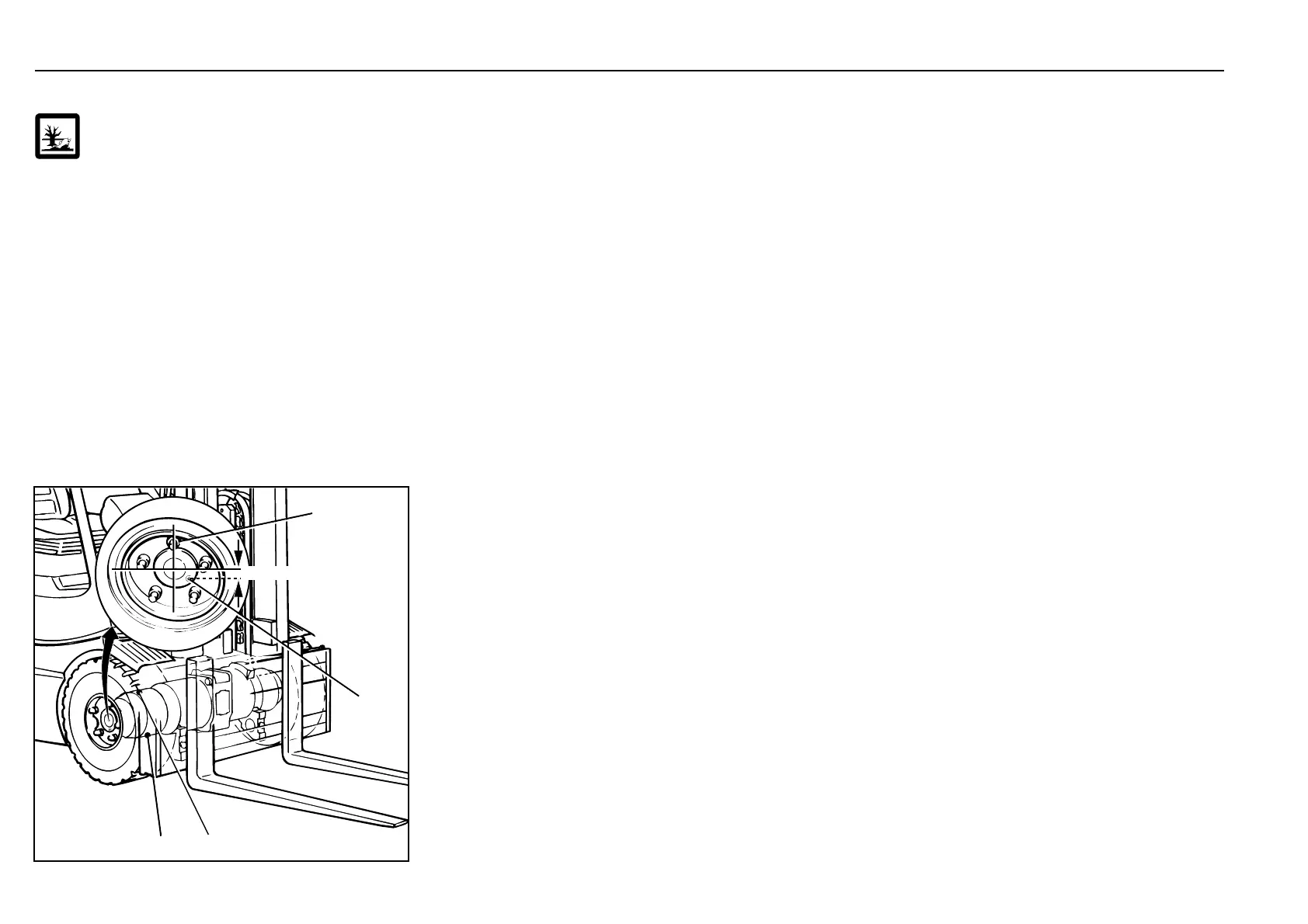

- Park the truck so that wheel nut (4) is at the top.
The level plug (1) is approx. 14 mm below the imagined
horizontal line.
- Remove the wheel (see front wheel change).
- Clean the area around the filler, drain and level plugs.
- Position an oil catch tray under drain plug (3).
- Remove the level plug (1), filler plug (2) and drain plug (3)
and drain the gear oil completely.
- Clean the magnetic plug on the drain plug (3).
- Refit and tighten the drain plug (3)(Torque 20 Nm) with
magnetic plug.
- Fill 450 cc gear oil in each gear drive through the level plug
opening (2) and wait at least 5 minutes.
- Check if the oil level reaches the level plug opening (1).
- Refit and tighten the level and filler plugs.
- Mount the wheel.
- Change the oil in the other wheel drive.
Inspection and maintenance every 3000 hours or every 2 years Maintenance
