Linde HPR-2 - Torque transmission. Mounting flange; Mounting flange dimensions and torque

13

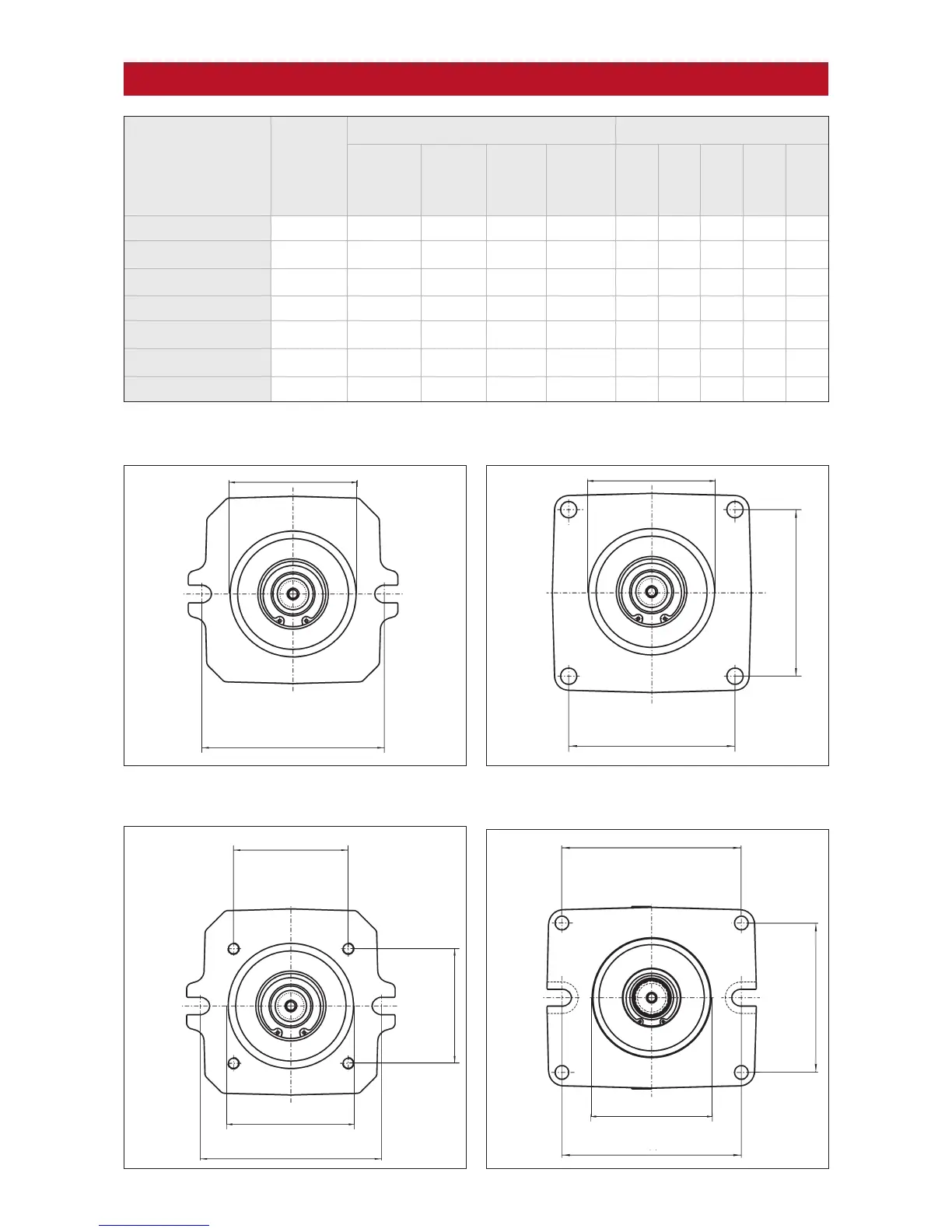

Torque transmission. Mounting flange
4-hole flange
2-hole flange with 4 additional bolt holes
2-hole flange with 4 additional threaded
holes
2-hole flange
Mounting flange
in accordance with SAE J744
For rated
size
Mounting Dimensions
Washer Screw
Torque
(8.8)
[Nm]
Torque
(10.9)*
[Nm]
K
[mm]
D
[mm]
H
[mm]
V
[mm]
G
[mm]
SAE C, 2 hole 55, 75, 105 17x33x10 M16 195 275 181.0 127 - - -
SAE C, 2 hole
with 4 additional threads M12
105 17x33x10 M16 195 275 181.0 127 - - 114
SAE C, 2 hole
with 4 additional holes (d=10.5 mm)
105D 17x33x10 M16 195 275 181.0 127 178 178 -
SAE D, 2 hole 135 21x37x8 M20 385 540 228.6 152.4 - - -
SAE D, 2 hole
with 4 additional threads M16
135 21x37x8 M20 385 540 228.6 152.4 - - 138
SAE D 2 hole
with additional bolt holes (d=17.5 mm)
165 & 165D 21x37x8 M20 385 540 228.6 152.4 230 190 -
SAE E, 4 hole 210 & 280 - M20 385 540 224.5 165.1 - - -
*) Option for standard design, necessary for tandem units
