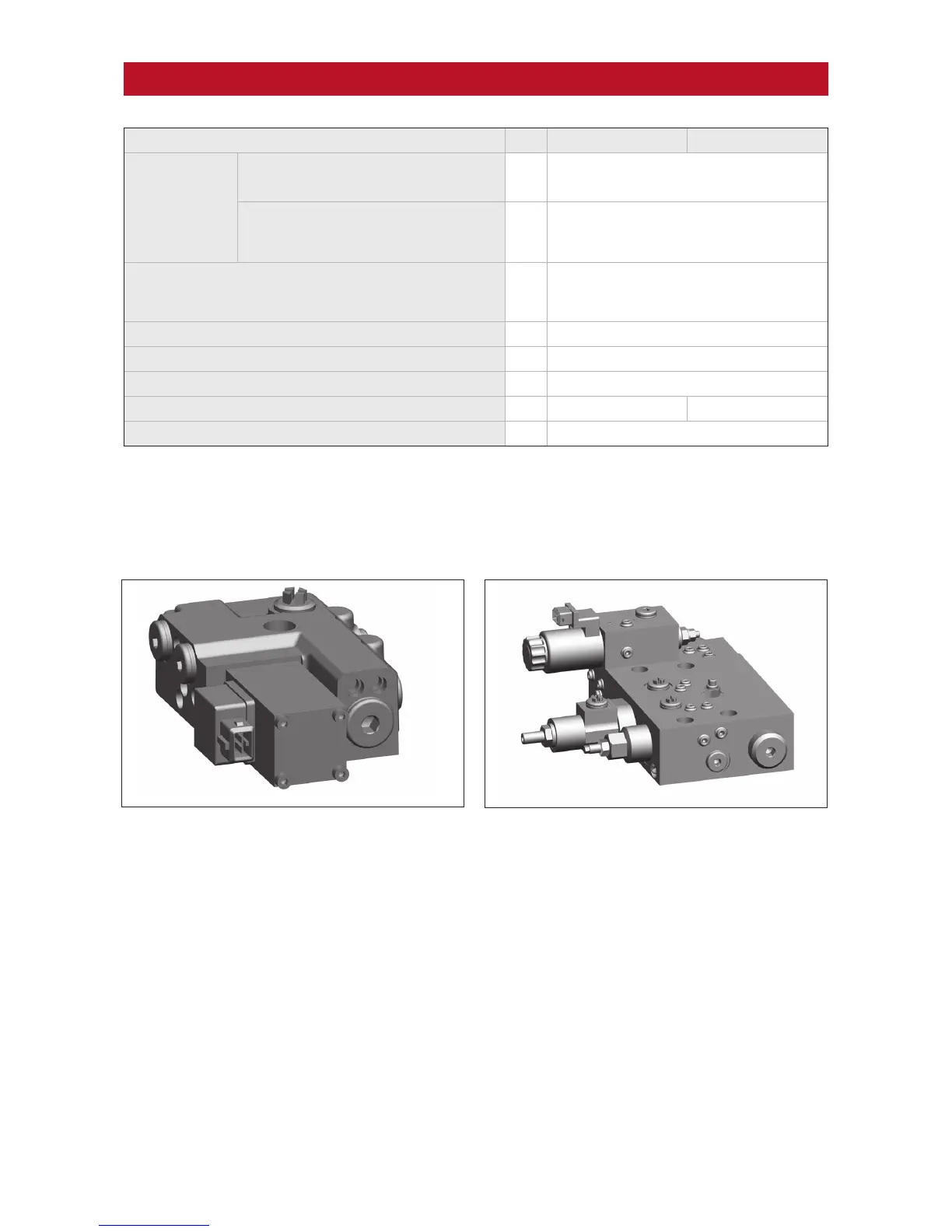

Controllers. Electrical properties
Supply voltage = limiting voltage V 12 24
Control types
Digital control via Pulse Width Modulation
PWM
100 Hz rectangle,
pulse duty ratio variable over
control range
Analogue
Direct current with dither overlay (dither
frequency nom. 35 Hz, duty cycle 1:1).
Further details on request
Connector type
DIN EN 175301-803,
Deutsch, AMP Junior Timer (2-pin)
Protection class IP54 (DIN), IP67 (Deutsch), IP6K6K (AMP)
Voltage type Direct Current (DC)
Power consumption W 15.6
Rated current = limiting current mA 600 300
Relative duty cycle % 100
E1L-controller.
Rectangular solenoid and AMP-connector
ETP-controller.
Tubular solenoid and AMP-connector
Further details on request
