Linde HPR-2 - Multiple Pumps

To Next Page

To Previous Page

Multiple pumps are created by connecting individual pump units in series, with the pumps arranged by capacity. Positioning the

gear pump(s) at the end of the tandem ensures optimum space utilisation, output allocation and load distribution. The following

table is based on the attached gear pump acting as a pilot pressure pump for the control circuit.

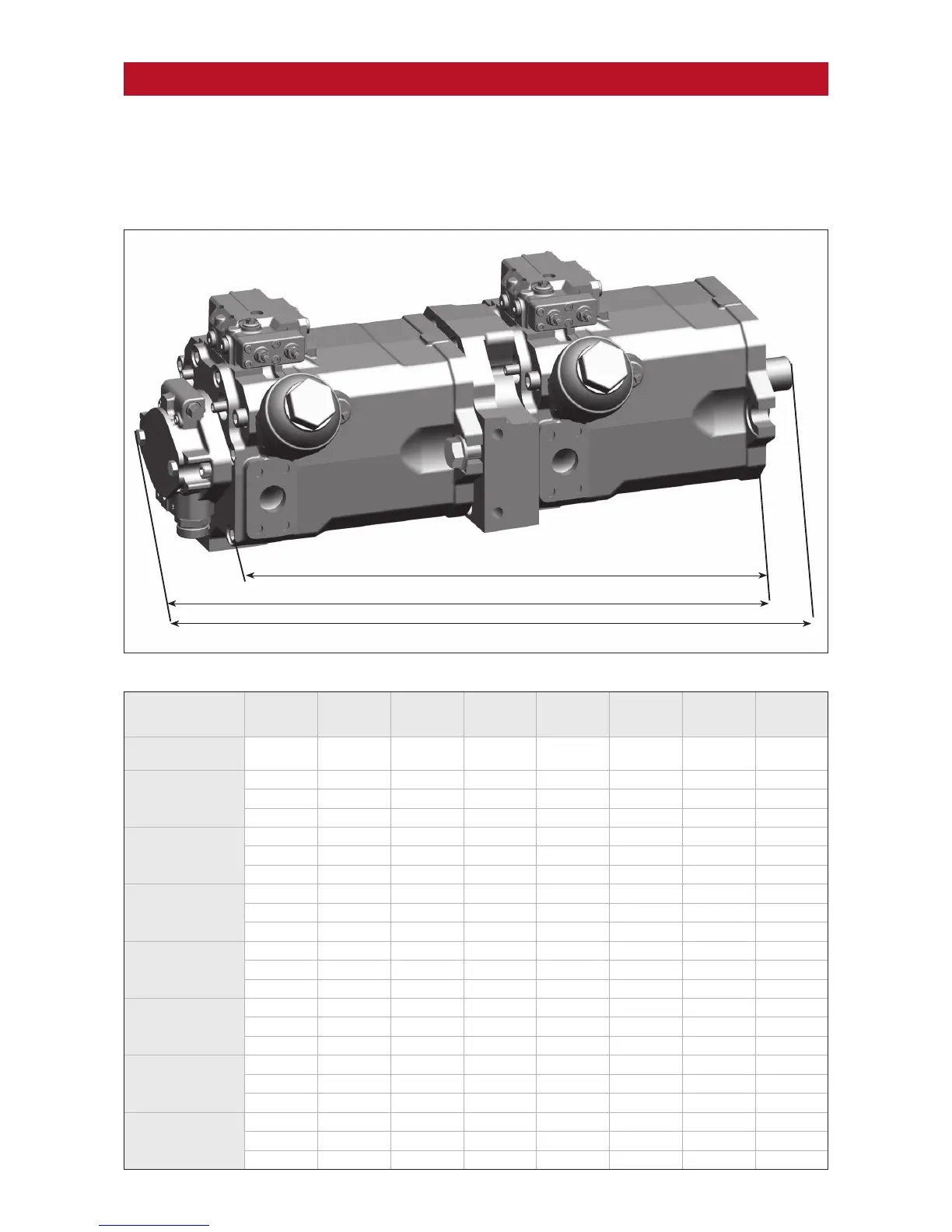

Dimensions. Multiple pumps

rear pump front pump

Overall length of multiple pump HPR-HPR-02

Multiple pump HPR-HPR-02

Rated size Rear pump HPR 55 HPR 75 HPR 105 HPR 135 HPR 165 HPR 210 HPR 280

Front pump Charge pump 16 cc/rev 22.5 cc/rev 22.5 cc/rev 22.5 cc/rev 38 cc/rev 38 cc/rev 38 cc/rev

HPR 55

L1 488 - - - - - -

L2 548 - - - - - -

L3 602 - - - - - -

HPR 75

L1 500 511 - - - - -

L2 565 576 - - - - -

L3 620 631 - - - - -

HPR 105

L1 520 531 562 - - - -

L2 585 596 627 - - - -

L3 640 651 682 - - - -

HPR 135

L1 536 547 578 619 - - -

L2 596 612 643 684 - - -

L3 671 667 698 759 - - -

HPR 165

L1 579 591 621 679 728 - -

L2 754 766 796 854 903 - -

L3 829 841 871 929 978 - -

HPR 210

L1 600 612 642 701 749 751 -

L2 775 787 817 876 924 926 -

L3 850 862 892 951 999 1001 -

HPR 280

L1 669 680 711 727 775 790 845

L2 844 855 886 902 950 965 1020

L3 919 930 961 977 1025 1040 1095
