Linde HPR-2 - Drive Shaft

14

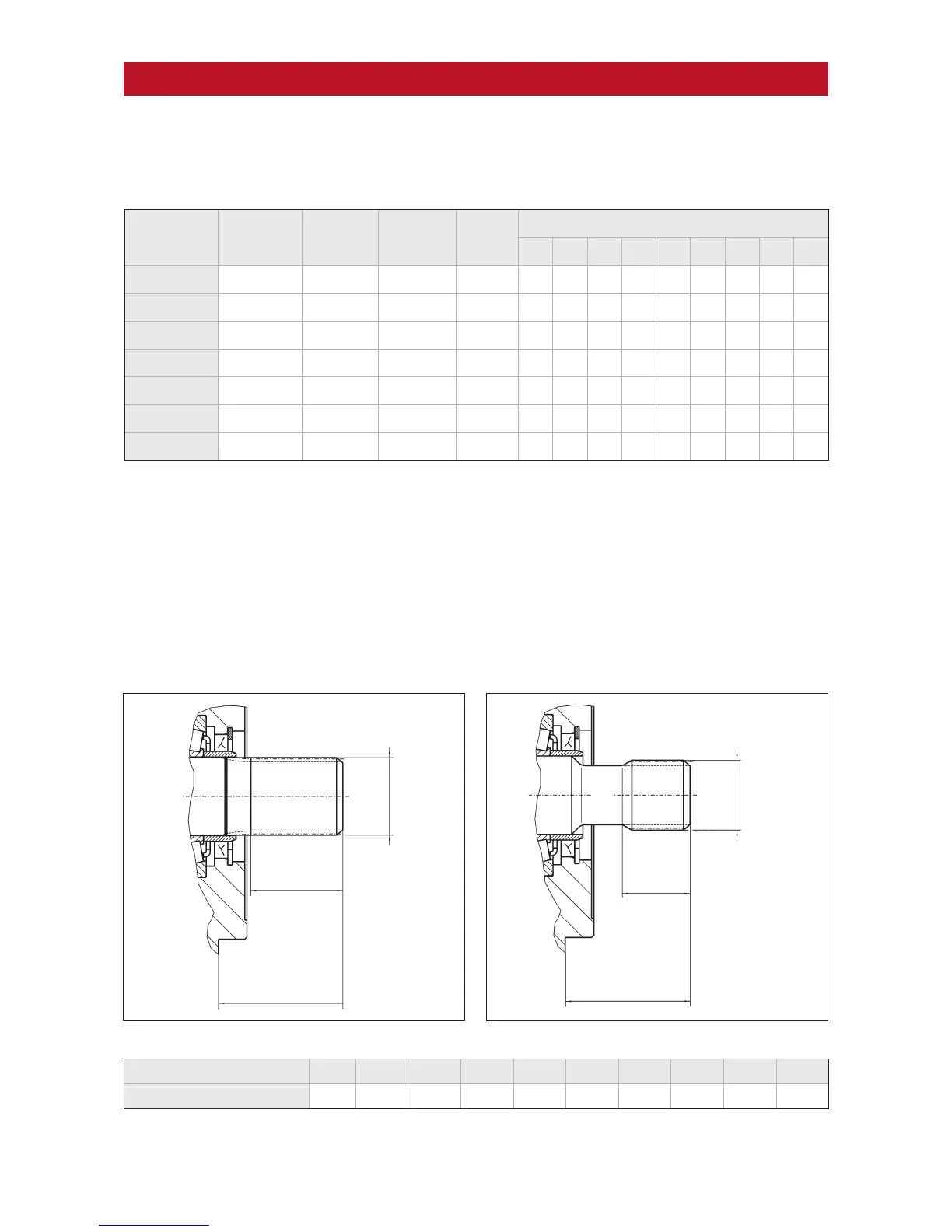

A) Dimensions drive shafts
Torque transmission. Drive shaft
A) Linde Hydraulics shaft types
Type 2. With undercut
Type 1. Without undercut
Rated size 55 75 105 105D 135 165 165D 210 280
Excess length W3 mm 54 55 55 61.3 75 75 75 75 75
Shaft spline
(in accordance with
ANSI B92.1)
SAE-J744
Code
(for centring and
shaft)
Outside
diameter W1
[mm]
Useable
spline length
W2 [mm]
Shaft type
Available for rated size
55 75 105 105D 135 165 165D 210 280
12/24, 14 t C 31.22 30 2 x x x - - - - - -
16/32, 21 t 34.51 39.5 1 - x* - - - - - - -
12/24, 17 t C-C 37.68 30 2 - - x x x - - - -
16/32, 23 t 37.68 38.5 1 - - x* x - - - - -
8/16, 13 t D, E 43.71 50 2 - - - - x x x- - -
16/32, 27 t 44.05 62 1 - - - - x x* x x -
8/16, 15 t F 50.06 58 1 - - - - - - - x* x
*) Recommended for tandem configurations
W1
W2
W3
W3
W1
W2
