Linde HPR-2 - Double Pumps and Plug-In Pumps

42

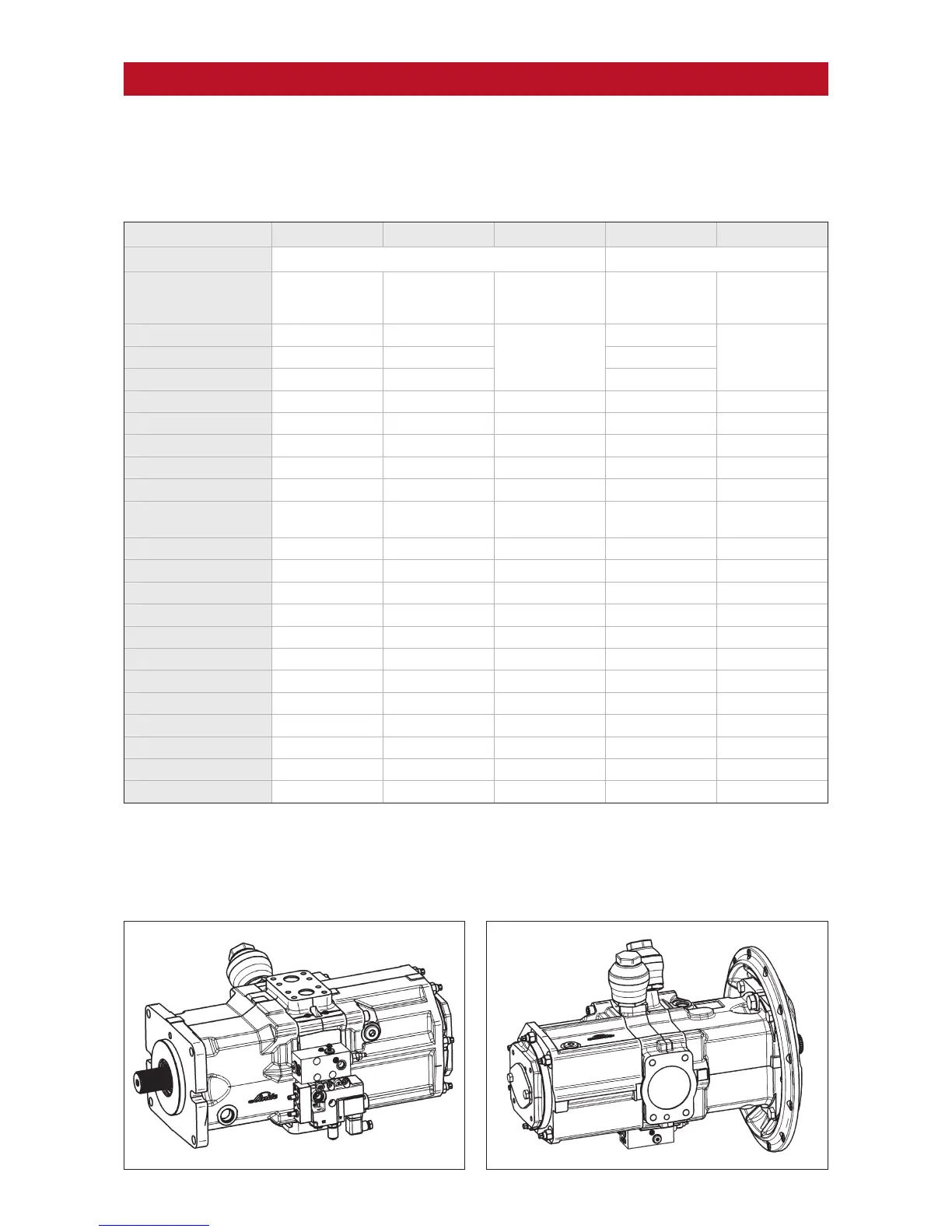

Dimensions. Double pumps and plug-in pumps
Double pump with SAE J744 flange Double pump with SAE J617a flange
Double pumps consist of two HPR rotating groups, arranged back-to-back to a common port plate housing, sharing one common
suction port. They are thus more compact than two standard pumps in a tandem configuration. Compared to a pump of equal rated
size with a single rotating group, double pumps offer higher speed and more narrow radial dimensions. They also provide a PTO
option. The position of the ports, controllers and SPU differs from the previously shown pumps.
Further details on request.
Rated size
105D 105D 105D 165D 165D
Circuit
Single circuit pump Single or dual circuit pump
Flange
SAE C
with 4 additional
bolt holes
plug-in version SAE 3 / SAE 4
SAE D
with 4 additional
bolt holes
SAE 3
D1 [mm]
127 216
SAE J617a
152.4
SAE J617a
D2 [mm]
- - -
D3 [mm]
- - -
B1 [mm]
124 124 124 147 147
B2 [mm]
120 120 120 136 136
B4 [mm]
- 222 222 162.3 162.3
H1 [mm]
107 141 141 116 116
H2 [mm]
107 141 141 116 116
H3 [mm]
(105:LP, 165 E1L)
138 144 144 170 170
H4 [mm]
- 137 137 255 255
H5 [mm] port P
75 75 75 80 80
H6 [mm] port T
38 38 38 0 0
H7 [mm]
195 196 196 260 260
L1 [mm]
474 358 450 587.6 587.6
L2 [mm]
478 376 468 601 625
L3 [mm]
61.3 171 79 74.6 50.1
L4 [mm]
232 116 208 286.1 310.6
P (SAE)
2 x 1” 2 x 1” 2 x 1” 2 x 1 ¼“ 2 x 1 ¼“
T (SAE)
1 x 3” 1 x 3” 1 x 3” 1 x 4“ 1 x 4“
L
M22x1.5 M22x1.5 M22x1.5 M27x2 M27x2
U
M22x1.5 M22x1.5 M22x1.5 M27x2 M27x2
