15

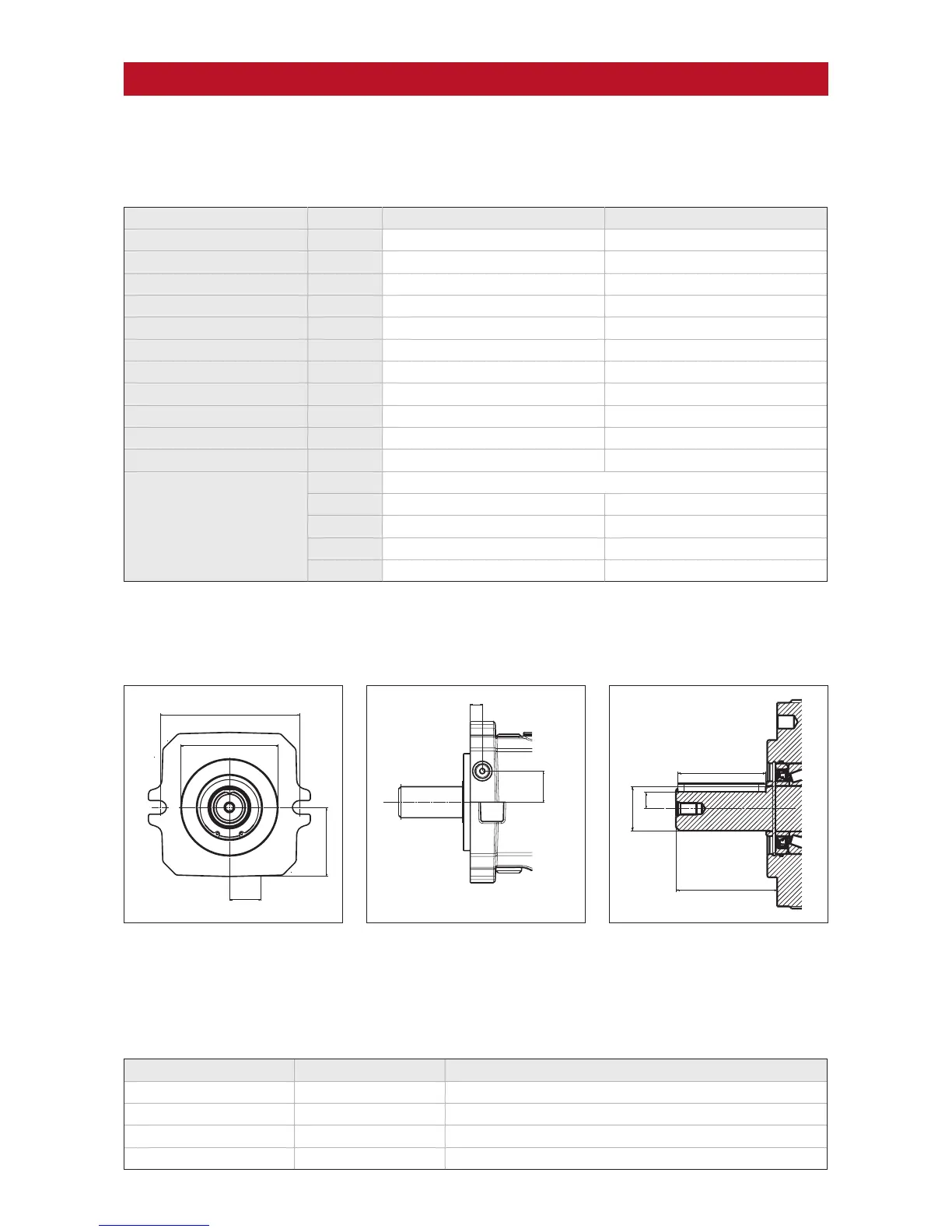

Torque transmission. Pumps according to ISO 3019-2 and SAE J617a
The previously given information and dimensions refer to pumps according to ISO 3019-1 (SAE J 744). In addition to that, certain
configurations are available according to ISO 3019-2. These units offer an additional drain port “R” at the mounting flange for
upright installation and a keyed drive shaft.
Detailed shaft view View on R Mounting flange
>> Further dimensions and position of the other ports, see <<Dimensions. Single pumps HPR-02 for TL2, LEP, ETP>>
Rated size 105 280
Mounting flange 125A2SW 224B4SW
Mounting 2-hole 4-hole
Screw hole diameter M1 17.5 22
Screw contact surface M2 40 40
Clamping length M3 30 30
Centring D 125 224
Mounting hole distance K 180 198
Shaft diameter W1 40 60
Key acc. to DIN 6885 W2 12x8x80 18x11x100
Excess length W3 92 115
Height W4 23 53
Port R Size M14x1.5 13 deep
Position bottom, as port "T" side, as port "U"
R(L) 15.5 15
R(H) approx. 80 50
R(B) 40 152
K
W2
W3
D
R(H)
R(B)
R(B)
R(L)
W1
W4
According to SAE J617a Rated size Base unit
SAE 3 105, 105D, 135 plug-in
SAE 3 165, 165D SAE D 2-hole with 4 additional bolt holes
SAE 4 105, 105D, 135 plug-in
SAE 5 55, 75, 105 SAE C 2-hole
Linde HPR pumps can be delivered matching a flange according to SAE J617a. The pumps are therefore equipped with an adaptor.
Depending on the rated size, the base unit is a standard HPR-02 or a plug-in type HPR-02. The plug-in-flange is shown in section
<<Dimensions. Double pumps and plug-in pumps>>.
