19

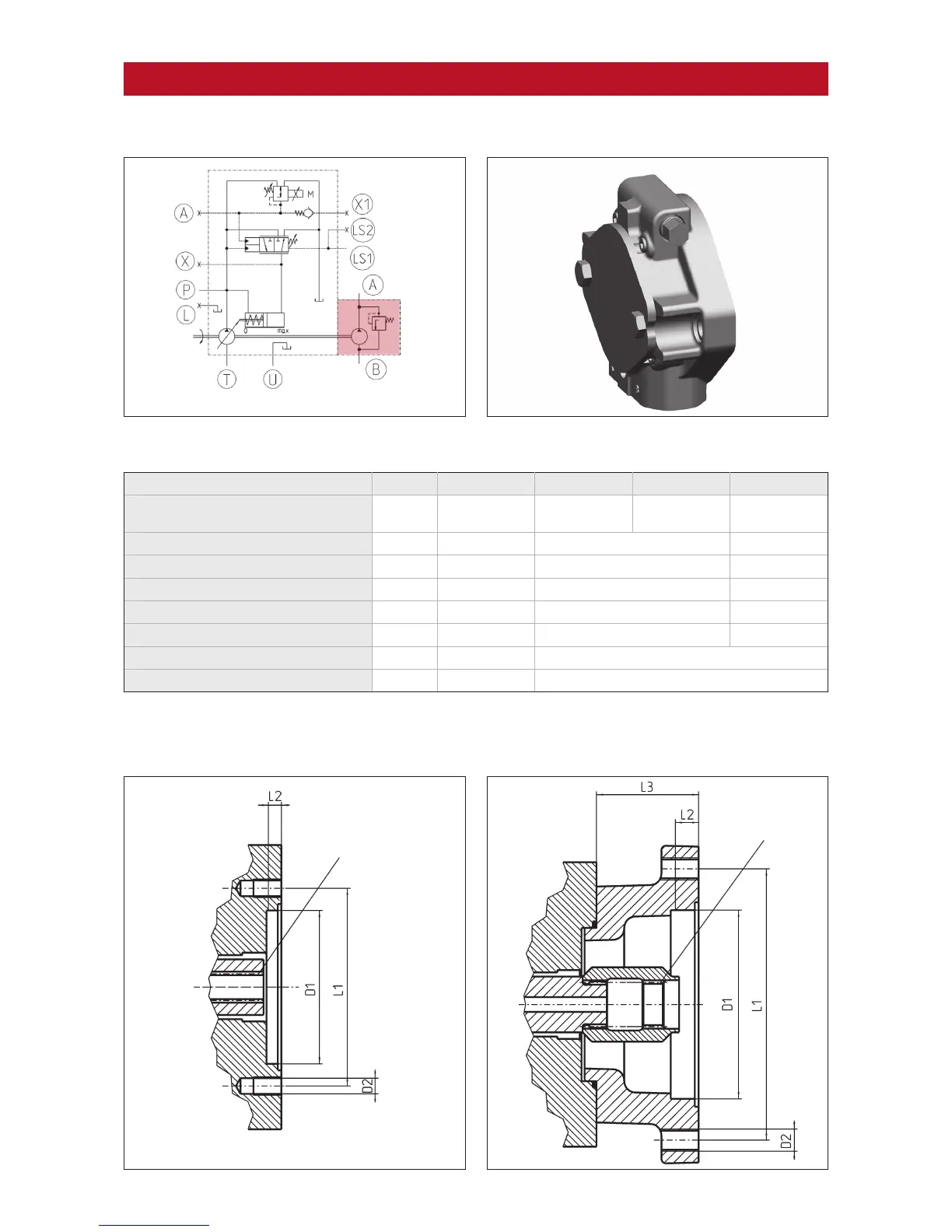

Gear pumps.
PTO flange with IGP
Internal spline profile
Z
Internal gear pump IGP with external suction
PTO SAE B, B-B, and C with IGPPTO SAE A with IGP
Flange profile 2-hole SAE A SAE B SAE B-B SAE C
Z internal spline profile
in accordance with ANSI B92.1
16/32, 9 t 16/32, 13 t 16/32, 15 t 12/24, 14 t
D1 spigot pilot diameter mm 82.55 101.6 127
D2 thread size M 10 M 12 M 16
L1 hole distance mm 106.4 146 181
L2 adapter length mm 7 11 13
L3 flange length mm - 55 72
Continuous transfer torque Nm 75 175
Maximum transfer torque Nm 107 250
Internal spline profile
Z
