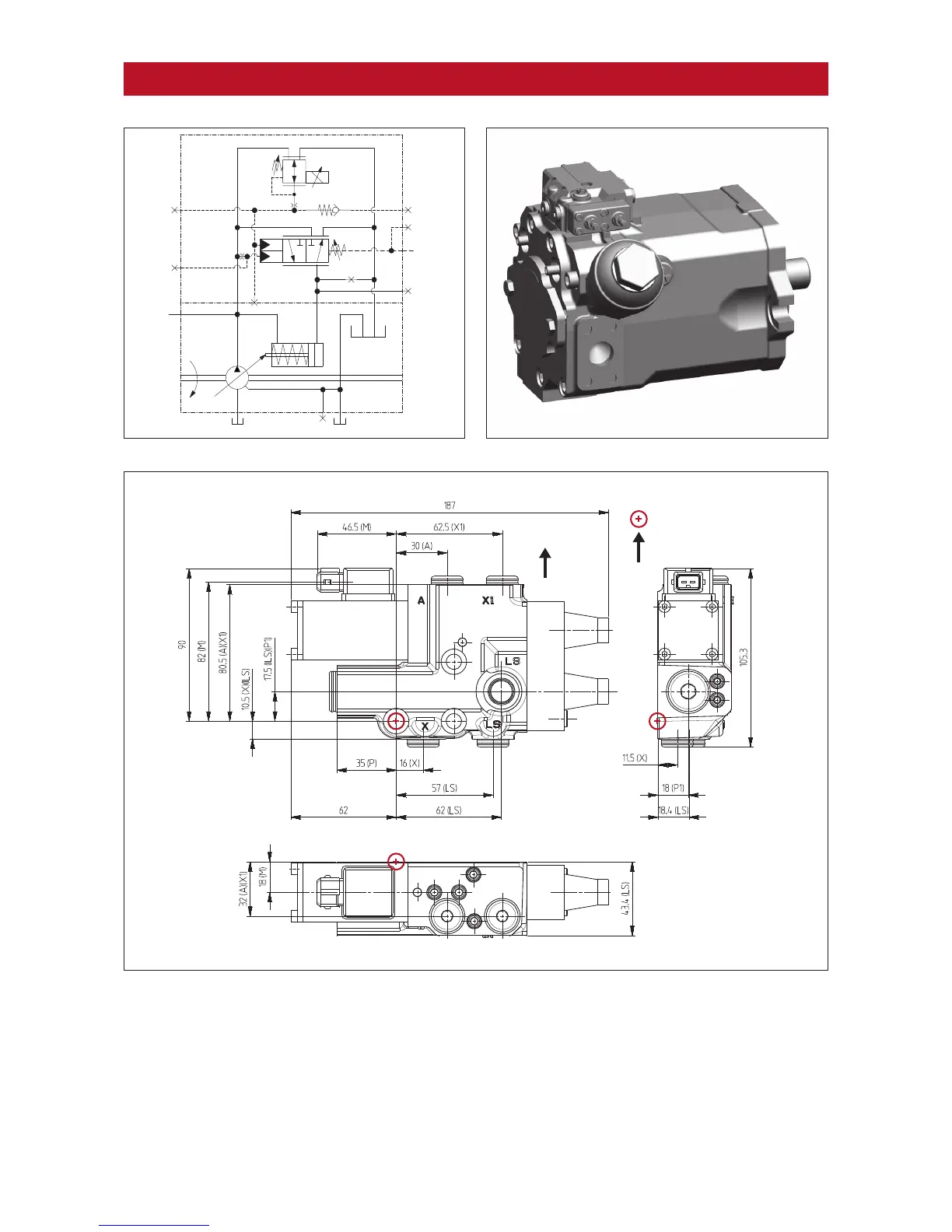

Dimensions. E1L-controller
Dimensions: approx. 187 x 105.3 x 43.4 mm
Connections: A Test port control pressure M14x1.5
X Test port actuating pressure M14x1.5
X1 Connection for emergency actuation M14x1.5
LS1,2 Load sensing signal / test port M14x1.5
P1 Test port pump pressure M18x1.5
M Solenoid with AMP-JPT connector (example)
Further information, see <<Controllers. Electrical properties>>
