Linear DMC1 User Manual

6
ROOM STATION ROUGH-IN
1. At each Room Station location, nail or screw a Model DMC1HR-5
Room Station Rough-in Ring about 52” above the fl oor level (see
Figure 8).
2. Route Cat-5 cable from the Master Station’s wall housing to the Room
Station location.
3. Leave about 12” of extra cable extending at the Room Station location.
Wrap the cable around a nail at the Room Station location to hold it
and protect it from drywall damage.
4. Bring the other end of the cable into the Master Station’s wall housing
through the top left wiring access hole or slot. Leave about 12” of extra
cable extending at the wall housing. LABEL THE CABLE.
PATIO STATION ROUGH-IN
1. Route Cat-5 cable from the Master Station’s wall housing to each
Patio Station location.
2. At each Patio Station location, install a Model DMC1HRW Flush-mount
Rough-in Enclosure about 50” above the fl oor level. Leave about 12”
of extra cable extending at the Patio Station enclosure. Wrap the cable
around a wood block to keep the cable from falling back through the
enclosure’s knockout.
3. Depending on the type of construction, the enclosure can be screwed
or nailed to a stud, or in masonry applications just let the enclosure
hang on the cable so the brick mason can fl ush and level it (see
Figure 9).
4. Bring the other end of the cable into the Master Station’s wall housing
through the top left wiring access hole or slot. Leave about 12” of extra
cable extending at the wall housing. LABEL THE CABLE.
✔ NOTE: DO NOT locate Patio Stations in places with direct exposure
to sun and weather or in locations that receive direct water spray.
CAUTION
The DMC1 Master Station has a maximum load capacity of 15
speakers (the total number of Room Stations, Patio Stations,
and mono speakers combined) and three Door Stations. No
more than two speakers or stations can be wired to any one
station selector switch. A maximum of two speakers or Patio
Stations can be wired to the patio switch.
CAT-5 CABLE
FROM MASTER
WRAP CABLE
AROUND NAIL
DRYWALL
SCREWS
52"
DMC1HR-5
MOUNTING RING
(FORMED FLANGE
SIDE OUT)

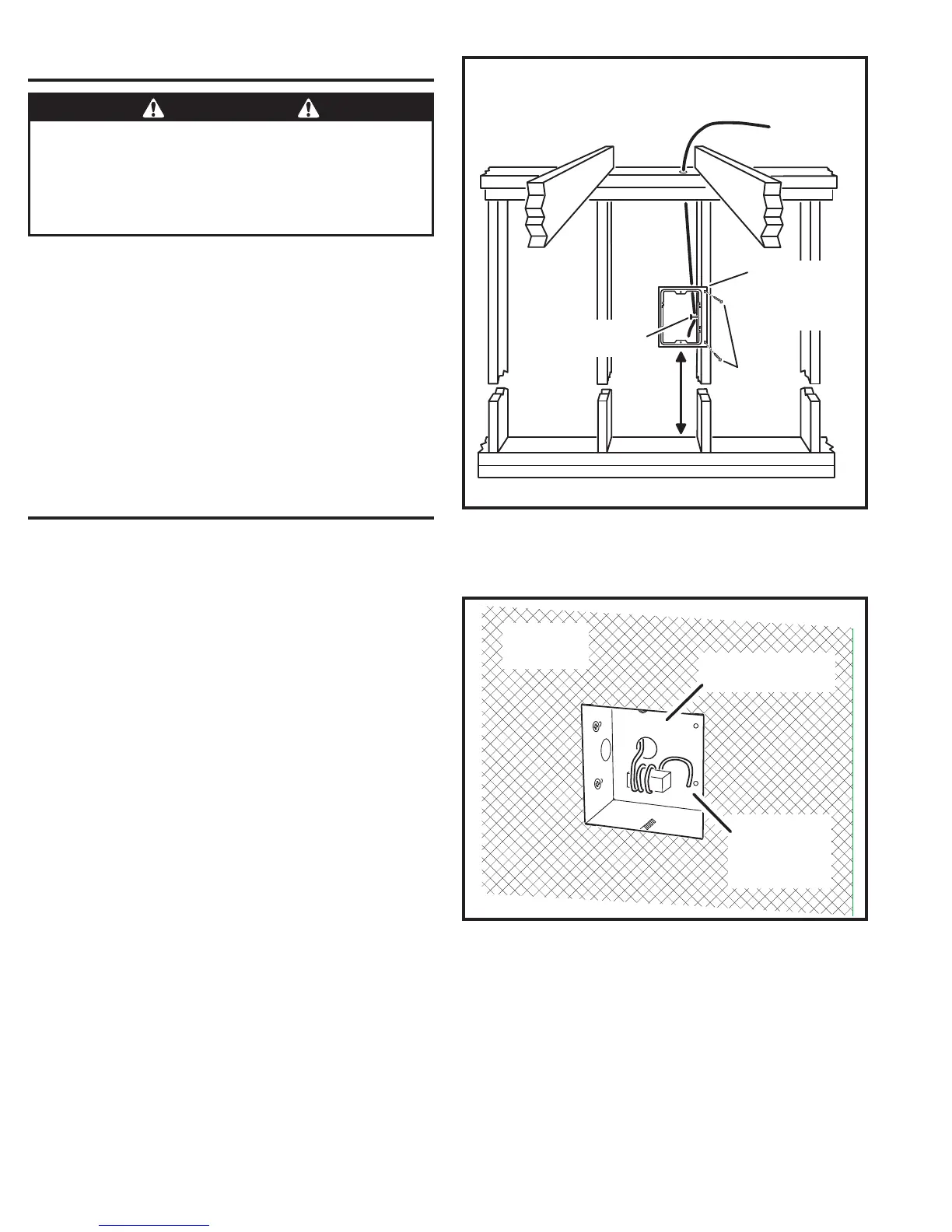

Figure 8. Room Station Rough-in
LATH
SHEATHING
FOR STUCCO
FLUSH-MOUNT DMC1HRW
ROUGH-IN ENCLOSURE
ROUTE CAT-5 INTO
ENCLOSURE AND
AROUND A WOOD
BLOCK, SECURE
WITH A ZIP-TIE
Figure 9. Patio Station Rough-in
