CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 64

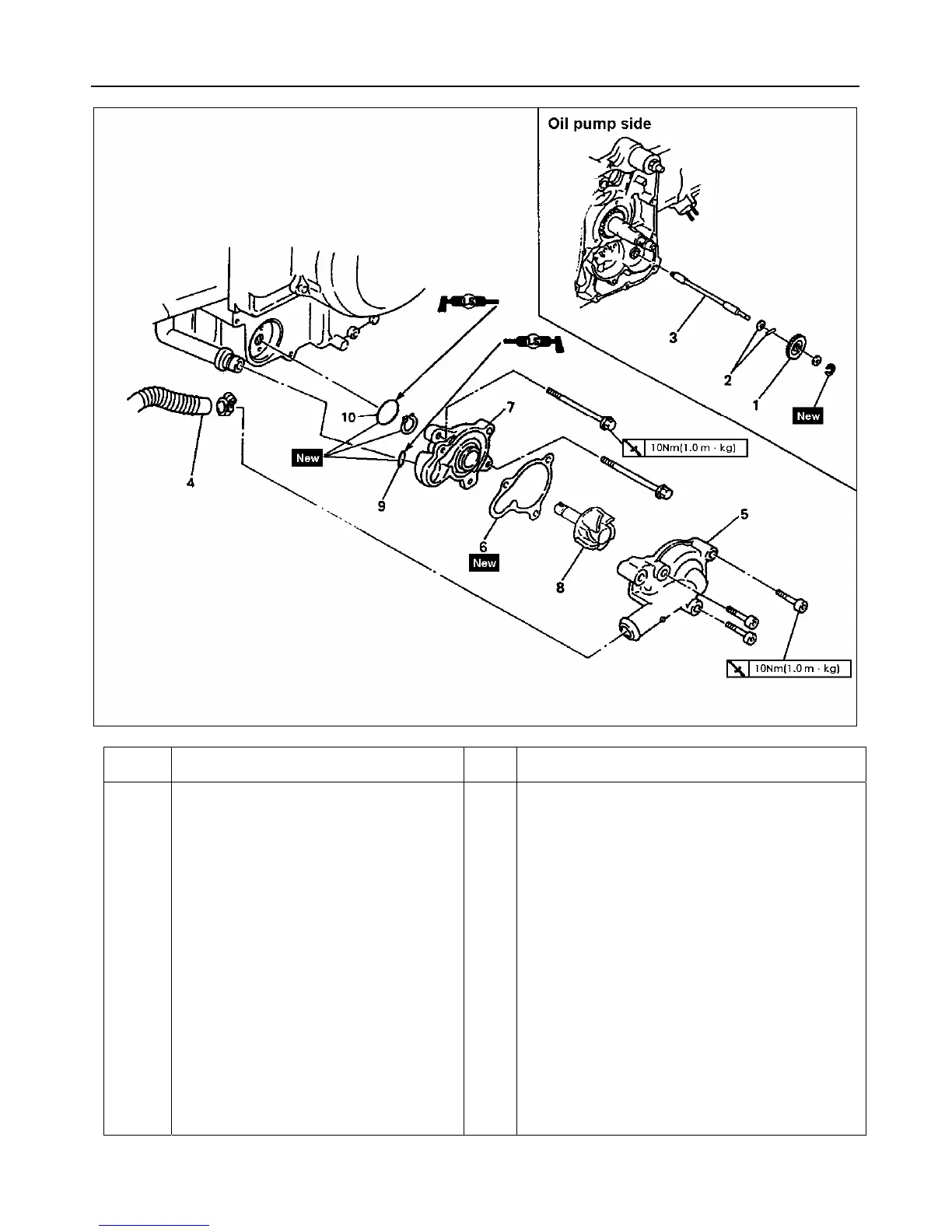

3.11.2WATER PUMP
Order Job name/ Part name Q'ty
Remarks
Water pump removal Remove the parts in order.
Drain the coolant. Refer to "COOLANT REPLACEMENT"
section.
A.C. magneto Refer to "A.C. MAGNETO AND STARTER
CLUTCH" section.
1 lmpeller shaft gear
1
2 Dowel pin/plain washer
1/1
3 Shaft
1
Refer to "WATER PUMP INSTALLATION"
4 Outlet hose (radiator)
1
section.
5 Housing cover
1
6 Housing cover gasket
1
7 Water pump housing
1
1
