CHAPTER 5 FINAL DRIVE ATV SERVICE MANUAL 09.0
CHAPTER 5 FINAL DRIVE. 5-
25
8ft.lbs. (12Nm)
12. Install differential into case.,
Apply LocTite
TM
518 to mating surfaces,
reinstall left cover and torque bolts.
14ft.lbs. (20Nm)
13. Install new seals.

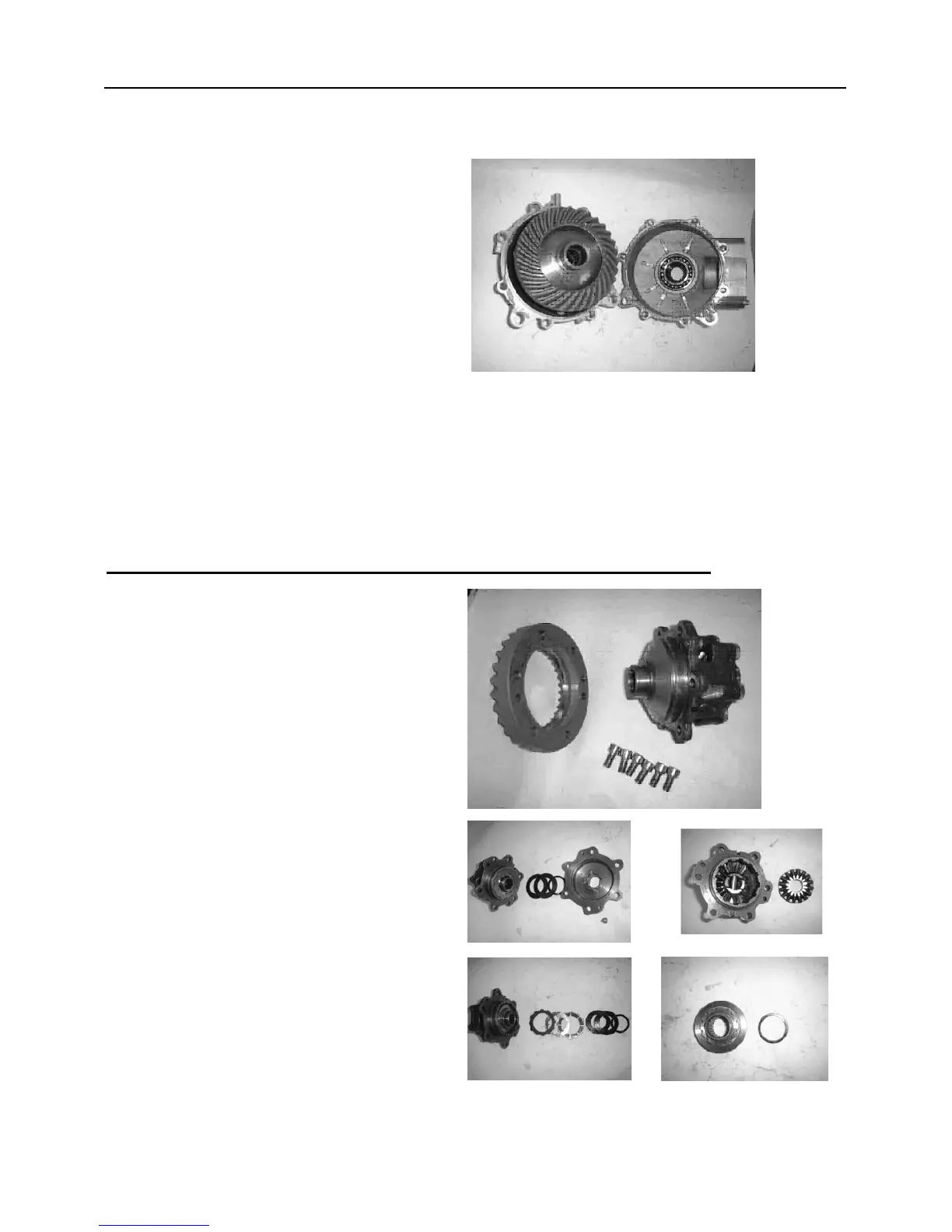

5.19 FRONT DIFFRENTIAL DISASSEMBLY/ INSPECTION
1. Remove bolts and bevel crownwheel.
2. Remove bolts and differential cap A.
3. Remove spring seat, springs, outer
single clutch plate, differential plat,
outer double clutch plate, bevel gear
and gear axle washer.
