CHAPTER 8 ELECTRICAL ATV SERVICE MANUAL 09.0
CHAPTER 8 ELECTRICAL CTRICAL PAGE 8-
13
8.4 CHARGING SYSTEM

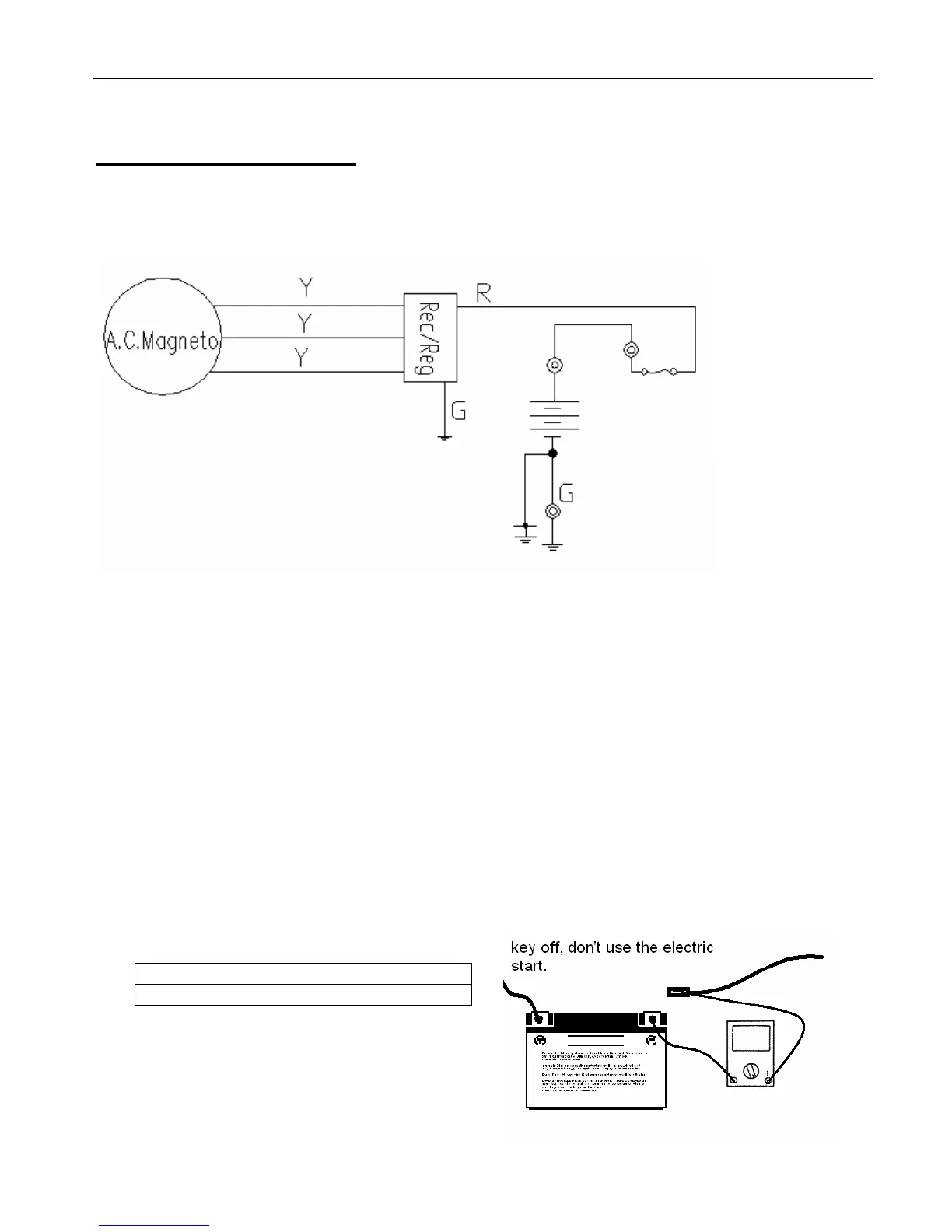

CHARGING SYSTEM CIRCUIT DIAGRAM
CURRENT DRAW - KEY OFF
CAUTION: Do not connect or disconnect the battery cable or ammeter with the engine running.
Damage will occur to light bulbs and speed limiter.
Connect an ammeter in series with the negative battery cable. Check for current draw with the key off,
if the draw is excessive, loads should be disconnected from the system one by one until the draw is
eliminated. Check component wiring as well as the component for partial shorts to ground to eliminate
the draw.
Current draw key off:
Maximum of 0.01DCA(10mA)
