CHAPTER 5 FINAL DRIVE ATV SERVICE MANUAL 09.0
CHAPTER 5 FINAL DRIVE. 5-
30

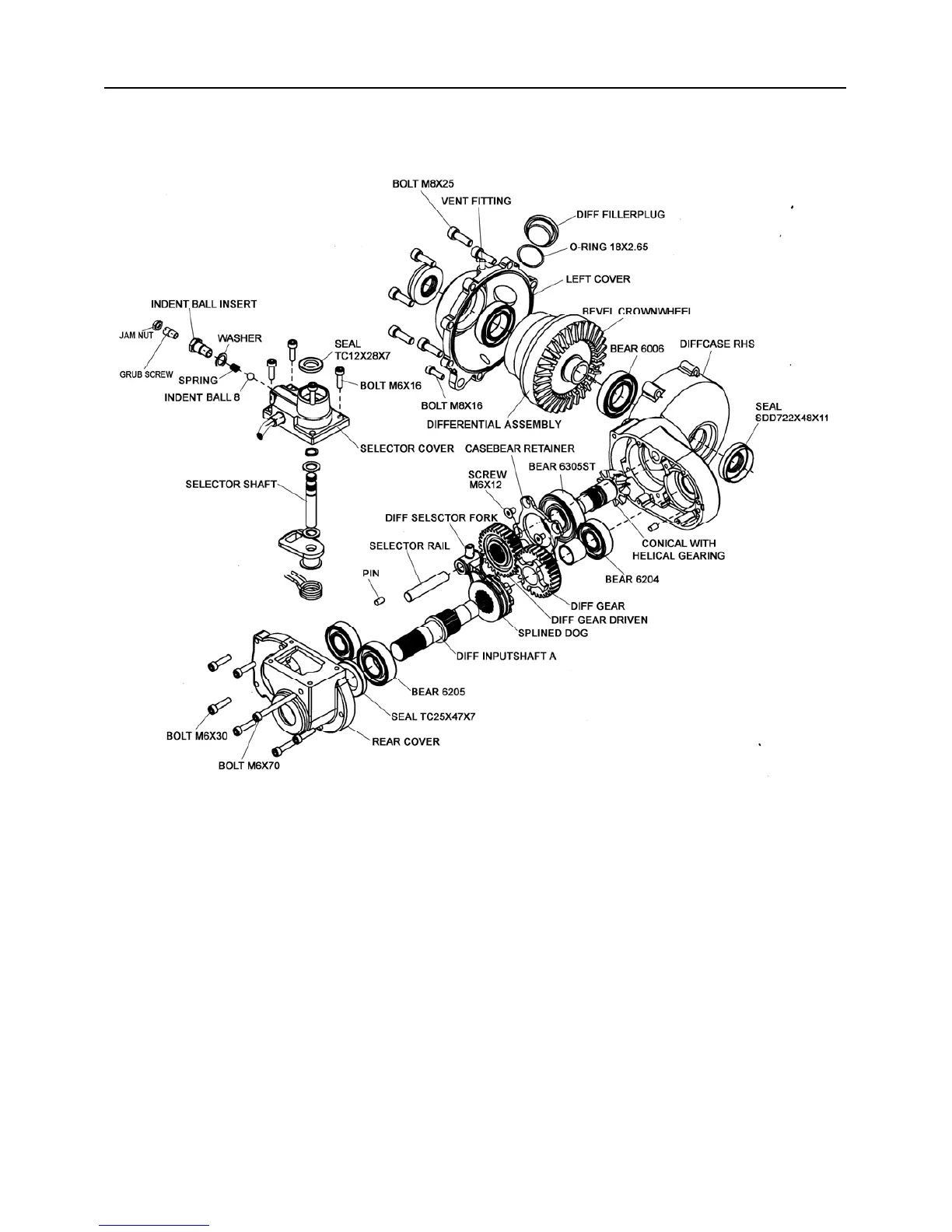

FRONT GEARCASE EXPLODED VIEW
TROUBLE SHOOTING
Symptom: Gears won’t stay in position when shift 2WD/ 4WD.
Solution: Increase the preload to indent ball by turning the grub screw or change a new spring.
Note: Make sure not to over press the spring by shifting 2WD/ 4WD. Remember to tighten the
jam nut on the grub screw.
