CHAPTER 8 ELECTRICAL ATV SERVICE MANUAL 09.0
CHAPTER 8 ELECTRICAL CTRICAL PAGE 8-
35

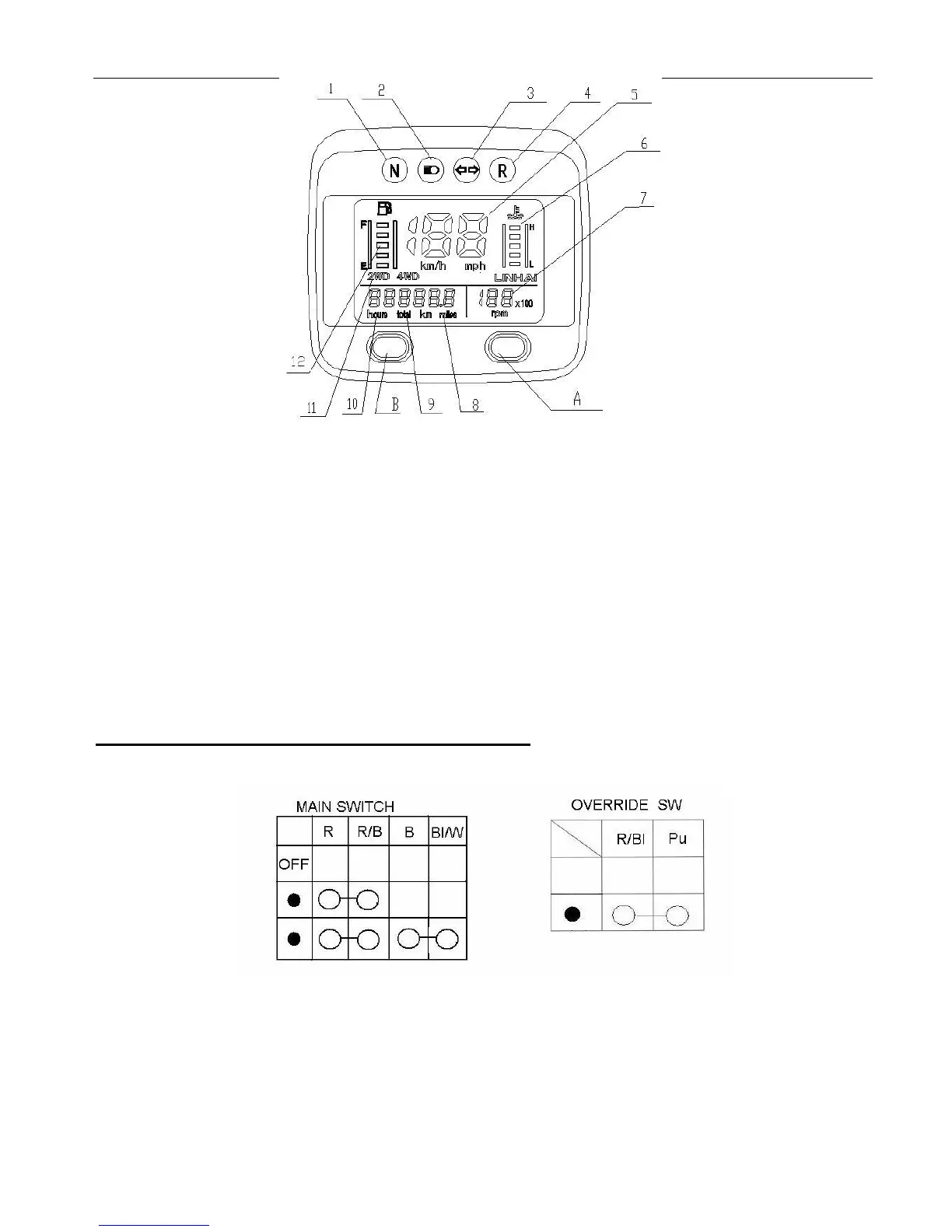

LCD Meter
1. Neutral indicator light 7. Engine rpm meter
2. High beam indicator light
8、9. The odometer
3. Turn indicator light 10.Engine working hour
counter
4. Reverse indicator light 11. 2WD/4WD indicator*
5. Speedometer A: km/ mile selector
6. Coolant temperature
meter*
B: hour / distance selector
12. Fuel gauge Indicator
8.11 MAIN SWITCH AND HANDLE SWITCH
