15. MAINTENANCE

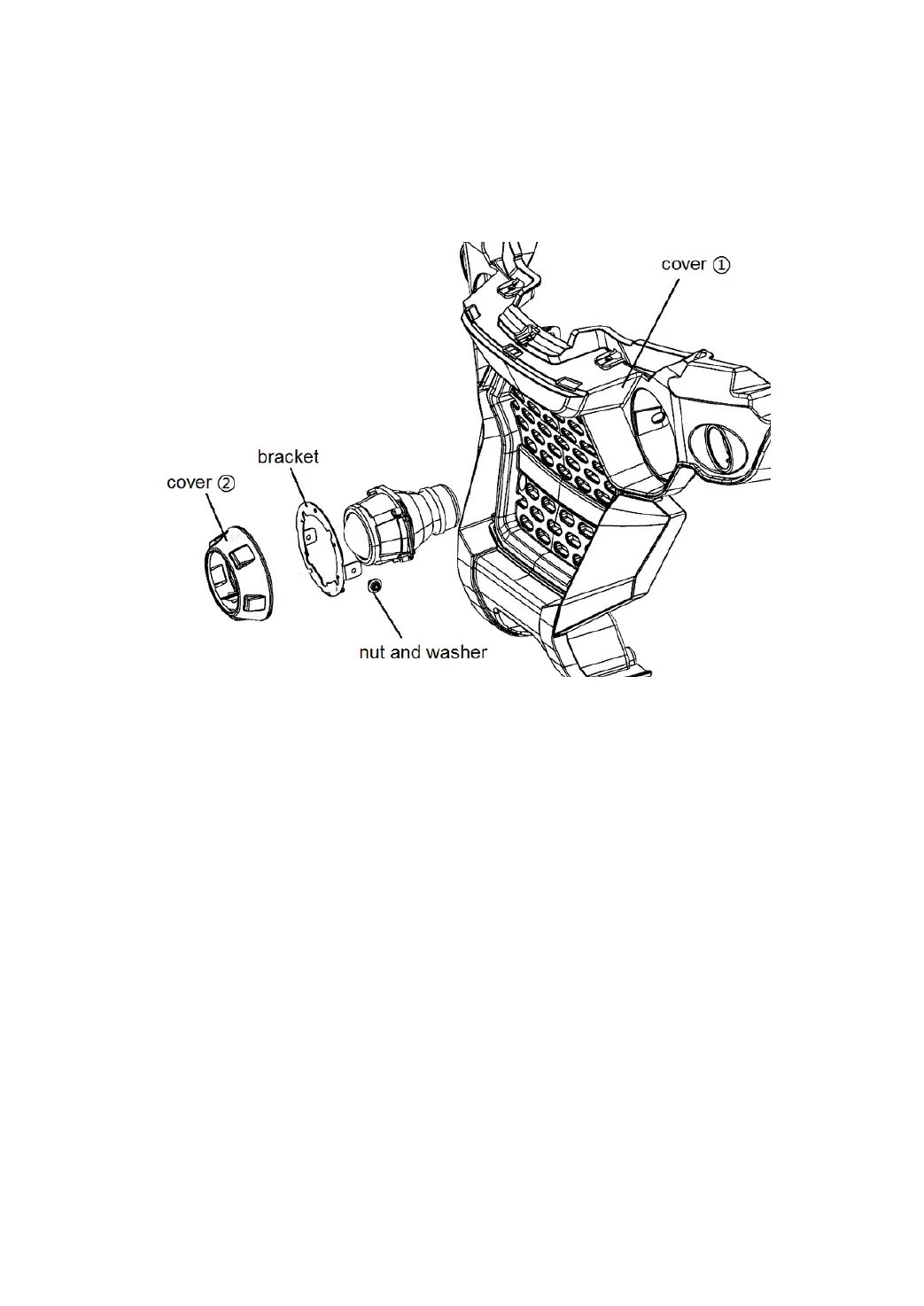

Dipped Headlight Replacement （Option 2）
1. Unplug the connector of the light and remove the nuts and
washers from the cover ①;
2. Remove the cover ② from the bracket of dipped headlight;
3. Remove the dipped headlight from the bracket ;
4. Install a well dipped headlight to the bracket ;
5. Install the cover ② to the bracket;
6. Install the bracket to the cover ①;
7. Connect the connector to wire harness.
