15. MAINTENANCE
Taillight/Brake light Lamp and Rear Direction Indicator
Replacement
If the taillight / brake light or rear direction indicator does not work,
the light may need to be replaced.

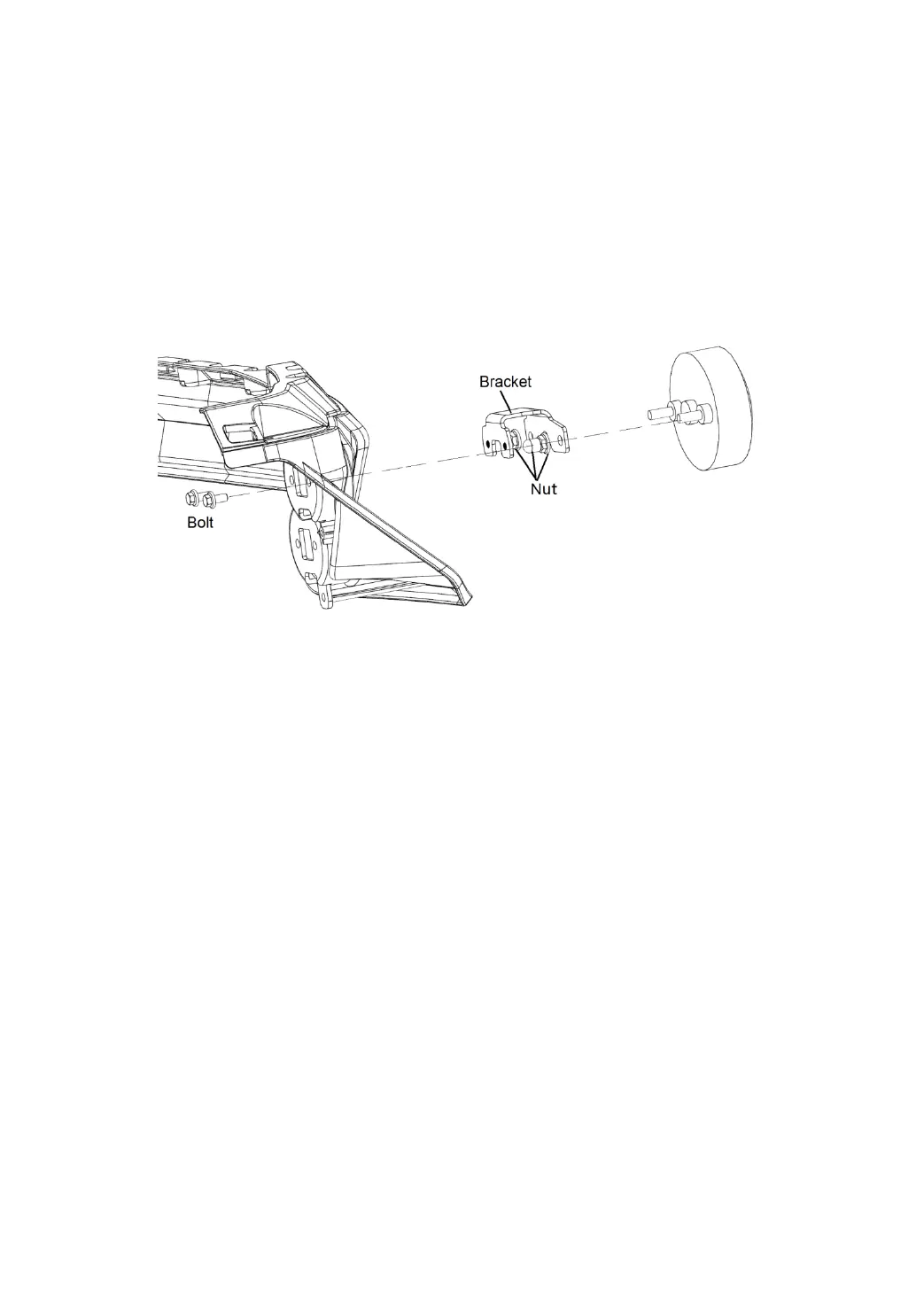

1. Unplug the connector and Remove two Bolts from the cover .
2. Remove two Nuts and a blind nut from the bracket of the light
and take-off the light.
3. Install a well Light to the bracket..
4. Install the bracket to the cover and Connecting the connector
to wire harness.
