Linksys LAPAC1750 User Manual

Remote Access Login for Users
1. Select Start > Programs > Administrative Tools > Active Directory Users and Computers.
2. Double-click on the user who you want to enable.

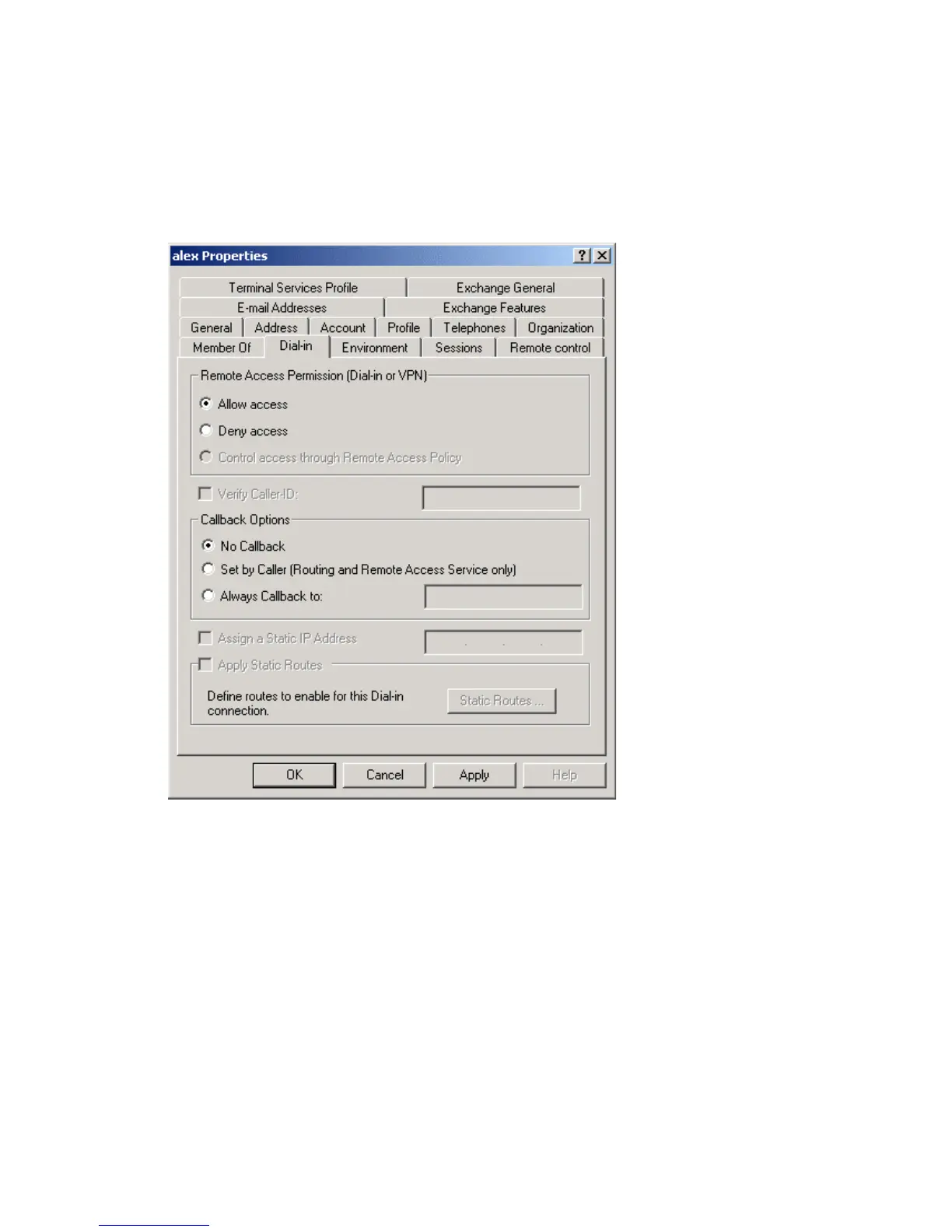

3. Select the Dial-in tab, and enable Allow access. Click OK.
802.1x Client Setup on Windows XP
Windows XP ships with a complete 802.1x client implementation. If using Windows 2000, you can
install SP3 (Service Pack 3) to gain the same functionality.
If you don't have either of these systems, you must use the 802.1x client software provided with
your wireless adapter. Refer to your vendor's documentation for setup instructions.
The following instructions assume:
•
You are using Windows XP.
•
You are connecting to a Windows 2000 server for authentication.
•
You already have a login (User name and password) on the Windows 2000 server.
117

Linksys LAPAC1750 Specifications

General

Modulation	-
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.745 - 5.825 GHz
Channels quantity	11 channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3u
Wi-Fi data rate (max)	500 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
Placement	Ceiling, Wall
Certification	FCC, CE, IC
Product color	White
Cable lock slot type	Kensington
Supported network protocols	IPv6
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	802.1x RADIUS, WDS, WEP, WPA, WPA2
Number of SSID supported	16
Antenna features	Integrated antenna
Input current	1.5 A
AC input voltage	12 V
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	243.08 mm
Width	236.98 mm
Height	43.69 mm
