Linksys LAPAC1750 User Manual

4. Setup for Windows XP and 802.1x client is now complete.
Using 802.1x Mode (without WPA)
This is very similar to using WPA-Enterprise.

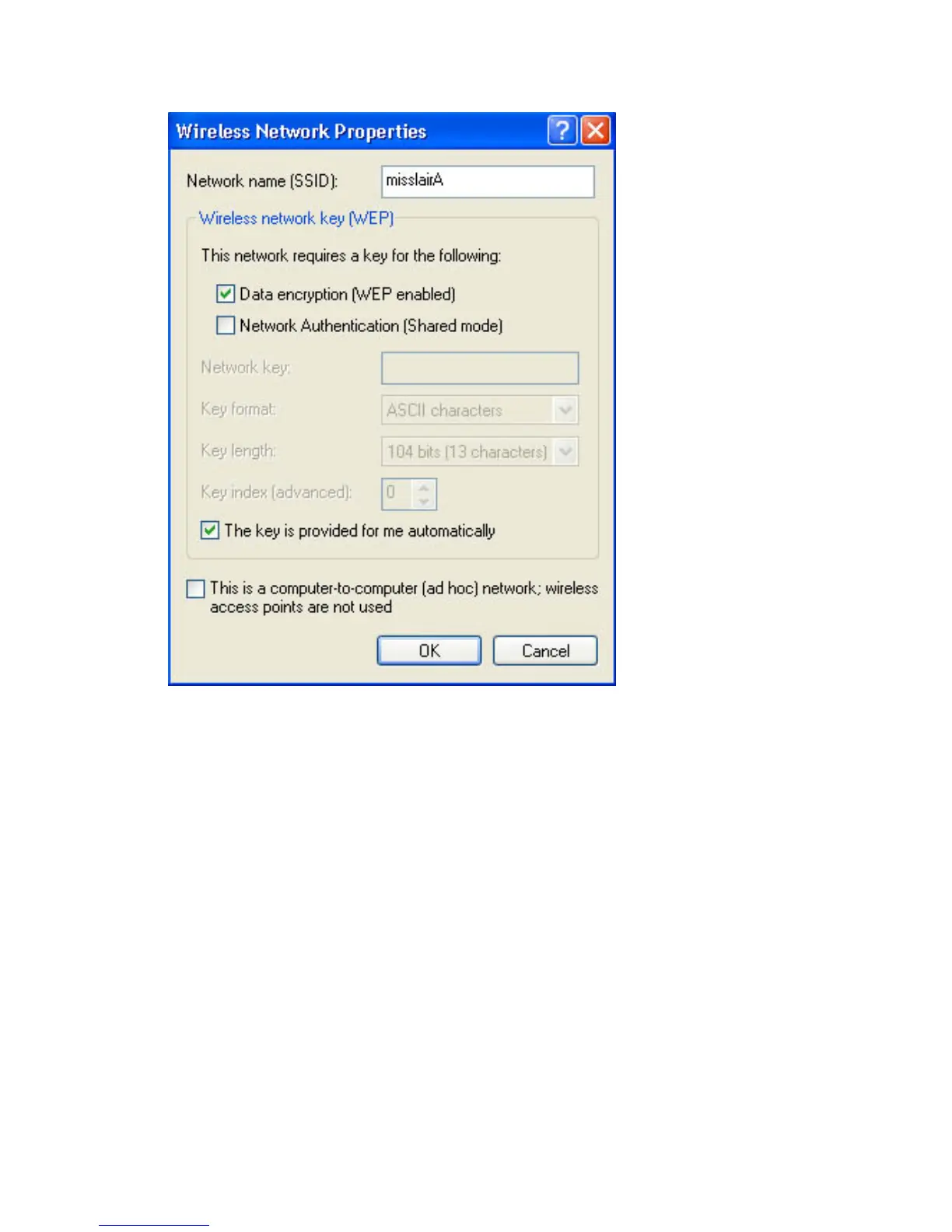

The only difference is that on your client, you must NOT enable the setting The key is provided for
me automatically.
Instead, you must enter the WEP key manually, ensuring it matches the WEP key used on the
access point.
123

Linksys LAPAC1750 Specifications

General

Modulation	-
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.745 - 5.825 GHz
Channels quantity	11 channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3u
Wi-Fi data rate (max)	500 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
Placement	Ceiling, Wall
Certification	FCC, CE, IC
Product color	White
Cable lock slot type	Kensington
Supported network protocols	IPv6
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	802.1x RADIUS, WDS, WEP, WPA, WPA2
Number of SSID supported	16
Antenna features	Integrated antenna
Input current	1.5 A
AC input voltage	12 V
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	243.08 mm
Width	236.98 mm
Height	43.69 mm
