Linksys LAPAC2600 User Manual

•
WPA2-Enterprise - Requires a RADIUS Server on your LAN to provide the client
authentication according to the 802.1x standard. Data transmissions are encrypted using
the WPA2 standard.
If this option is selected:
-
This access point must have a client login on the RADIUS Server.
-
Each user must authenticate on the RADIUS Server. This is usually done using
digital certificates.
-
Each user's wireless client must support 802.1x and provide the RADIUS
authentication data when required.
-
All data transmission is encrypted using the WPA2 AES standard. Keys are
automatically generated, so no key input is required.
•
WPA/WPA2-Enterprise – This method, sometimes called Mixed Mode, allows clients to use
either WPA-Enterprise (with TKIP) or WPA2-Enterprise (with AES).
•
RADIUS - RADIUS mode utilizes RADIUS server for authentication and dynamic WEP key
generation for data encryption.

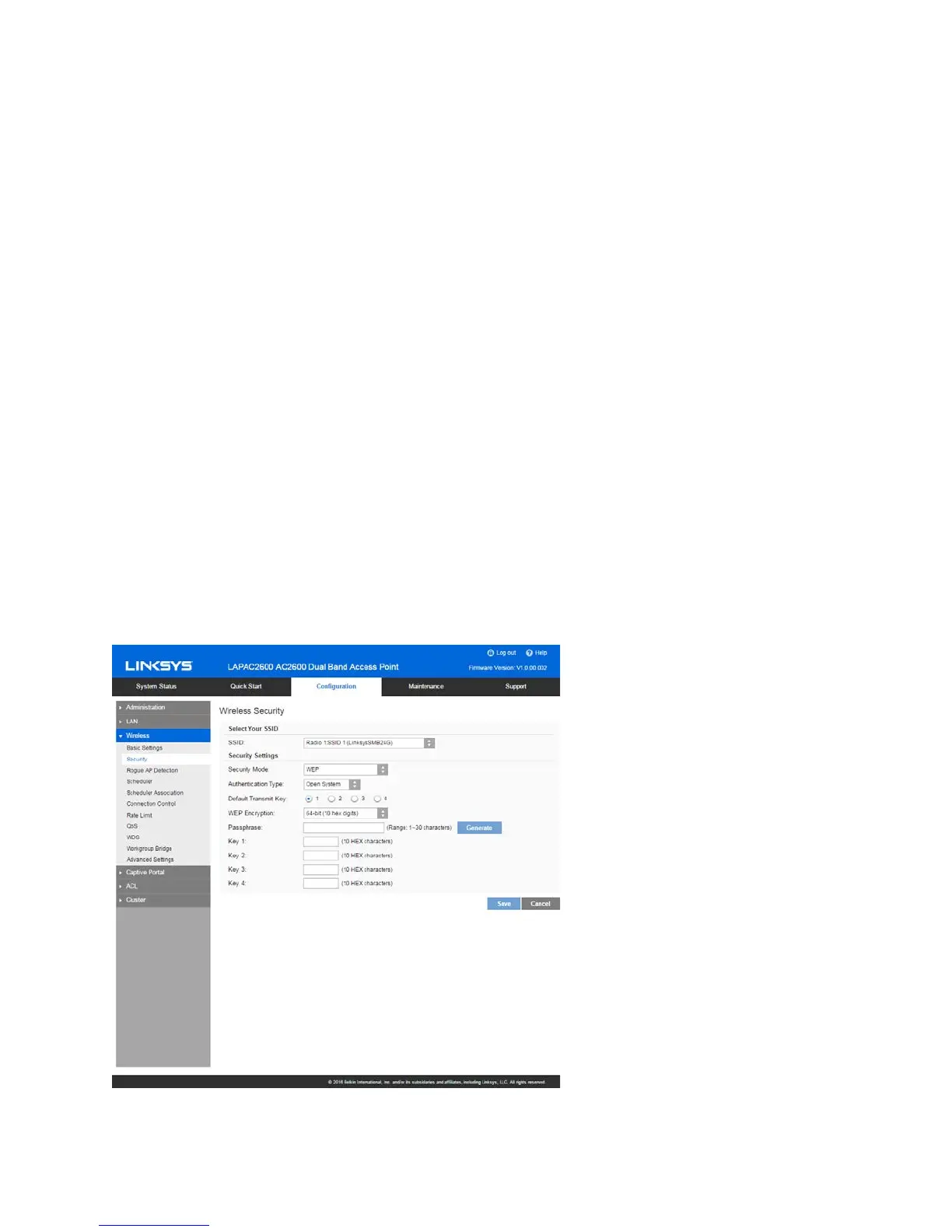

WEP
This is the 802.11b standard. Data is encrypted before transmission, but the encryption system
is not very strong.
34

Linksys LAPAC2600 Specifications

General

2.4 GHz	Yes
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.745 - 5.825 GHz
Channels quantity	13 channels
Number of VLAN IDs	17
Fit AP mode features	Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3at
Receiver sensitivity	802.11b 11Mbps: -85dBm 802.11a/g 54Mbps: -73dBm 802.11n HT20 MCS7: -67dBm 802.11n HT40 MCS7: -65dBm 802.11n HT40 MCS7: -65dBm
Virtual LAN features	SSID-based VLAN assignment
Wi-Fi data rate (max)	1733 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate	2533 Mbit/s
Output current	2.5 A
Output voltage	12 V
Power consumption (max)	25 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC: 47 CFR FCC Part 15, Subpart B, Class B; 47 CFR FCC Part 15, Subpart C; 47 CFR FCC Part 15, Subpart E CE: EN55022, Class B; EN61000-3-2; EN61000-3-3; 55024; EN 301 489-1 / EN 301 489-17, Class B; EN 300 328; EN 301 893; EN 62311; EN 50385
Product color	White
LED indicators	System
Cable lock slot type	Kensington
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna features	Integrated antenna
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Security algorithms	802.1x RADIUS, HTTPS, SNMP, WPA, WPA2
Number of SSID supported	16
Service Set Identifier (SSID) features	Hidden SSID
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	243 mm
Width	237 mm
Height	43.69 mm
Weight	848 g
