Linksys LAPN600 User Manual

59

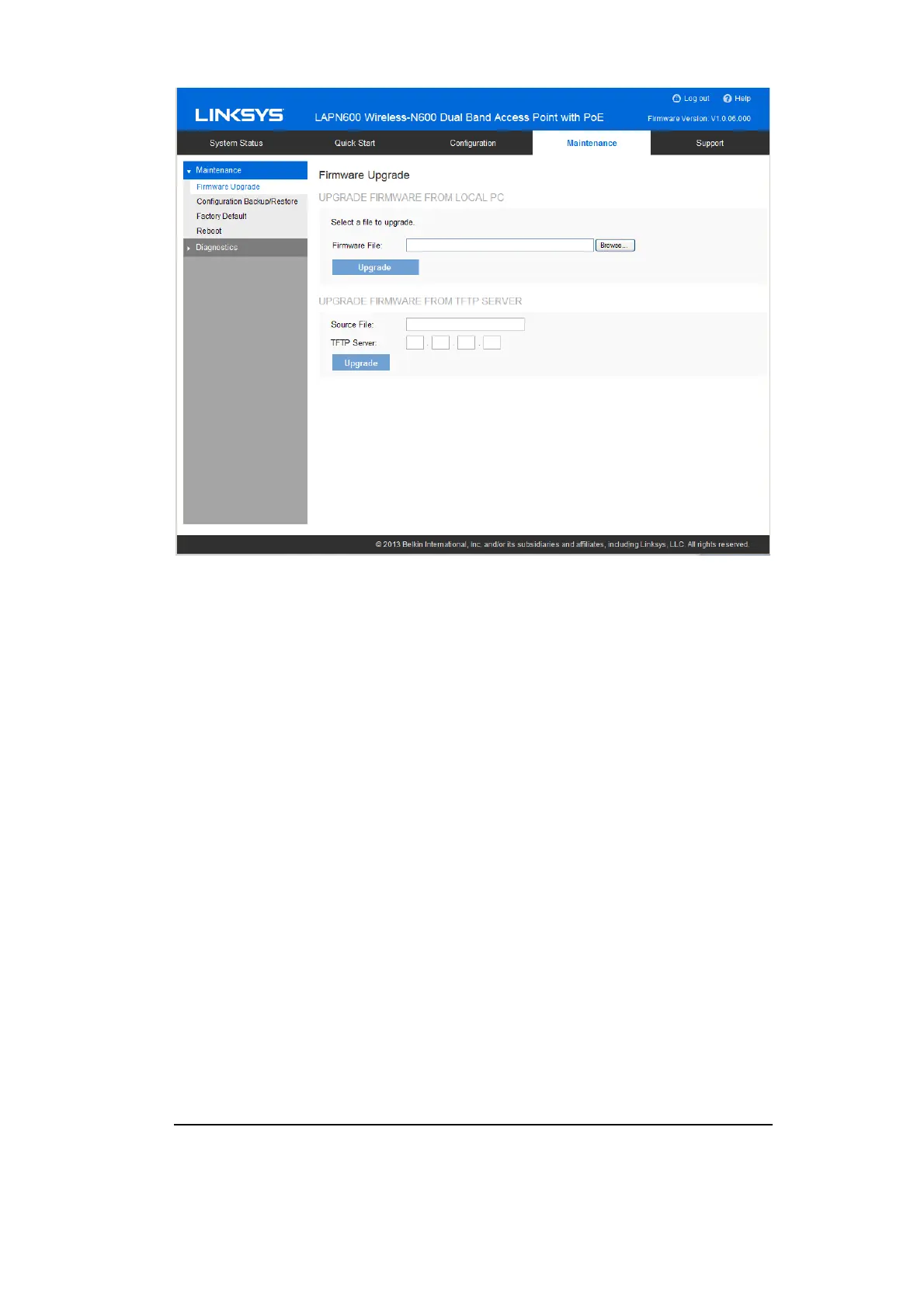

Figure 38: Firmware Upgrade Screen
To perform the firmware upgrade from local PC:
1. Click the Browse button and navigate to the location of the upgrade file.
2. Select the upgrade file. Its name will appear in the Upgrade File field.
3. Click the Upgrade button to commence the firmware upgrade.
To perform the firmware upgrade from TFTP server:
1. Enter the IP address of the TFTP server and the source file. The source file is the firmware
filename you stored in your TFTP server. Only support IPv4 address here.
2. Click the Upgrade button to commence the firmware upgrade.

Linksys LAPN600 Specifications

General

Color	white
Wi-Fi Speed	600 gigabits per second
Frequency Band	2.4 ghz
QoS Traffic Prioritization	no
Wireless Standard	n
Data Encryption	yes
Encryption Type	other, wep, wpa, wpa2
Security Features	rogue ap detection; ssid to vlan mapping; 802.1x supplicant
Ports	rj-45
Bluetooth	no

Weight and Dimensions

Height	1.72 inches
Width	9.33 inches
Net Weight	1.1 pounds
