Linksys LAPN600 User Manual

78

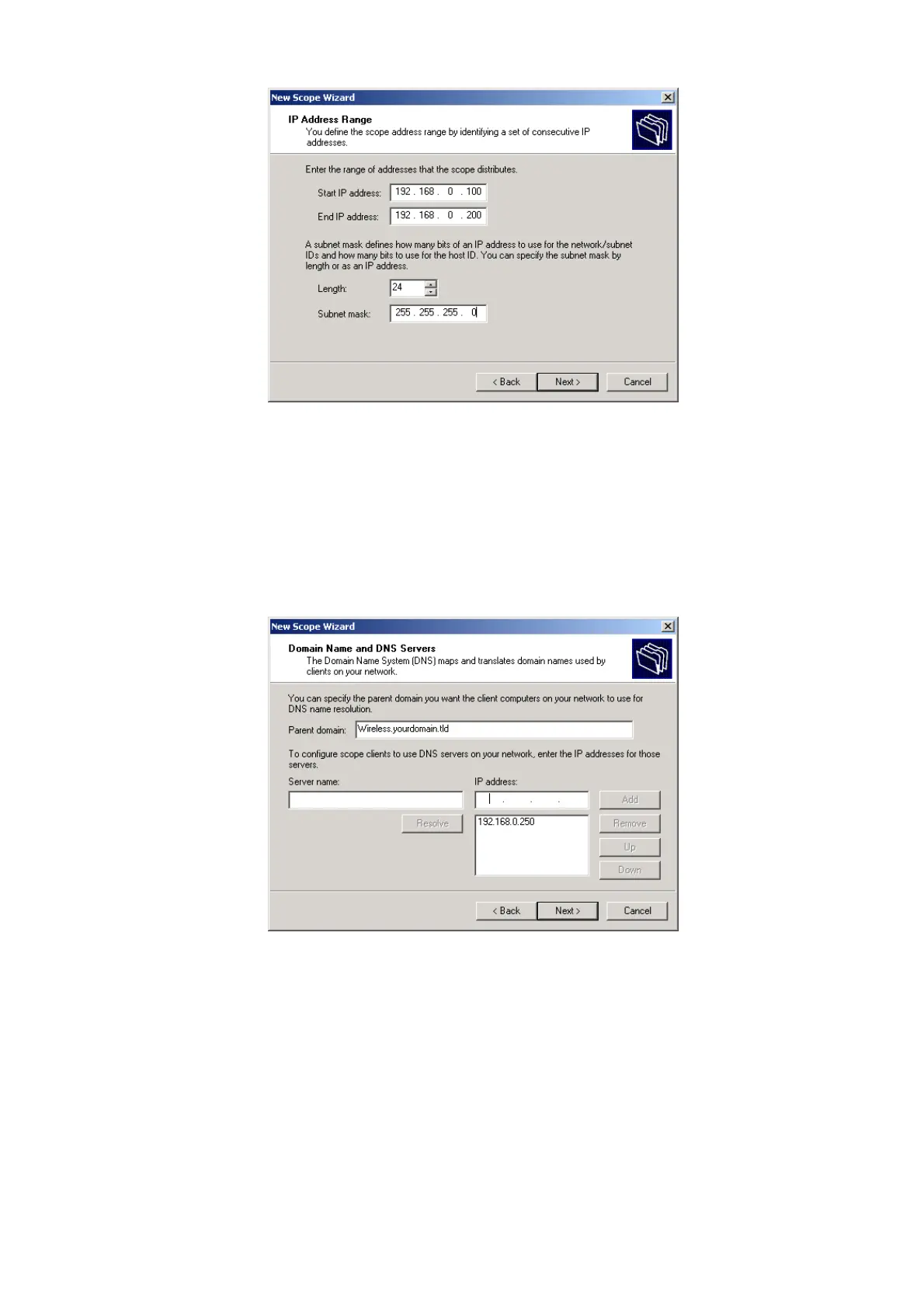

Figure 50: IP Address Screen
6. Add exclusions in the address fields if required. If no exclusions are required, leave it
blank. Click Next.
7. Change the Lease Duration time if preferred. Click Next.
8. Select Yes, I want to configure these options now, and click Next.
9. Enter the router address for the current subnet. The router address may be left blank if
there is no router. Click Next.
10. For the parent domain, enter the domain you specified for the domain controller setup, and
enter the server's address for the IP address. Click Next.
Figure 51: DNS Screen
11. If you don't want a WINS server, just click Next.
12. Select Yes, I want to activate this scope now. Click Next, then Finish.
13. Right-click on the server, and select Authorize. It may take a few minutes to complete.

Linksys LAPN600 Specifications

General

Color	white
Wi-Fi Speed	600 gigabits per second
Frequency Band	2.4 ghz
QoS Traffic Prioritization	no
Wireless Standard	n
Data Encryption	yes
Encryption Type	other, wep, wpa, wpa2
Security Features	rogue ap detection; ssid to vlan mapping; 802.1x supplicant
Ports	rj-45
Bluetooth	no

Weight and Dimensions

Height	1.72 inches
Width	9.33 inches
Net Weight	1.1 pounds
