Linksys LAPN600 User Manual

88

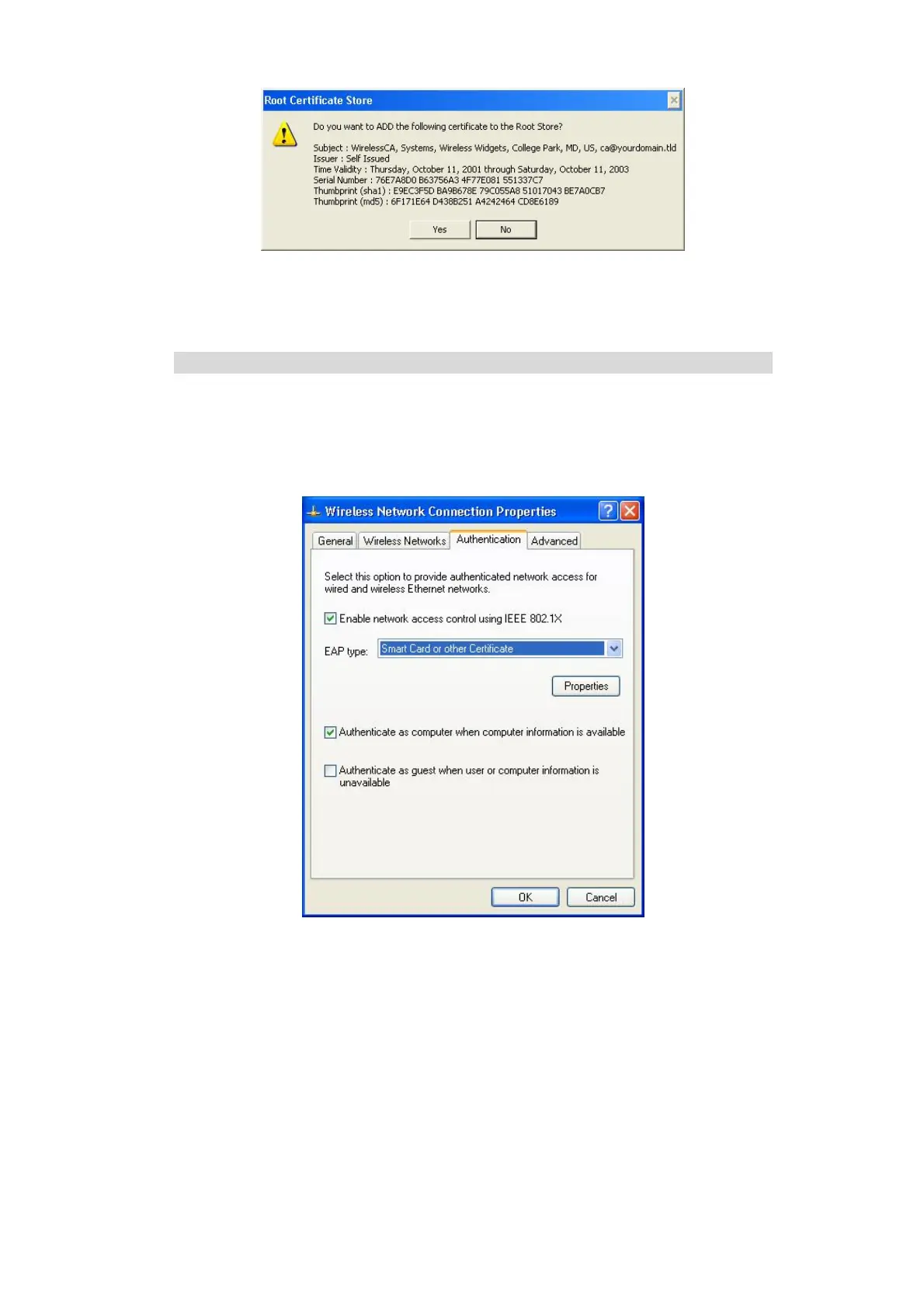

Figure 67: Root Certificate Screen
9. Certificate setup is now complete.
802.1x Authentication Setup
1. Open the properties for the wireless connection, by selecting Start - Control Panel -
Network Connections.
2. Right-click on the Wireless Network Connection, and select Properties.
3. Select the Authentication Tab, and ensure that Enable network access control using IEEE
802.1X is selected, and Smart Card or other Certificate is selected from the EAP type.
Figure 68: Authentication Tab
Encryption Settings
The encryption settings must match the access point’s on the wireless network you wish to join.
• Windows XP will detect any available wireless networks, and allow you to configure each
network independently.

Linksys LAPN600 Specifications

General

Color	white
Wi-Fi Speed	600 gigabits per second
Frequency Band	2.4 ghz
QoS Traffic Prioritization	no
Wireless Standard	n
Data Encryption	yes
Encryption Type	other, wep, wpa, wpa2
Security Features	rogue ap detection; ssid to vlan mapping; 802.1x supplicant
Ports	rj-45
Bluetooth	no

Weight and Dimensions

Height	1.72 inches
Width	9.33 inches
Net Weight	1.1 pounds
