19

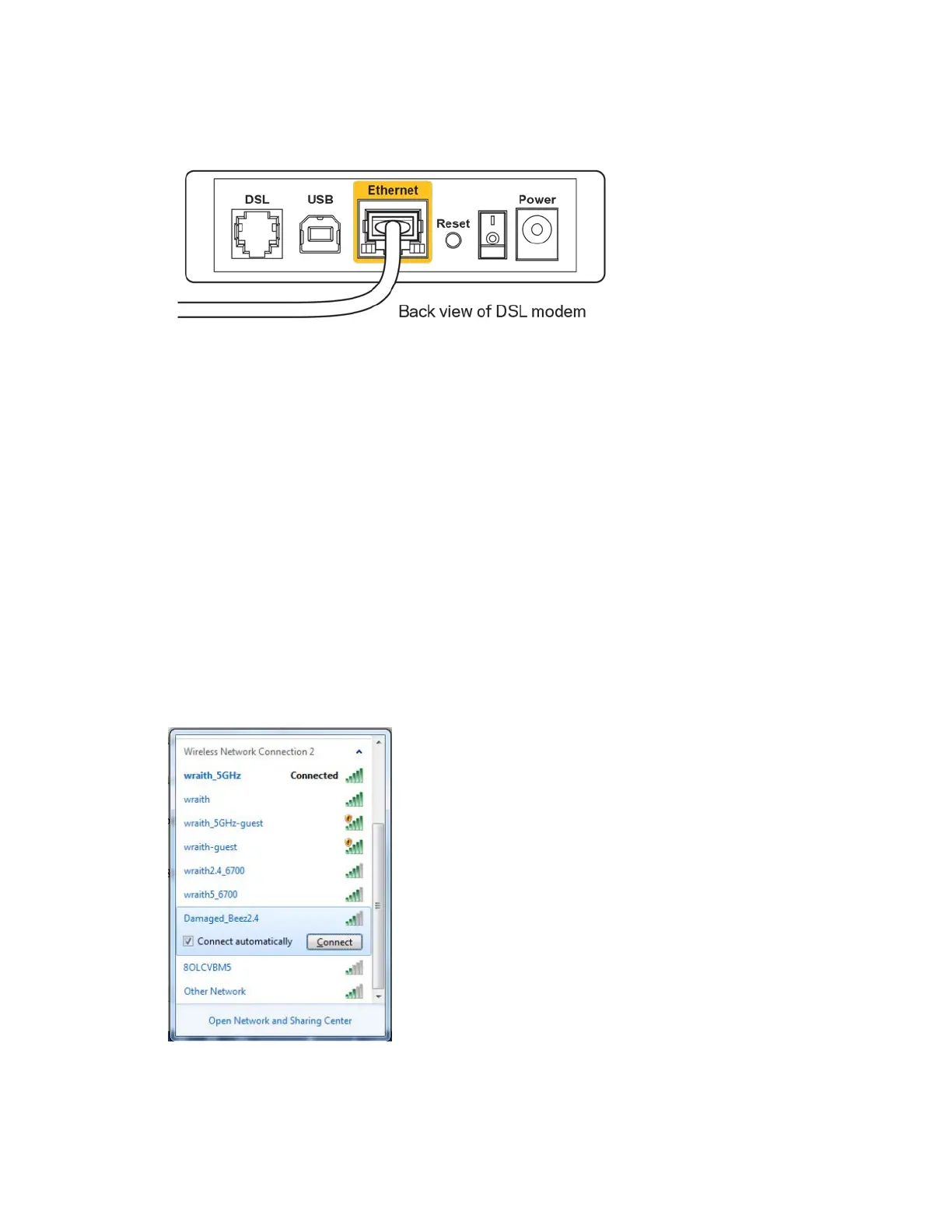

If your Internet service is DSL, make sure that the DSL phone line is connected to the modem’s
DSL port.
If your computer was previously connected to your modem with a USB cable, disconnect the
USB cable.
Install the router again.
Cannot access your router
message
To access your router, you must be connected to your own network. If you currently have wireless
Internet access, the problem may be that you have accidentally connected to a different wireless
network.
To fix the problem on Windows computers, do the following*:
1. On your Windows desktop, click on the wireless icon in the system tray. A list of available
networks will appear.
2. Click your own network name. Click Connect. In the example below, the computer was
connected to another wireless network named wraith_5GHz. The wireless network name of the
Linksys EA7500 router, Damaged_Beez2.4 in this example, is shown selected.
3. If you are prompted to enter a network security key, type your password (security key) into the
network security key field. Click OK.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Linksys MAX-STREAM EA7500 and is the answer not in the manual?

Linksys MAX-STREAM EA7500 Specifications

General IconGeneral
Wi-Fi Technology802.11ac
Wi-Fi SpeedAC1900 (N600 + AC1300)
USB Ports1x USB 3.0, 1x USB 2.0
Processor1.4 GHz Dual-Core
BeamformingYes
MU-MIMOYes
RAM256 MB
Flash Memory128 MB
Wi-Fi BandsDual-band (2.4 GHz and 5 GHz)
Ethernet Ports1x Gigabit WAN, 4x Gigabit LAN
Antennas3x External Antennas
Security FeaturesWPA2
Weight1.3 lbs (0.59 kg)
