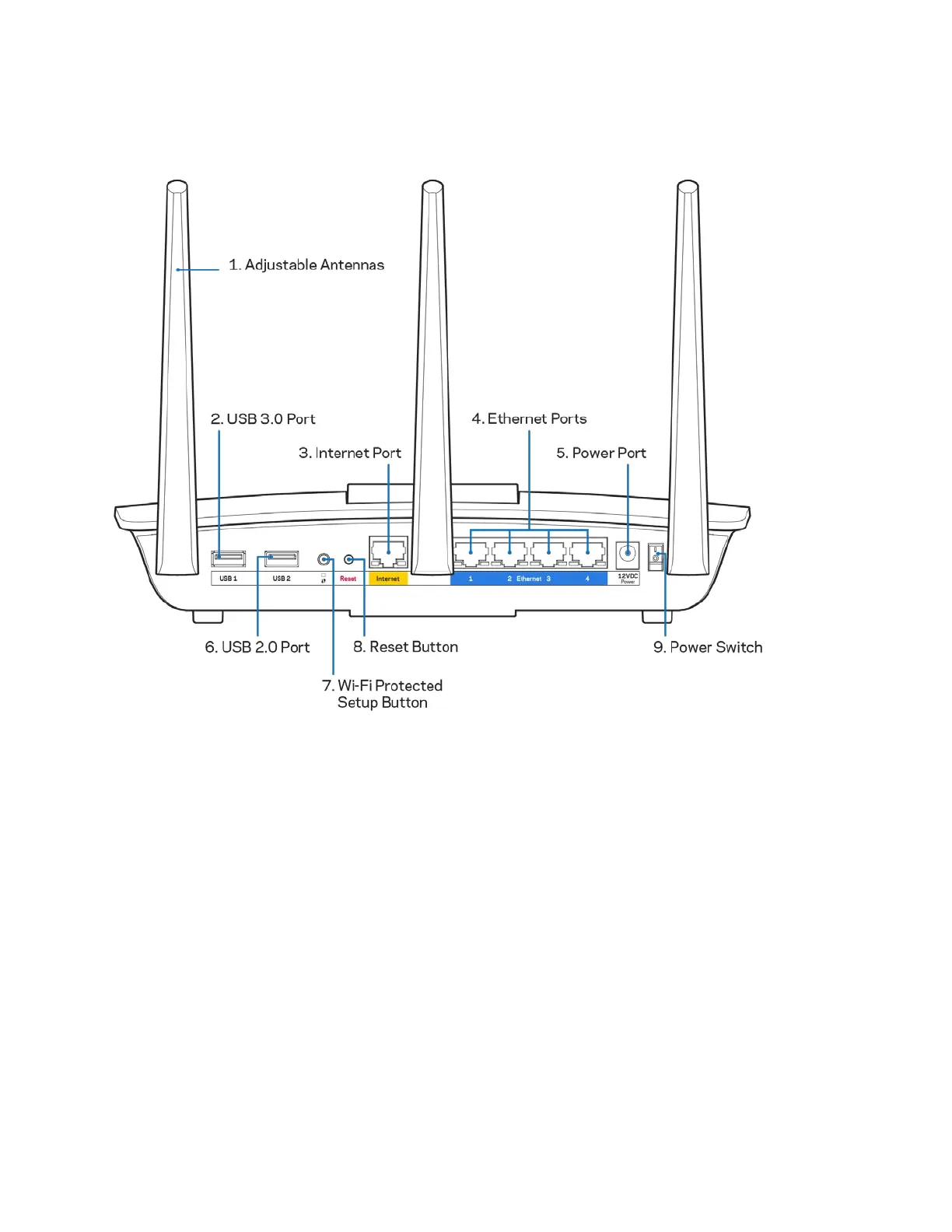

Back view
Adjustable antennas (1)
—For best performance, position the antennas vertically as shown in the
drawing.
USB 3.0 port (2)—Connect and share a USB drive or USB printer on your network or on the Internet.
Internet port (3)—Connect an Ethernet cable to this yellow gigabit (10/100/1000) port, and to a
broadband Internet cable/DSL or fiber modem.
Note—For best performance, use CAT5e or higher rated cables on the Internet ports.
Ethernet ports (4)—Connect Ethernet cables to these blue gigabit (10/100/1000) ports, and to wired
devices on your network.
Note—For best performance, use CAT5e or higher rated cables on the Ethernet ports.
Power port (5)—Connect the included AC power adapter.
