Linksys RE6700 User Manual




6

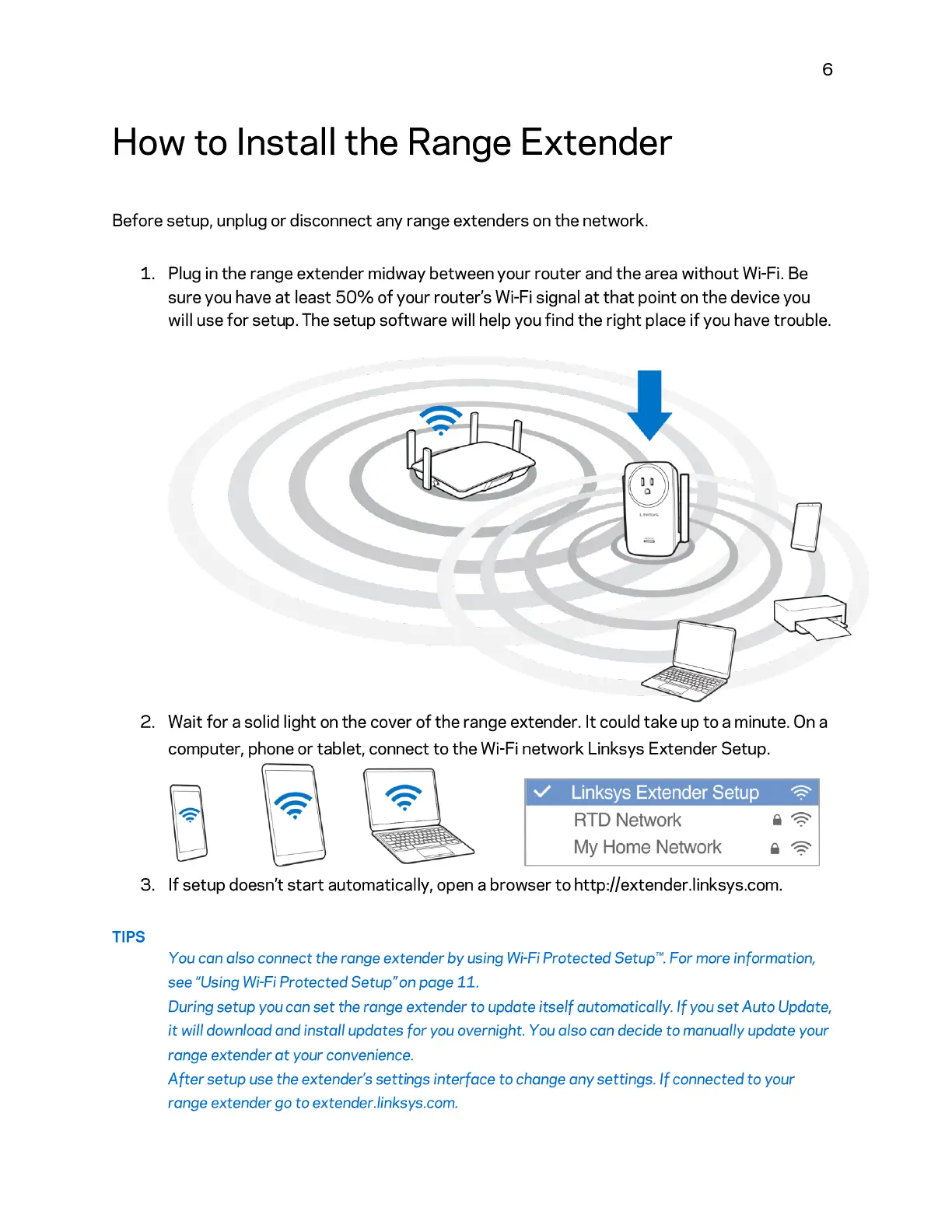

How to Install the Range Extender
Before setup, unplug or disconnect any range extenders on the network .
1. Plug in
the range extender midway between your router and the area without Wi-Fi. Be
sure you have at least 50% of your router's Wi-Fi signal at that point on the device you
will use
for setup. The setup software will help you find the right place if you have trouble.
0
2. Wait for a solid light on the cover of the range extender. It could take up to a minute. On a
computer, phone
or tablet, connect to the Wi-Fi network Linksys Extender Setup.
v Linksys Extender Setup '9'
RTD Network
My Home Network
3. If setup doesn't start automatically, open a browser to http ://extender.linksys.com.
TIPS
You can a/so connect the range extender by using Wi-Fi Protected Setup'". For more information,
see "Using Wi-Fi Protected Setup"
on page 11.
During setup you can set the range extender to update itself automatically. If you set Auto Update,
it will download and install updates for you overnight. You a/so can decide to manually update your
range extender
at your convenience.
After setup use the extender's settings interface to change any settings. If connected to your
range extender go
to extender.linksys.com.

Linksys RE6700 Specifications

General

Ethernet LAN	Yes
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Networking standards	IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Gigabit Ethernet
WLAN data transfer rates supported	867 Mbit/s
Product color	White
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
