56
Chapter 6: Set Up and Configure the Router

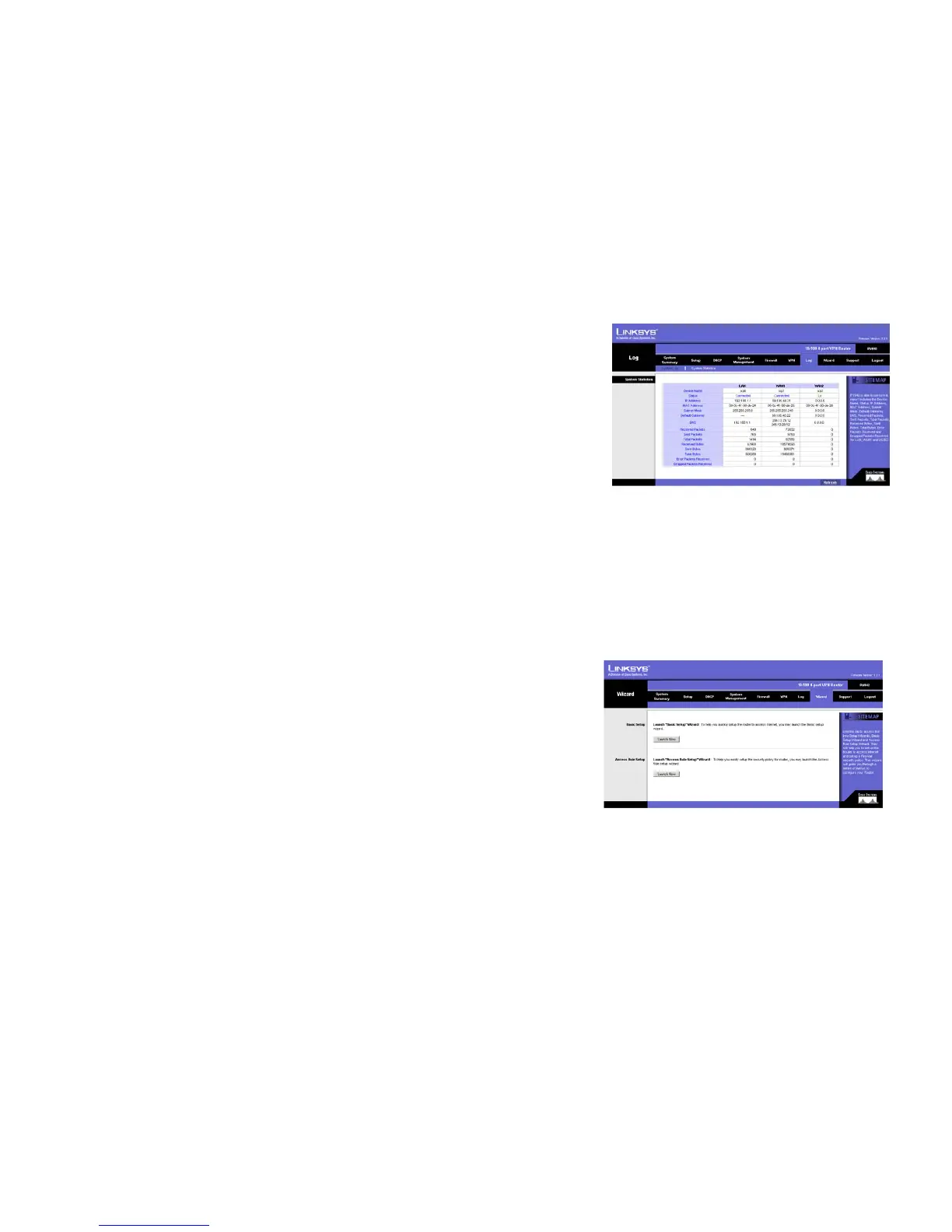

Log Tab - System Statistics
10/100 4-Port VPN Router
Log Tab - System Statistics
This tab displays the system statistics including the Device Name, Status, IP Address, MAC Address, Subnet
Mask, Default Gateway, Received Packets, Sent Packets, Total Packets, Received Bytes, Sent Bytes, Total Bytes,
Error Packets Received and Dropped Packets Received for LAN, WAN1 and WAN2. See Figure 6-51.
Wizard Tab
Use this tab to access two Setup Wizards, the Basic Setup Wizard and the Access Rule Setup Wizard. They will
help you to set up the Router to access the Internet and set up a Firewall security policy. The wizard will guide
you through a series of menus to configure your Router. See Figure 6-50.
Basic Setup
1. Click the Launch Now button to run the Basic Setup Wizard to quickly set up the Router to access the
Internet.
Figure 6-49: System Statistics
Figure 6-50: Wizard
