57
Chapter 6: Set Up and Configure the Router
Wizard Tab
10/100 4-Port VPN Router

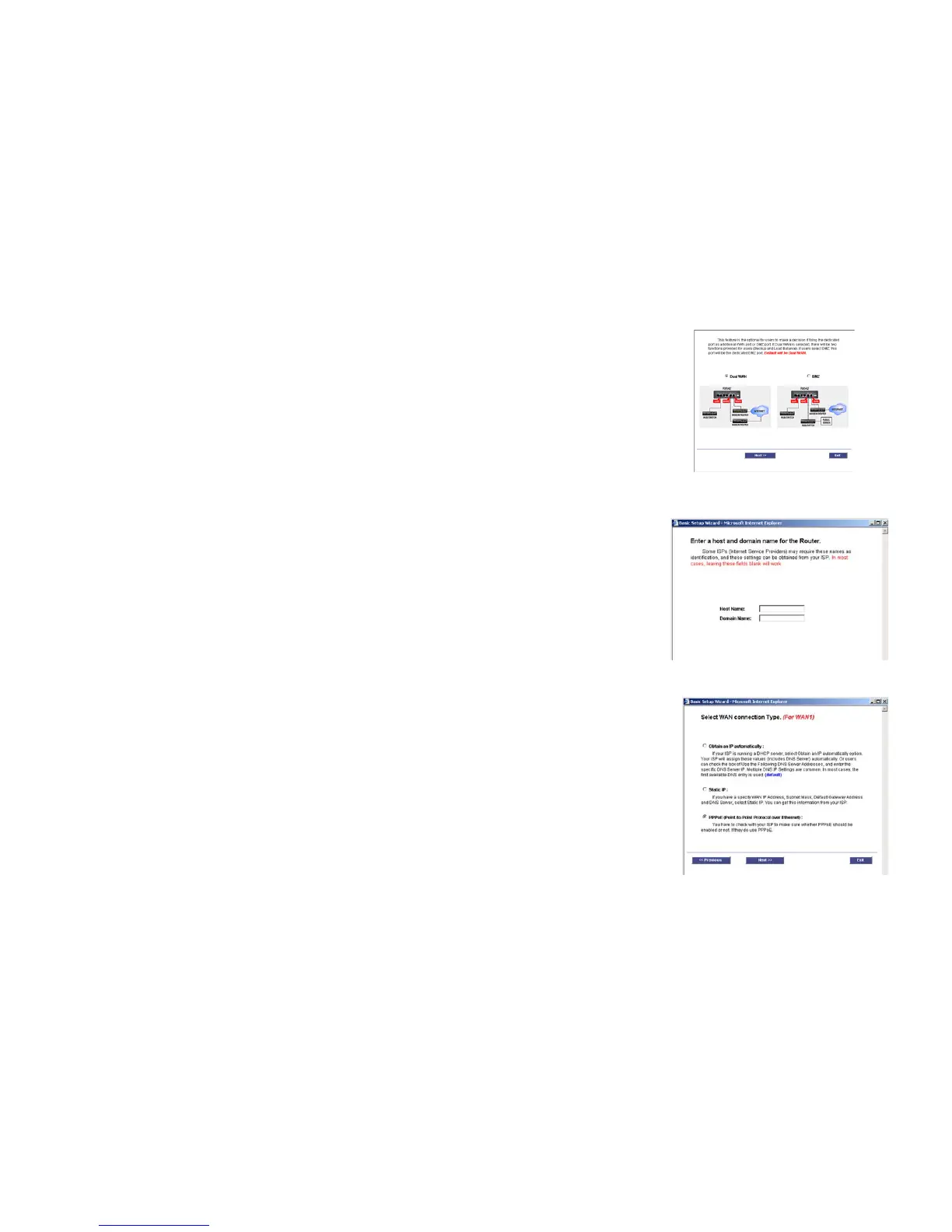

2. The first screen that appears is Figure 6-51. Choose whether the WAN2 (DMZ/Internet) port will be used as a
WAN (Internet) port or DMZ port. Select Dual WAN to use the port as a WAN port or select DMZ to use the port
as a DMZ port. Click Next to continue. Click Exit if you want to exit the wizard.
3. The next screen is Figure 6-52. Your Internet Service Provider (ISP) may require a host and domain name. If
your ISP requires them, enter the Host Name in the field, and the Domain Name in the field. Click Next to
continue. Click Previous if you want to return to the previous screen. Click Exit if you want to exit the wizard.
4. The next screen, Figure 6-53, is for selecting the WAN (or Internet) Connection Type for your WAN1 (Internet)
port. Select Obtain an IP automatically, Static IP, or PPPoE, depending on which type is used by your ISP. Click
Next to continue. Click Previous if you want to return to the previous screen. Click Exit if you want to exit the
wizard.
Figure 6-51: Dual WAN or DMZ
Figure 6-52: Host and Domain Name
Figure 6-53: WAN Connection Type
