61
Chapter 6: Set Up and Configure the Router
Wizard Tab
10/100 4-Port VPN Router
Access Rule Setup
1. Click the Launch Now button to run the Access Rule Wizard to help you easily set up the Firewall security
policy for the Router.
2. The first screen to appear is Figure 6-62. This screen explains the Access Rules. Click Next to continue. Click
Exit if you want to exit the wizard.
3. The next screen to appear is shown in Figure 6-63. Select Allow or Deny for the action. Click Next to
continue. Click Previous if you want to return to the previous screen. Click Exit if you want to exit the wizard.
4. The next screen to appear is shown in Figure 6-64. Select the service from the drop-down menu that will be
allowed or denied from the Service menu. Click Next to continue. Click Previous if you want to return to the
previous screen. Click Exit if you want to exit the wizard.

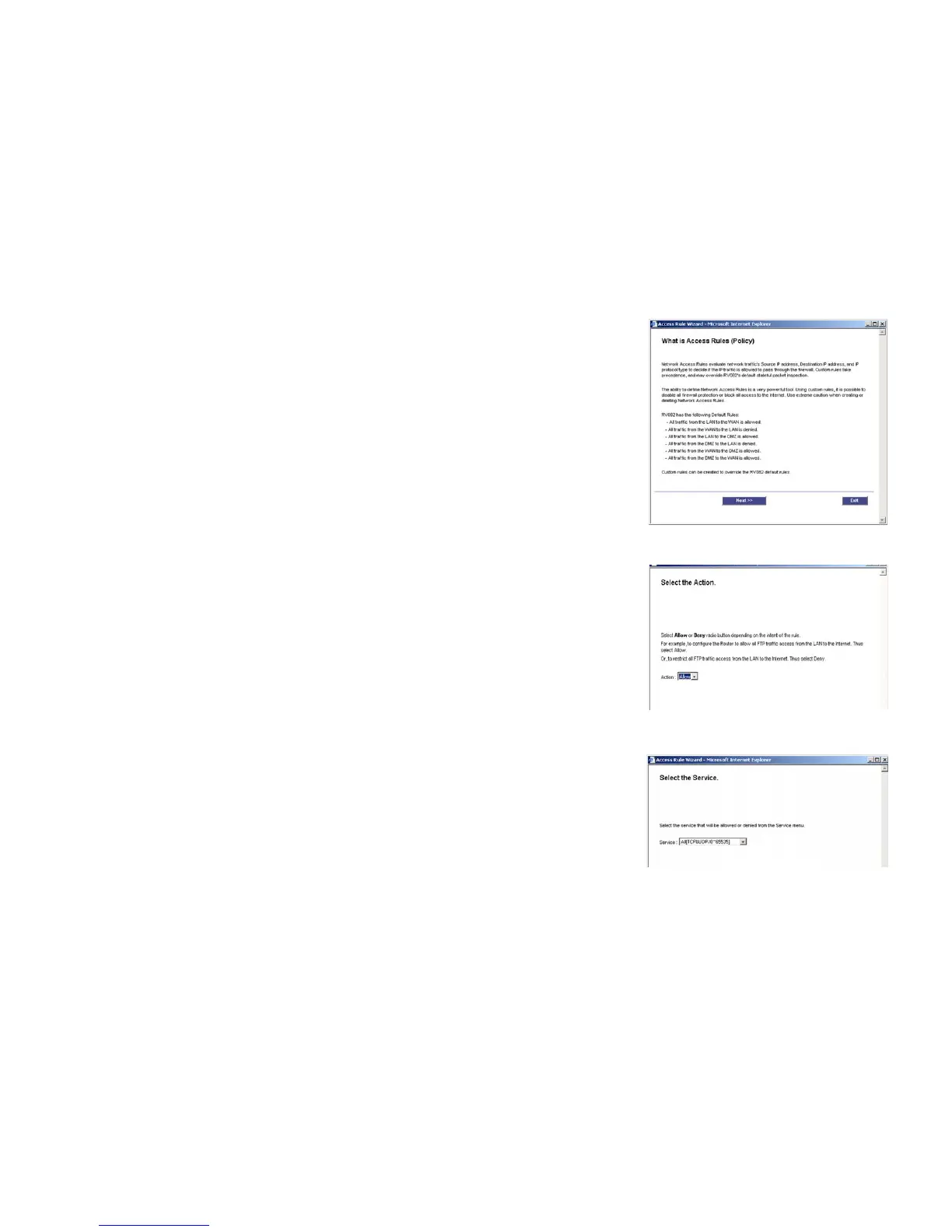

Figure 6-62: Access Rules Policy
Figure 6-63: Select the Action
Figure 6-64: Select the Service
