Chapter 2: Product Overview
16-Port and 24-Port 10/100 Switches
Chapter 2:
Product Overview
16-Port and 24-Port 10/100 Switches
The 16-Port and 24-Port 10/100 Switches differ in number of LEDs and
ports. Pictured here is the 16-Port Switch; however, the 24-Port Switch is
similar in form.
Front Panel
The LEDs are located on the front panel of the Switch.

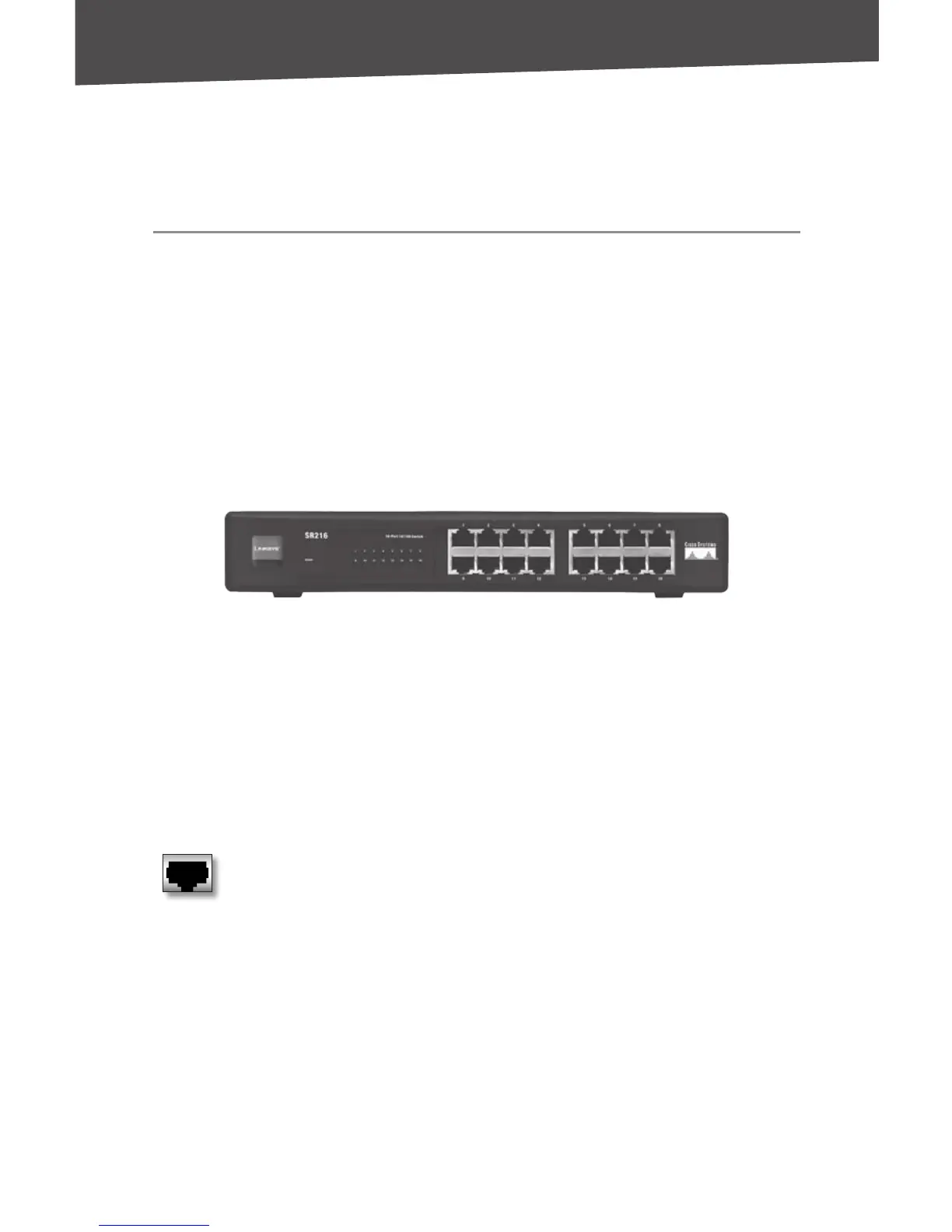

Front Panel of the 16-Port Switch
System (Green) This LED lights up and remains lit when the Switch is
powered on.
1-16 or 1-24
(Green) Each LED lights up when a connection is made
through its corresponding port. It flashes when the corresponding port
is active.
1-16 or 1-24 These ports connect the Switch to network
devices, such as computers.
