Chapter 2: Product Overview
16-Port and 24-Port 10/100 Switches
Placement Options
There are three ways to physically install the Switch:
Set the Switch on its four rubber feet.
Mount the Switch in a standard rack (1U high).
Hang the Switch on a wall using its wall-mount slots.
Rack-mount
To rack-mount the Switch, follow these instructions:
The Switch has four mounting holes on each side. Screw an included
mounting bracket into each side.

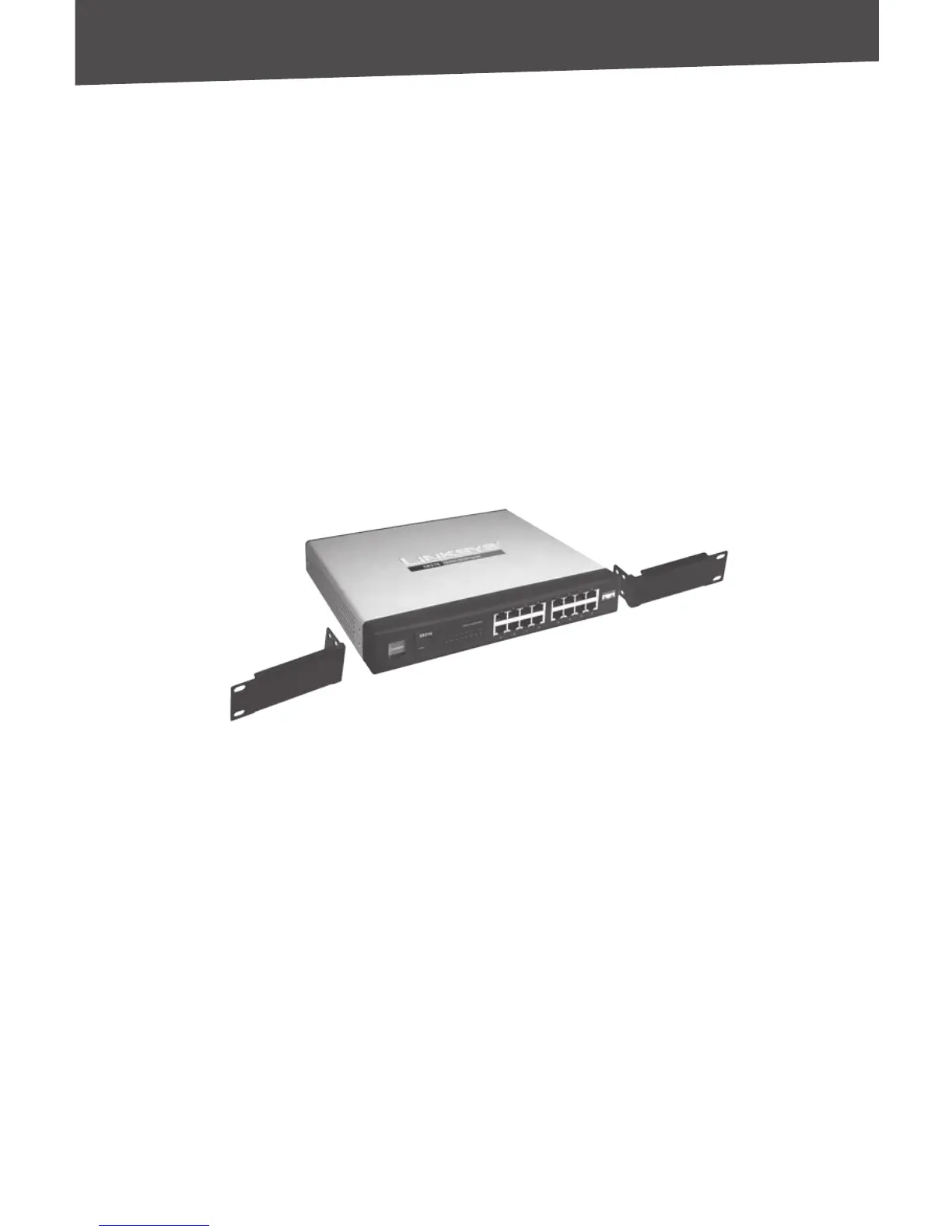

Rack-mounting the Switch
Lift the Switch into the rack, and secure the brackets with additional
screws (not included).
•
•
•
1.
2.
