Linksys SR216 User Manual

9
16-Port and 24-Port 10/100 Switches
Chapter 3: Connect the Switch
Chapter 3:
Connect the Switch
Overview
This chapter will explain how to connect network devices to the Switch.

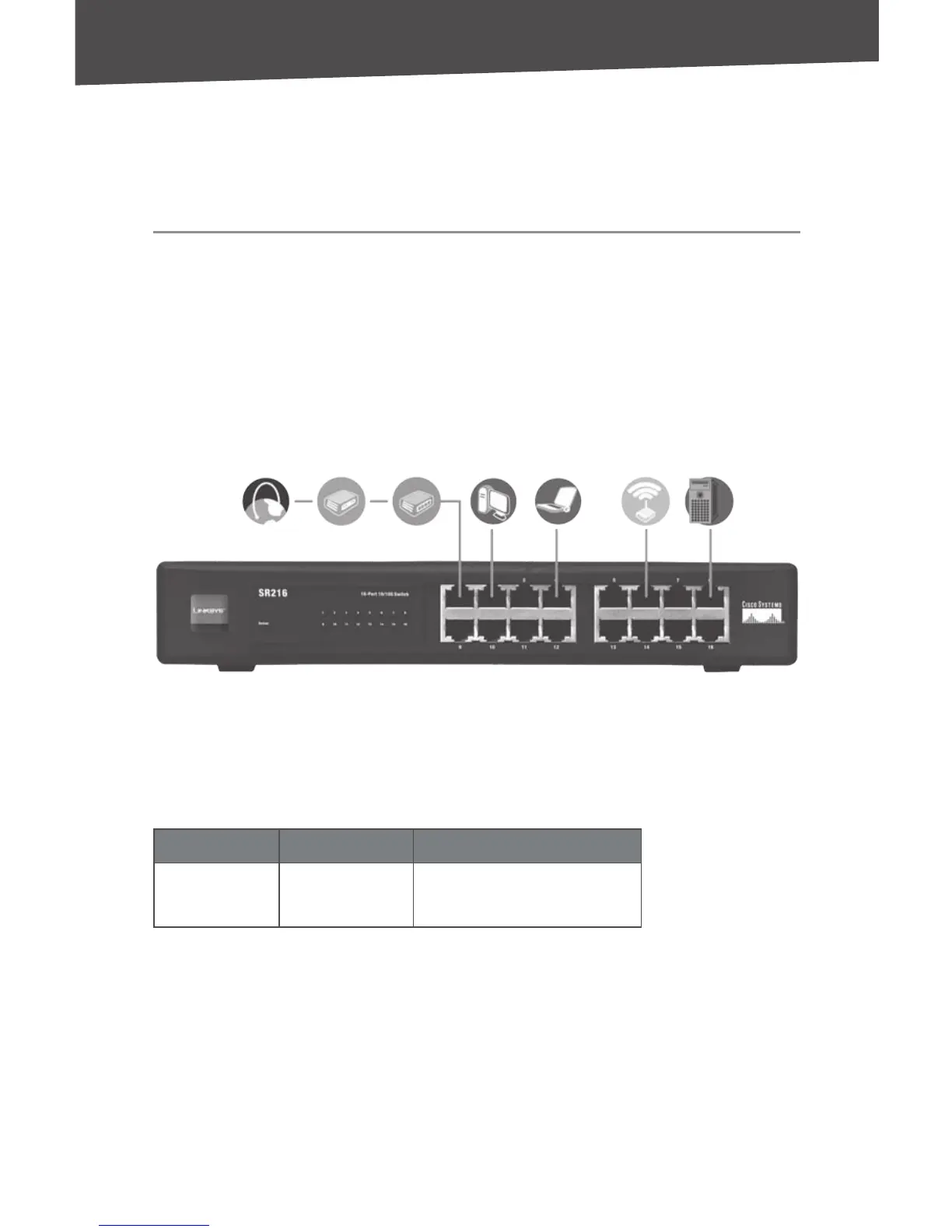

The application diagram shown here is an example of a typical network
configuration.
Internet
Cable/DSL
Modem Router Desktop Notebook
Wireless
Access
Point Server
Application Diagram
When you connect your network devices, make sure you don’t exceed
the maximum cabling distances, which are listed in the following table:
Maximum Cabling Distances
From To Maximum Distance
Switch Switch 100 meters (328 feet)
Switch Computer 100 meters (328 feet)

Linksys SR216 Specifications

Power

power input	110V AC
internal power	3.3V/3A

Operating Environment

operating temperature	32 to 104ºF (0 to 40ºC)
storage temperature	-40 to 158ºF (-40 to 70ºC)
operating humidity	20 to 95% noncondensing
storage humidity	5 to 90% noncondensing

Weight and Dimensions

unit dimensions	11" x 1.75" x 9.45" (279 x 45 x 240 mm)
unit weight	3.31 lb (1.5 kg)
