Chapter 2: Getting to Know the Switch
Overview
WebView Switches
Chapter 2: Getting to Know the Switch
Overview
The Switches differ in number and types of LEDs and ports. The front panel of each Switch is displayed on one of
the following pages. The back panel is the same on all five models.
SRW2008 - Front Panel
The Switch's LEDs and ports are located on the front panel.
LEDs
System Green. The SYSTEM LED lights up to indicate that the Switch is powered on.
Link/Act Green. The LINK/ACT LED lights up to indicate a functional network link through the
corresponding port (1 through 8) with an attached device. It flashes to indicate that the
Switch is actively sending or receiving data over that port.
Gigabit Orange. The Gigabit LED lights up to indicate a 1000Mbps connection on the
corresponding port (1 through 8).

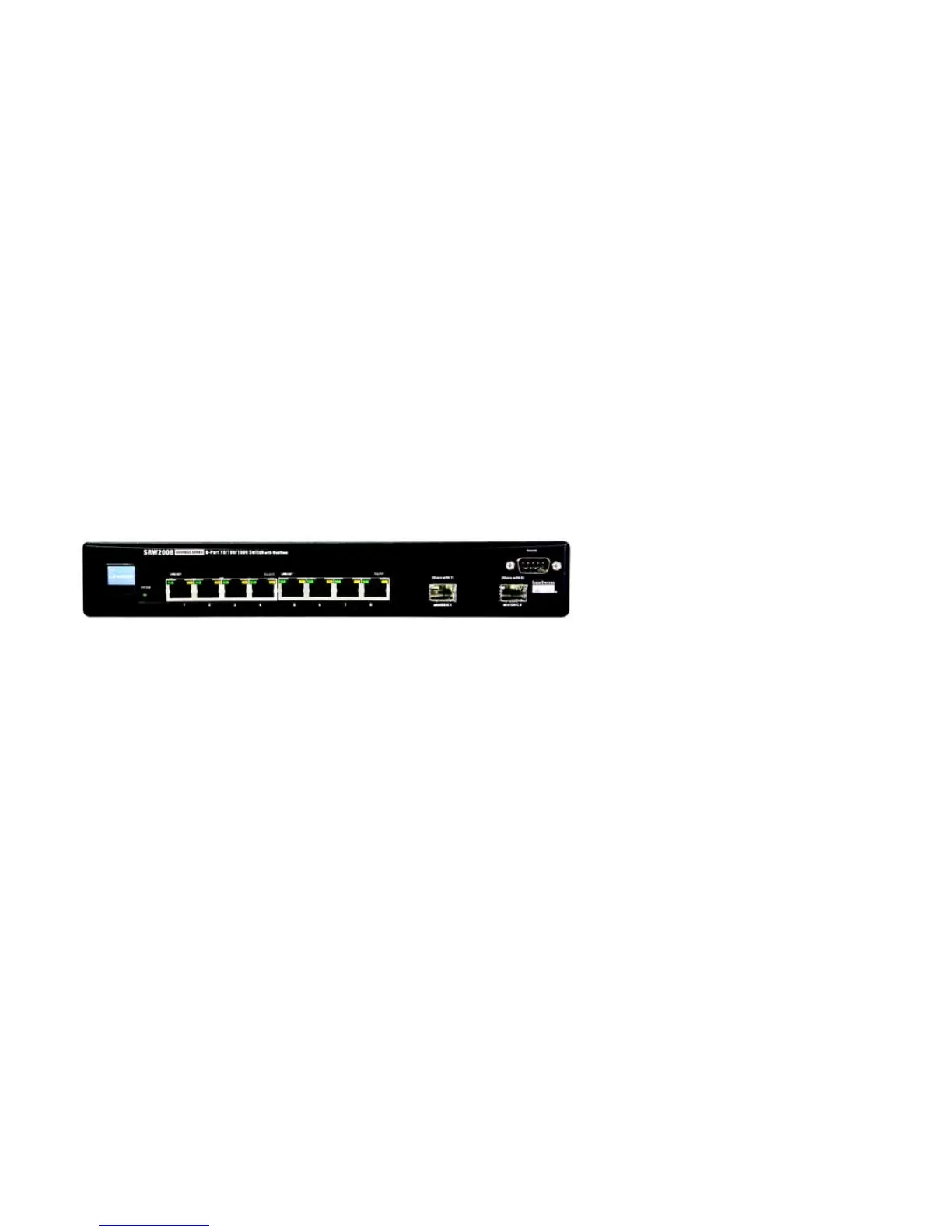

Figure 2-1: Front Panel of the SRW2008
